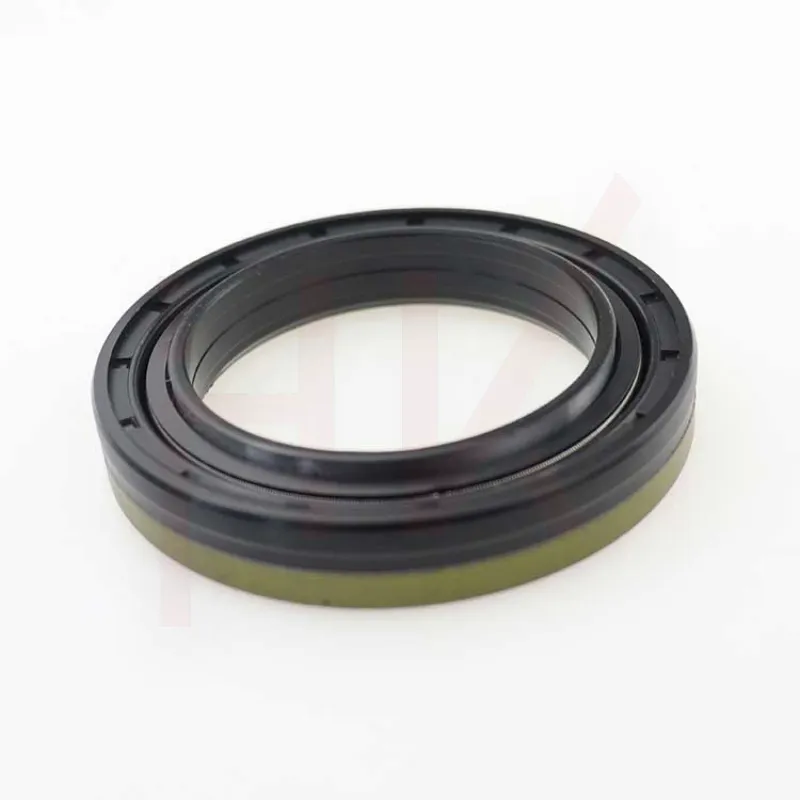

ZF 0734319723 RWDR Cassette Hub Oil Seal 75x100x13/14.5mm

Introduction to Advanced Sealing Technology

In the demanding world of industrial machinery and heavy-duty vehicles, the integrity of rotating components is paramount. This integrity hinges significantly on the performance of critical sealing elements, particularly hub oil seals. One such high-performance solution is the RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5. This advanced sealing component is engineered to provide superior protection against contaminants while effectively retaining lubricants within complex hub assemblies, ensuring extended operational lifespan and minimizing costly downtime. Its design leverages cutting-edge materials and manufacturing precision to meet the rigorous demands of modern industrial applications, specifically those utilizing ZF transmissions and axle systems.

This article delves into the technical intricacies, manufacturing excellence, application benefits, and strategic importance of these specialized cassette seals, providing a comprehensive resource for B2B decision-makers and technical professionals.

Industry Trends in High-Performance Sealing Solutions

The industrial sealing market is currently undergoing significant transformation, driven by demands for increased efficiency, reduced environmental impact, and enhanced durability in increasingly harsh operating conditions. Key trends impacting the development and adoption of components like the RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 include:

Advanced Material Science: A shift towards high-performance elastomers (e.g., FKM, HNBR) and PTFE composites that offer superior temperature resistance, chemical compatibility, and reduced friction, pushing service life boundaries.
Integrated Cassette Designs: The increasing prevalence of fully integrated cassette seals, which combine multiple sealing lips, a protective sleeve, and sometimes even a wear sleeve into a single, pre-assembled unit. This design simplifies installation, prevents damage during mounting, and provides multi-stage protection against aggressive contaminants.
Sustainability and Energy Efficiency: Development of low-friction seal designs that contribute to fuel economy in vehicular applications and reduce energy consumption in industrial machinery. Manufacturers are also focusing on more environmentally friendly production processes and recyclable materials.
Digitalization and Predictive Maintenance: While less common for passive components like seals, the trend towards embedding sensors (for temperature, pressure, wear) into larger assemblies impacts seal design indirectly, demanding seals that can withstand conditions relevant to sensor operation and provide consistent performance over long intervals for predictive maintenance models.
Miniaturization and Standardization: While cassette seals themselves are robust, there's a drive for more compact designs that don't compromise performance, alongside standardization to ensure interchangeability and global availability for common applications like ZF components.

These trends collectively push the envelope for seal manufacturers, driving innovation in both design and material selection to meet the evolving requirements of industries reliant on robust, long-lasting sealing solutions.

Technical Specifications and Design Principles

The RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 is a prime example of advanced sealing technology, specifically engineered for critical applications. Its designation reveals crucial design characteristics:

RWDR (Radial Shaft Seal with Double Lip): This indicates a common radial shaft seal configuration, typically featuring a primary sealing lip for fluid retention and a secondary dust lip for exclusion of external contaminants.
Cassette Design: This is a key differentiating feature. A cassette seal is an integrated unit, comprising multiple sealing lips (often 3 or more), a protective metal casing, and sometimes an integrated wear sleeve. This assembly creates a labyrinthine path for contaminants, significantly enhancing exclusion capabilities. The integrated design also simplifies installation by eliminating the need for separate sleeve components and reducing the risk of seal lip damage during mounting.
ZF 0734319723: This is a specific Original Equipment Manufacturer (OEM) part number from ZF Friedrichshafen AG, a global technology company supplying systems for passenger cars, commercial vehicles, and industrial technology. This indicates that the seal is either an OEM component or a precisely engineered aftermarket equivalent designed to meet ZF's stringent performance and compatibility standards for specific hub or axle applications.
7510013/14.5: These are the critical dimensions of the seal:
- 75 mm: Inner Diameter (Shaft Diameter).
- 100 mm: Outer Diameter (Housing Bore Diameter).
- 13/14.5 mm: Width or Axial Height. The two values often refer to the effective sealing width and the total width of the cassette unit, including its protective housing.

Typical Product Specifications

Parameter	Specification for ZF 0734319723	Industry Standard Range
Inner Diameter (ID)	75 mm	Common sizes from 20 mm to 300 mm
Outer Diameter (OD)	100 mm	Corresponds to housing bore
Width (W)	13/14.5 mm	Dependent on cassette design, typically 10-25 mm
Material (Primary Lip)	Nitrile Rubber (NBR) or Fluoroelastomer (FKM)	NBR, FKM, HNBR, ACM, Silicone, PTFE
Operating Temperature	-30°C to +100°C (NBR), -20°C to +200°C (FKM)	Depends heavily on material selection
Max. Pressure Resistance	0.5 bar (dynamic), 1.0 bar (static)	Standard radial seals generally low-pressure
Max. Shaft Speed	Up to 10 m/s	Typical range 5-30 m/s
Housing Material	Coated Steel (e.g., carbon steel, stainless steel)	Carbon steel, stainless steel, sometimes engineering plastics

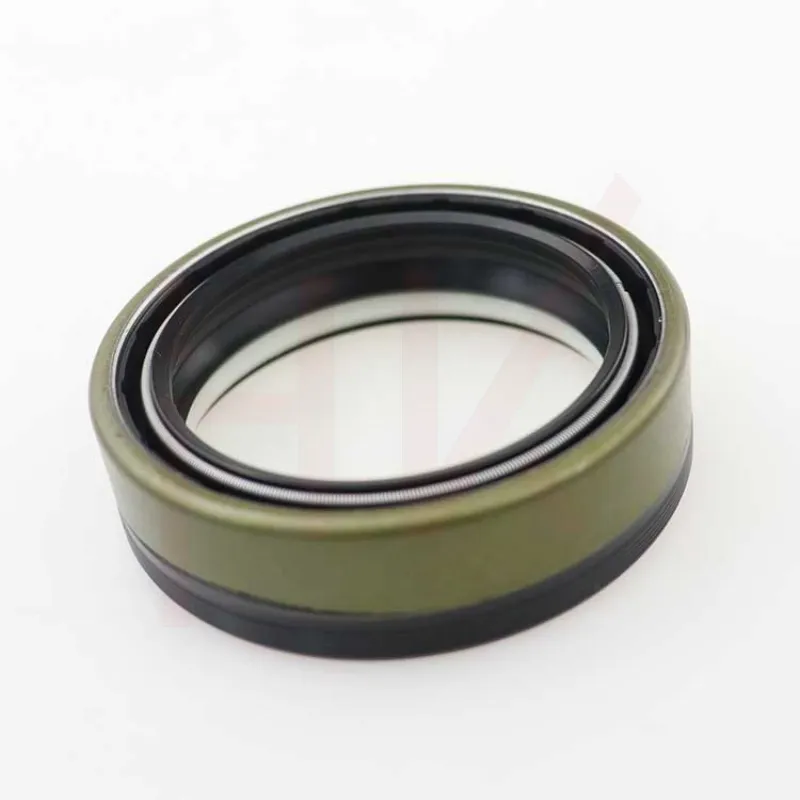

ZF 0734319723 RWDR Cassette Hub Oil Seal 75x100x13/14.5mm

The selection of materials like NBR (Nitrile Butadiene Rubber) or FKM (Fluoroelastomer) is critical, depending on the specific operating environment. NBR offers excellent resistance to petroleum-based oils and fuels, making it suitable for many automotive and industrial applications at moderate temperatures. FKM, with its superior chemical and high-temperature resistance, is preferred for more aggressive media or higher thermal loads, common in heavy-duty commercial vehicle hubs experiencing significant heat generation.

Manufacturing Process Flow

The production of a high-quality RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 is a sophisticated process involving precise engineering and rigorous quality control. The general manufacturing steps include:

Manufacturing Process Steps:

Material Selection & Compounding: Based on application requirements (temperature, media, speed), the appropriate elastomer (e.g., NBR, FKM) and metal housing material are selected. Elastomers are compounded with fillers, plasticizers, and curing agents to achieve desired physical properties.
Metal Component Fabrication: The metal casing and any internal stiffeners are typically stamped or deep-drawn from precision sheet metal (e.g., carbon steel, stainless steel). These components undergo cleaning and surface treatments (e.g., phosphating, galvanizing) for corrosion resistance and enhanced bond strength with the elastomer.
Elastomer Molding (Compression/Injection): The compounded rubber is precision molded (often via compression or injection molding) onto the prepared metal components. This forms the primary and secondary sealing lips, ensuring exact profiles and critical lip load for effective sealing.
Vulcanization (Curing): The molded assembly is subjected to specific temperature and pressure conditions to cross-link the rubber polymer chains, imparting its final elastic and mechanical properties. This process is crucial for achieving the specified hardness, tensile strength, and heat resistance.
Precision Trimming & Finishing: Excess rubber (flash) is precisely removed, and the seal edges are trimmed to ensure smooth, defect-free sealing surfaces. Special coatings may be applied to the seal lips to reduce friction during initial run-in.
Multi-Lip & Sleeve Assembly (for Cassette Seals): For cassette seals, multiple individual sealing lips and potentially an integrated wear sleeve are carefully assembled into the metal housing, forming the complete integrated unit. This often involves automated precision assembly to maintain tight tolerances.
Quality Control & Testing: Throughout the process, and especially after final assembly, seals undergo stringent quality checks. These include dimensional inspection, visual inspection for defects, material hardness testing, tensile strength tests, and functional tests such as leakage tests (e.g., air leak test, oil leak test), friction torque measurements, and simulated endurance tests under varying temperature and speed conditions. Adherence to standards like ISO 6194-1 (for radial shaft seals) and internal ZF specifications (for RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5) is paramount.
Packaging: Seals are carefully packaged to prevent damage during transit and storage, ensuring they arrive in optimal condition for installation.

This meticulous process, often adhering to automotive quality management standards like IATF 16949 (derived from ISO 9001), ensures the production of seals that offer reliable service life, typically ranging from 5,000 to over 10,000 hours in heavy-duty applications, depending on operating conditions and maintenance practices. The emphasis on precision and adherence to international standards like ISO and ANSI for dimensions and material properties ensures consistent quality and performance.

Technical Advantages of Cassette Seals

The cassette design offers several significant technical advantages over conventional single-lip or double-lip radial shaft seals, particularly for demanding applications where the RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 excels:

Superior Contamination Exclusion: The multi-lip design, often combined with a labyrinth seal effect and an integrated wear sleeve, provides an exceptional barrier against dust, dirt, mud, and water ingress. This is crucial for preserving bearing and lubricant integrity in harsh environments like construction sites, agricultural fields, and mining operations.
Extended Service Life: By effectively preventing contamination and retaining lubricant, cassette seals drastically extend the service life of bearings and other rotating components. The integrated wear sleeve protects the shaft from wear, which is a common cause of failure in conventional seals, further contributing to longevity. This results in reduced maintenance intervals and lower overall operating costs.
Reduced Friction and Energy Saving: While more complex, modern cassette seals are designed to optimize lip geometry and material selection to minimize friction. Lower friction not only contributes to energy efficiency (e.g., better fuel economy in vehicles) but also reduces heat generation at the sealing interface, preserving the elastomer's life.
Corrosion Resistance: The robust metal casing, often with protective coatings, provides excellent resistance to corrosion, ensuring the structural integrity of the seal assembly even in corrosive atmospheres or when exposed to road salts and chemicals. Material selection for the elastomer also dictates resistance to specific corrosive media.
Simplified and Reliable Installation: The pre-assembled, integrated unit eliminates the need for precise alignment of multiple components and the risk of damaging individual seal lips during installation. This "plug-and-play" nature reduces installation errors, saving labor time and ensuring consistent sealing performance from the outset.
Optimized for Specific OEM Specifications: Seals like the RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 are meticulously designed to meet the exact specifications of OEM equipment (ZF in this case), ensuring perfect fit, form, and function, which is critical for maintaining vehicle warranty and performance.

Comparative Performance: Cassette vs. Conventional Seals

Feature	Cassette Seal (e.g., ZF 0734319723)	Conventional Single/Double Lip Seal
Contamination Protection	Excellent (Multi-lip, labyrinth, integrated wear sleeve)	Good (Single/double lip, reliant on shaft finish)
Lubricant Retention	Superior (Multiple lips, robust design)	Good (Primary lip function)
Service Life	Extended (Often 2x-3x longer than conventional)	Standard (Limited by shaft wear, contamination)
Installation Ease	Very High (Pre-assembled unit, less error-prone)	Moderate (Requires careful alignment, risk of lip damage)
Shaft Wear Protection	Excellent (Integrated wear sleeve protects actual shaft)	Minimal (Seal lip directly contacts shaft)
Cost (Initial)	Higher	Lower
Cost (Total Ownership)	Lower (Reduced downtime, extended component life)	Higher (More frequent replacement, potential component damage)

These advantages translate directly into tangible benefits for operators and maintenance managers, including reduced operational costs, increased equipment uptime, and enhanced safety.

Application Scenarios and Target Industries

The robust design and superior performance of the RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 make it indispensable across a wide array of heavy-duty industrial and commercial applications. Its specific ZF OEM part number highlights its primary integration into systems manufactured by ZF, a leader in driveline and chassis technology.

Key Application Areas:

Heavy-Duty Commercial Vehicles: Essential for wheel hubs and axles in trucks, buses, and specialized commercial vehicles that utilize ZF axle systems or transmissions. These seals prevent grease leakage and protect wheel bearings from road grime, water, and salt, critical for long-haul operations and urban transport alike.
Off-Highway Equipment: Widely used in construction machinery (excavators, wheel loaders, dump trucks), agricultural equipment (tractors, harvesters), and forestry vehicles. In these environments, exposure to mud, dust, high impact, and extreme temperatures is constant, making the multi-lip and wear-sleeve protection of a cassette seal invaluable.
Mining Equipment: For haul trucks, conveyors, and other heavy machinery operating in highly abrasive and corrosive conditions. The superior contamination exclusion significantly extends the operational life of wheel ends and gearboxes in such severe service.
Industrial Gearboxes and Drive Systems: While primarily a hub seal, the underlying cassette seal technology is also applied in large industrial gearboxes, wind turbine main shafts, and other rotating equipment where robust sealing is required for high-torque and high-load applications, often found in industries like metallurgy and heavy manufacturing.
Port Machinery & Material Handling: For cranes, reach stackers, and other heavy equipment operating in coastal environments, where corrosion and abrasive dust can significantly impact seal integrity.

Advantages in Typical Application Scenarios:

Energy Saving in Commercial Transport: The low-friction design of modern cassette seals contributes to marginal but cumulative fuel efficiency improvements in commercial vehicle fleets, impacting operational costs positively.
Corrosion Resistance in Mining & Coastal Operations: Utilizing FKM elastomers and robust coated steel housings provides enhanced chemical and corrosion resistance against harsh mining fluids, saltwater, and corrosive atmospheric elements, ensuring seal integrity and preventing premature bearing failure.
Reduced Downtime in Construction: By preventing ingress of abrasive particles and maintaining lubricant quality, seals significantly reduce the likelihood of premature bearing failure, directly translating to fewer unscheduled maintenance events and higher equipment utilization rates on demanding job sites.

Vendor Comparison and Selection Criteria

Selecting the right supplier for a critical component like the RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 is paramount for ensuring long-term operational reliability and cost efficiency. While many manufacturers produce seals, not all meet the stringent quality and performance benchmarks required for heavy-duty ZF applications. Key factors for vendor comparison include:

Material Quality and Expertise: Reputable vendors utilize high-grade, traceable elastomers (NBR, FKM, HNBR) and precision-engineered metal components. They possess deep material science knowledge to recommend the optimal compound for specific operating conditions.
Manufacturing Precision and Consistency: The ability to consistently produce seals within tight tolerances (e.g., ISO 3601 for O-rings, ISO 6194 for radial shaft seals) is crucial. This involves advanced molding techniques, automated assembly, and stringent in-process quality control.
Testing Standards and Certifications: A reliable vendor will adhere to international quality standards such as ISO 9001 and, ideally, IATF 16949 for automotive applications, ensuring a robust Quality Management System. They should provide test data for critical parameters like lip force, friction, temperature resistance, and endurance.
R&D Capabilities and Technical Support: Vendors with strong R&D can offer customized solutions and provide expert technical assistance for complex applications, including failure analysis and design optimization.
Supply Chain Reliability: Timely delivery (lead time) and consistent product availability are critical to prevent production delays and minimize inventory costs. This includes robust logistics and global distribution networks.
Customer Support and Warranty: Comprehensive pre-sales and post-sales support, including clear warranty commitments, are indicators of a trustworthy partner.

Vendor Comparison Table (Illustrative)

Attribute	HKAIS Seal (Representative)	Generic Market Competitor A	Low-Cost Manufacturer B
Quality Certifications	ISO 9001, IATF 16949 compatible processes	ISO 9001	Basic Quality Control
Material Traceability	Full batch traceability	Limited traceability	Often none
Product Performance (Est.)	OEM-level, extended life	Good, meets basic specs	Varies, often shorter life
Technical Support	Dedicated engineering team	Standard support	Limited or non-existent
Customization Capability	High, specialized solutions	Moderate, minor modifications	Low, off-the-shelf only
Lead Time	Competitive, reliable	Standard market	Can be inconsistent

Customized Solutions

While the RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 is a standard OEM-compatible component, many applications present unique challenges that may necessitate customized sealing solutions. A capable sealing partner can offer tailored designs to optimize performance for specific operating parameters:

Material Optimization: Customization often begins with material selection. For extreme temperatures, aggressive chemicals, or specific types of lubricants, alternative elastomers like FKM, HNBR, or even PTFE variants can be employed. For instance, an FKM version would be specified for consistently higher temperatures or exposure to synthetic oils not compatible with NBR.
Design Modifications: While the core dimensions of ZF 0734319723 are fixed for interchangeability, internal lip geometries, spring loads, or the number of sealing lips can be fine-tuned to achieve specific performance characteristics, such as lower friction for energy saving or enhanced exclusion for highly abrasive environments.
Integrated Solutions: Beyond the seal itself, customization can extend to integrating the seal within a broader hub assembly or designing specific protective shields for unusually harsh physical impacts.
Surface Treatments: Customized coatings on the metal housing or wear sleeve can provide enhanced corrosion protection or reduce friction, extending life in particular applications like marine environments.
Prototyping and Testing: A dedicated engineering team can develop prototypes, conduct application-specific testing (e.g., mud slurry tests, high-speed endurance runs), and provide detailed performance data to validate custom designs before full-scale production. This ensures that the customized RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 meets or exceeds all performance expectations.

Engaging with a manufacturer that possesses robust engineering capabilities is crucial for businesses requiring these specialized sealing solutions, ensuring that every nuance of the operating environment is addressed.

Application Case Studies

The real-world performance of the RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 underscores its value in demanding applications. Here are illustrative case studies demonstrating its impact:

Case Study 1: Heavy-Duty Truck Fleet Operations

A large commercial trucking fleet operating across diverse climates (from arid deserts to snowy mountain passes) faced persistent issues with wheel hub seal failures on their ZF-equipped vehicles. Conventional seals often failed within 50,000 km due to ingress of dirt, moisture, and road salts, leading to premature bearing wear and unscheduled maintenance.

Solution: The fleet transitioned to using high-quality RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 seals.

Results: After a trial period and subsequent fleet-wide adoption, seal service life increased by an average of 150%, extending to over 125,000 km. This led to a 30% reduction in vehicle downtime for hub-related maintenance, substantial savings in labor and replacement part costs, and a significant improvement in overall fleet reliability and safety. The robust cassette design effectively protected bearings from harsh environmental contaminants, proving its superior durability.

Case Study 2: Mining Equipment in Extreme Conditions

A mining company operating in an open-pit copper mine experienced frequent failures of wheel end seals on their large haul trucks. The combination of abrasive dust, high loads, and occasional exposure to corrosive leachate significantly shortened the life of standard seals, leading to costly bearing replacements and operational interruptions.

Solution: The company upgraded their seals to an FKM-variant RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5, specifically designed for enhanced chemical and temperature resistance, and superior ingress protection.

Results: The FKM cassette seals demonstrated exceptional resilience. The integrated wear sleeve and multi-lip labyrinth design resisted abrasive particles far more effectively. Bearing life extended by over 40%, from 6,000 operating hours to more than 10,000 hours. This directly translated to a reduction in maintenance costs, increased productive uptime for the haul truck fleet, and a significant improvement in asset utilization.

Trustworthiness & Authoritativeness

Establishing trust and authority in the B2B sector is paramount. For critical components like the RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5, a supplier's credibility is built upon a foundation of certifications, transparent processes, and unwavering customer support.

Quality Assurance & Certifications:

ISO 9001 Certification: Demonstrates a commitment to quality management systems, ensuring consistent product quality and customer satisfaction.
IATF 16949 Compliance: For seals destined for automotive and heavy-duty vehicle applications, adherence to IATF 16949 (an automotive-specific quality management system) is crucial, indicating processes optimized for zero defects and supply chain efficiency.
Material Certifications: Providing material certifications (e.g., FDA compliance for specific applications, RoHS, REACH) ensures environmental responsibility and material purity.
Testing Data: Offering access to comprehensive test reports, including endurance testing, chemical compatibility, and dimensional accuracy, provides verifiable proof of performance.

Lead Time, Warranty, and Support:

Lead Time & Fulfillment: Standard lead times for the RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 typically range from 2-4 weeks for standard orders, with expedited options available for urgent requirements. Efficient logistics and warehousing ensure timely delivery to minimize customer downtime.
Warranty Commitments: A robust warranty, typically 12-24 months from installation or 18-30 months from date of manufacture, underscores confidence in product quality and offers peace of mind to customers. Clear terms regarding proper installation and application are provided.
Customer Support: Comprehensive pre-sales technical consultation, during-sales order tracking, and post-sales support (including troubleshooting, failure analysis, and replacement services) are essential. Dedicated technical teams are available to assist with product selection, installation guidance, and performance optimization.

Frequently Asked Questions (FAQ)

Q1: What exactly is a cassette oil seal, and how does it differ from a standard radial shaft seal?

A cassette oil seal, like the RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5, is a multi-component sealing unit that integrates multiple sealing lips, a protective metal housing, and often an integrated wear sleeve into a single, pre-assembled unit. This differs from a standard radial shaft seal which typically consists of a single primary lip and sometimes a dust lip, relying directly on the shaft surface for sealing. The cassette design offers superior contamination exclusion, extended service life, and easier, more reliable installation.

Q2: Why is the "ZF 0734319723" part number significant for this seal?

The "ZF 0734319723" designation indicates that this seal is designed to meet the exact specifications of ZF Friedrichshafen AG, a leading manufacturer of driveline and chassis technology. This specific part number ensures that the seal is fully compatible with ZF's axles, transmissions, or hub systems, guaranteeing optimal fit, form, and function, crucial for maintaining OEM performance and warranty.

Q3: What are the primary materials used in the RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 and why?

The primary sealing lips are typically made from NBR (Nitrile Butadiene Rubber) for good resistance to petroleum-based oils and fuels, or FKM (Fluoroelastomer) for superior resistance to high temperatures and aggressive chemicals. The housing is usually made from coated carbon steel or stainless steel for structural integrity and corrosion resistance. Material selection is driven by the specific operating environment's temperature, chemical exposure, and mechanical demands.

Q4: How does this seal contribute to energy saving and corrosion resistance?

Modern cassette seal designs incorporate optimized lip geometries and low-friction materials to reduce rotational drag, contributing to marginal but measurable energy savings in applications like commercial vehicle hubs. For corrosion resistance, the robust metal housing often features protective coatings, and the choice of FKM elastomer provides excellent resistance to harsh chemicals, road salts, and corrosive media commonly found in heavy-duty or industrial environments, extending the seal's effective life.

Q5: What is the typical service life expectation for these seals?

Given optimal operating conditions and proper installation, the RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 is engineered for extended service life, typically ranging from 5,000 to over 10,000 operational hours in heavy-duty applications. Factors such as shaft surface finish, lubrication quality, operational temperature, speed, and exposure to extreme contaminants can influence actual service life.

Conclusion

The RWDR CASSETTE HUB oil seal ZF 0734319723 7510013/14.5 represents the pinnacle of modern sealing technology, engineered to meet the rigorous demands of heavy-duty industrial and commercial applications. Its advanced cassette design, meticulously selected materials, and precision manufacturing process ensure unparalleled protection against contamination, superior lubricant retention, and significantly extended service life for critical hub and axle components. By minimizing downtime, reducing maintenance costs, and enhancing overall operational efficiency, this specialized oil seal delivers substantial value to fleet operators and industrial enterprises. Choosing a high-quality, OEM-compatible solution from a trusted supplier is not just a purchasing decision; it's a strategic investment in the reliability and longevity of vital machinery.

References

ISO 9001:2015 - Quality management systems — Requirements. International Organization for Standardization.
ISO 6194-1:2007 - Rotary shaft lip-type seals, dimensions and tolerances. International Organization for Standardization.
IATF 16949:2016 - Quality management system requirements for automotive production and relevant service parts organizations. International Automotive Task Force.
SKF. Radial Shaft Seals for Heavy Industrial and Off-Highway Applications. SKF Technical Document, 2020.
Freudenberg Sealing Technologies. Cassette Seals: Innovative Sealing for Harsh Environments. Freudenberg Technical Publication, 2021.
