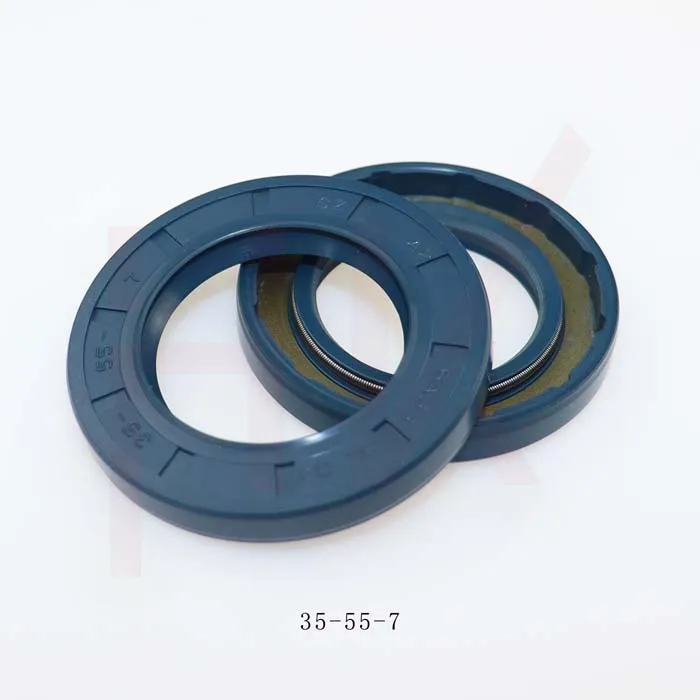

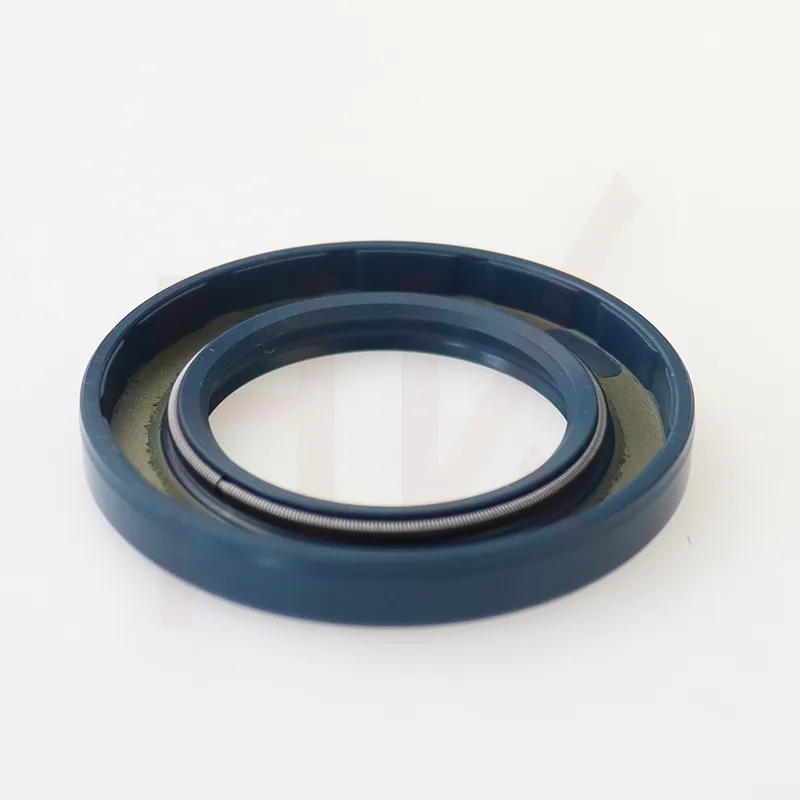

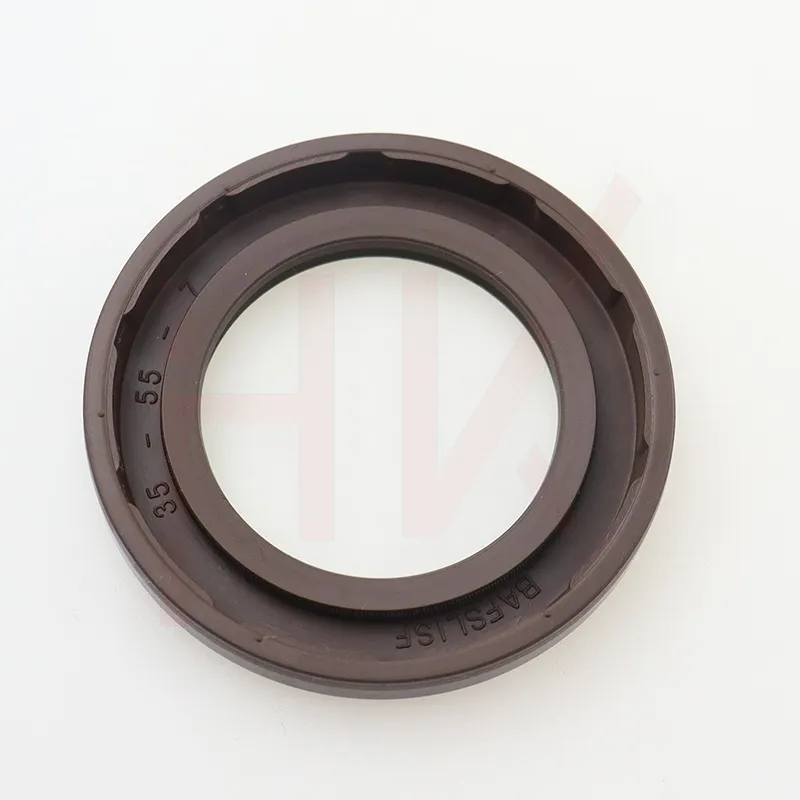

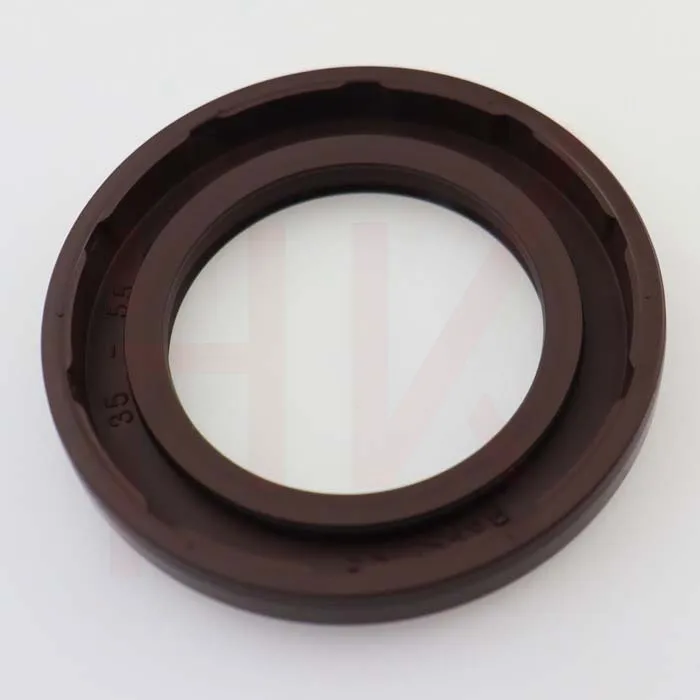

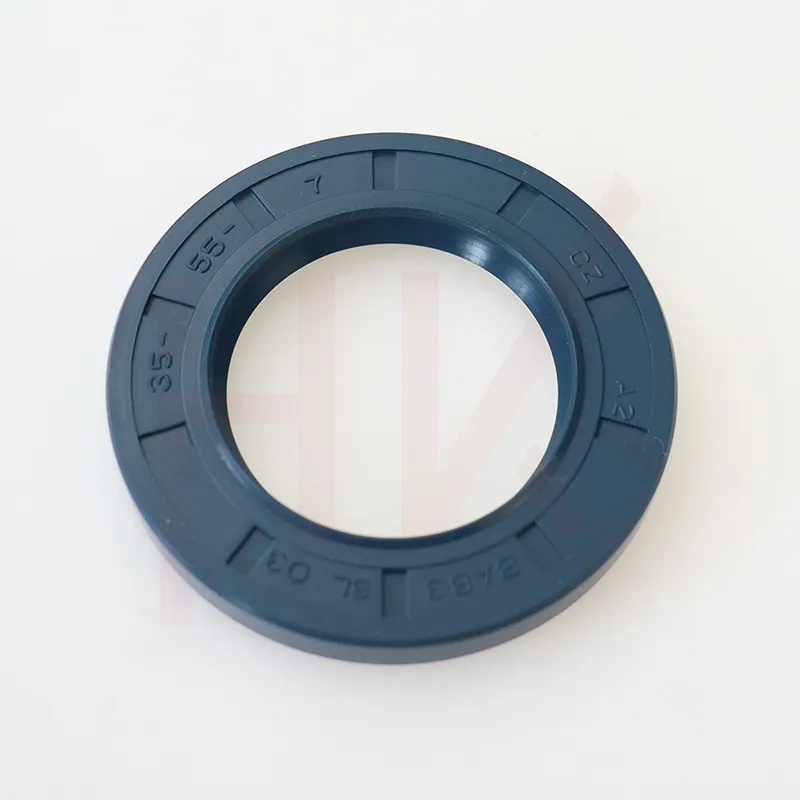

High Pressure FKM NBR Oil Shaft Seal 35x55x7 TCV Type - Durable & Reliable

Introduction to High-Performance Shaft Seals

In demanding industrial environments, the integrity of rotating machinery is paramount, heavily relying on the performance of critical sealing components. These components are essential for preventing fluid leakage, excluding contaminants, and maintaining optimal operating pressures. Among the diverse array of sealing solutions, high-pressure oil shaft seals stand out for their robust design and material resilience, particularly in applications exposed to aggressive media and extreme operational parameters.

This article delves into the specifics of a high-performance sealing solution: the FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal. This particular seal, characterized by its precise dimensions, advanced material composition, and specialized TCV lip design, is engineered to address the most rigorous challenges in industrial sealing. We will explore its technical attributes, manufacturing intricacies, diverse applications, and the distinct advantages it offers in enhancing equipment reliability and operational efficiency across various sectors.

Current Industry Trends in Sealing Technology

The industrial sealing landscape is continually evolving, driven by increasing demands for enhanced durability, efficiency, and environmental compliance. Key trends include the development of advanced elastomer materials capable of withstanding higher temperatures, more corrosive chemicals, and greater pressures. There is a strong emphasis on reducing friction to improve energy efficiency and extend service life, contributing to lower operational costs and reduced carbon footprints. Furthermore, smart sealing solutions incorporating sensors for predictive maintenance are gaining traction, although mechanical seals like the FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal remain the backbone for many critical applications.

Manufacturers are also focusing on optimizing seal geometries, such as the TCV type, to improve pressure resistance and reduce leakage, thereby enhancing overall system reliability. The convergence of material science and precision engineering is yielding seals that perform reliably in increasingly harsh and dynamic conditions, pushing the boundaries of what was previously achievable.

Detailed Manufacturing Process Flow

The production of a high-performance seal like the FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal involves a meticulously controlled, multi-stage manufacturing process to ensure dimensional accuracy, material integrity, and consistent performance.

Process Steps:

1. Material Selection and Preparation: High-grade FKM (Fluorocarbon) and NBR (Nitrile Butadiene Rubber) compounds are meticulously chosen based on specified hardness, temperature resistance, and chemical compatibility. The metal insert (typically carbon steel or stainless steel) is selected for its strength and corrosion resistance. Elastomer compounds are mixed and pre-formed.
2. Metal Component Fabrication: The steel case, which provides structural rigidity, is precisely formed through stamping or deep drawing processes. For certain applications, internal components might involve CNC machining to achieve exact tolerances. These metal components are then treated (e.g., degreased, phosphated) to ensure optimal bonding with the elastomer.
3. Molding and Vulcanization: The pre-formed elastomer and the metal case are placed into a precision mold. Through a controlled compression molding or injection molding process, the elastomer is molded onto the metal insert. High temperature and pressure initiate the vulcanization process, chemically bonding the rubber to the metal and giving the elastomer its final elastic properties and shape.
4. Precision Trimming and Finishing: After molding, excess flash material is removed with automated trimming machines to ensure clean edges and proper seal lip geometry, crucial for the TCV design. The sealing lip might undergo additional grinding or polishing for an optimal surface finish.
5. Quality Control and Testing: Each seal undergoes stringent quality checks. This includes dimensional verification using optical comparators and precise gauges to meet specifications like ISO 6194-1 and ANSI B92.1. Material hardness (Shore A), tensile strength, elongation, and compression set are tested. Pressure and leakage tests are performed under simulated operational conditions to ensure the seal's integrity, especially critical for high-pressure applications.
6. Surface Treatment and Packaging: Depending on the application, seals may receive a surface treatment (e.g., PTFE coating on the lip) to reduce friction and improve installation. Finally, seals are inspected for visual defects, packaged to prevent damage, and prepared for dispatch.

This meticulous process ensures that each FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal delivers exceptional service life, corrosion resistance, and contributes to energy saving by maintaining superior sealing efficiency.

Technical Specifications and Parameters

Understanding the technical specifications of the FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal is crucial for proper application and performance prediction. This seal combines the benefits of two distinct elastomer materials, FKM and NBR, to offer a balanced solution for challenging environments.

Material Properties:

• FKM (Fluorocarbon Rubber): Renowned for its excellent heat resistance (up to +200°C), superior chemical resistance to hydrocarbons, oils, fuels, and many aggressive chemicals, and good aging resistance.
• NBR (Nitrile Butadiene Rubber): Offers good mechanical properties, excellent resistance to petroleum-based oils and fuels, water, and hydraulic fluids. It provides good abrasion resistance and maintains flexibility at lower temperatures (down to -40°C).

TCV Type Design:

The 'TCV' designation typically refers to a robust oil seal profile featuring a single sealing lip with an auxiliary dust lip, often combined with a metal outer casing for structural rigidity and better pressure resistance. This configuration is particularly suited for high-pressure applications where dynamic sealing and protection against external contaminants are critical.

These specifications highlight the seal's capability to perform reliably under challenging conditions, making it an ideal choice for high-pressure rotating shaft applications.

Application Scenarios and Target Industries

The versatility and robust nature of the FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal make it indispensable across a multitude of industries where high performance, durability, and resistance to harsh operating conditions are non-negotiable.

Target Industries:

• Petrochemical and Oil & Gas: Critical for pumps, compressors, and gearboxes operating with aggressive chemicals, crude oil, and high temperatures in refineries, drilling platforms, and pipelines.
• Heavy Machinery and Construction: Used in hydraulic cylinders, power take-offs, and drive shafts of excavators, loaders, agricultural equipment, and mining machinery where seals are subjected to high pressures, dirt, and mechanical stress.
• Automotive and Transportation: Found in heavy-duty commercial vehicle axles, transmissions, and industrial engines, providing reliable sealing for power steering pumps and braking systems.
• Energy Sector: Essential in wind turbines (gearbox seals), hydroelectric generators, and thermal power plants for sealing rotating shafts in pumps and turbines.
• Metallurgy and Steel Manufacturing: Withstands extreme temperatures and abrasive media in rolling mills, continuous casters, and heavy presses.
• Water Supply & Drainage: Utilized in high-pressure pumps and wastewater treatment equipment, offering excellent resistance to water-based fluids and chemical treatments.

Typical Application Scenarios:

In hydraulic pumps, these seals prevent high-pressure oil leakage, maintaining system efficiency and preventing cavitation. For industrial gearboxes, they ensure lubrication integrity, protecting gears from wear and extending gearbox life. In compressors, they contain pressurized gases and lubricants, crucial for consistent performance. The TCV design with its reinforced structure is particularly effective where radial forces and shaft run-out are present, ensuring consistent contact and sealing reliability.

The dual FKM/NBR material composition specifically offers advantages in scenarios requiring both high-temperature stability (FKM) and excellent resistance to common hydraulic fluids (NBR), while the TCV design optimizes performance under fluctuating pressures. This combination directly translates to energy saving through reduced leakage and friction, and provides superior corrosion resistance against various process fluids, significantly enhancing the longevity and reliability of industrial equipment.

Technical Advantages of FKM NBR TCV Seals

The design and material selection of the FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal offer a suite of technical advantages that set it apart from standard sealing solutions:

• Superior Chemical and Thermal Resistance: The FKM component of the sealing lip provides exceptional resistance to a wide range of aggressive chemicals, solvents, and fuels, as well as high temperatures (up to +200°C). This significantly extends the seal's life in harsh chemical processing or high-temperature engine applications.
• Optimized Pressure Handling (TCV Design): The TCV type's robust construction and precise lip geometry are engineered for high-pressure applications. The reinforced metal case and specialized lip ensure stable contact with the shaft, preventing leakage even under substantial pressure differentials (e.g., up to 10 bar dynamic pressure) that would compromise conventional seals.
• Enhanced Durability and Service Life: The synergy of FKM's chemical and thermal resilience with NBR's mechanical strength and oil resistance leads to a seal with an extended operational lifespan. This reduces the frequency of maintenance, minimizes downtime, and lowers overall operational costs.
• Reduced Friction and Energy Consumption: Advanced manufacturing techniques and optimized lip profiles contribute to lower friction during rotation. This reduction in frictional losses translates directly into energy savings for the driven machinery and reduces heat generation at the sealing interface, further prolonging seal life.
• Effective Contaminant Exclusion: The auxiliary NBR dust lip provides an additional barrier against dust, dirt, moisture, and other external contaminants. This is crucial for protecting bearings and other sensitive internal components, particularly in environments like construction or mining.
• High Dynamic Performance: Engineered to perform reliably across a broad range of shaft speeds, the seal maintains its sealing integrity under dynamic conditions, preventing fluid ingress or egress even during rapid shaft acceleration or deceleration.

These combined advantages make this FKM NBR TCV seal an economically viable and technically superior choice for ensuring long-term operational integrity and efficiency in critical industrial machinery.

Vendor Comparison and Customized Solutions

Choosing the right vendor for industrial seals like the FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal is as critical as selecting the seal itself. While many suppliers offer seals, differentiation lies in material quality, manufacturing precision, testing rigor, and the ability to provide tailored solutions.

Key Differentiators in Vendor Selection:

• Material Authenticity and Quality: Reputable vendors ensure that stated materials (e.g., FKM, NBR) are genuine and meet industry specifications, providing certifications and material data sheets.
• Precision Manufacturing: High-quality seals require advanced molding techniques and stringent dimensional control, adhering to international standards such as ISO and DIN.
• Comprehensive Testing Protocols: Suppliers conducting thorough in-house testing (e.g., life cycle tests, pressure tests, chemical compatibility tests) offer greater assurance of product performance and reliability.
• Engineering Support and Customization: The ability to provide expert technical consultation and custom-engineered sealing solutions for unique applications is a significant advantage.
• Certifications and Industry Recognition: Adherence to quality management systems (e.g., ISO 9001) and specific industry certifications (e.g., API for oil & gas) demonstrates commitment to excellence.

Customized Solutions:

While the standard FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal meets a broad spectrum of needs, specific applications often require unique adaptations. A specialized manufacturer can provide customized solutions that involve:

• Tailored Dimensions: Adjusting inner/outer diameters or widths to fit non-standard shaft/bore configurations.
• Alternative Material Compounds: Optimizing FKM or NBR grades, or introducing other elastomers like HNBR, EPDM, or PTFE for enhanced performance against specific chemicals, extreme temperatures, or regulatory requirements (e.g., FDA compliance).
• Modified Lip Designs: Fine-tuning the TCV lip geometry, spring tension, or adding specialized surface treatments (e.g., hydro-dynamic aid features) to reduce friction or handle specific pressure pulsations.
• Reinforced Metal Inserts: Utilizing stainless steel or other alloys for the casing to enhance corrosion resistance or mechanical strength in critical applications.

Partnering with a vendor offering robust engineering consultation and flexible manufacturing capabilities ensures that the sealing solution is perfectly aligned with the operational demands, maximizing system uptime and reducing total cost of ownership.

Application Case Studies

Case Study 1: Heavy-Duty Hydraulic Pump for Mining Equipment

Challenge: A major mining company experienced frequent failures of standard NBR shaft seals in their hydraulic pumps operating in underground excavation equipment. The seals were subjected to high dynamic pressures (up to 8 bar), continuous abrasive dust, fluctuating temperatures, and aggressive hydraulic fluids. Mean Time Between Failure (MTBF) was unacceptably low, leading to significant downtime and maintenance costs.

Solution: The company replaced the failing seals with the FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal. The FKM primary lip offered superior chemical resistance to the hydraulic fluid and high-temperature performance, while the robust TCV design ensured stable sealing under high pressure. The NBR auxiliary dust lip provided enhanced protection against the ingress of abrasive mining dust.

Results: After implementing the FKM NBR TCV seals, the MTBF for hydraulic pumps increased by over 150%, reducing unscheduled maintenance by 60%. The improved sealing integrity led to a measurable reduction in hydraulic fluid consumption, contributing to both environmental compliance and operational savings. The mine reported a significant increase in equipment availability and productivity.

Case Study 2: Chemical Processing Plant Reactor Agitator

Challenge: A chemical plant utilized agitators in their reactors for blending corrosive chemicals at elevated temperatures (up to 150°C). Traditional NBR seals suffered from rapid degradation due to chemical attack and thermal stress, leading to dangerous leaks and compromised product quality. Seal replacement was a hazardous and costly operation.

Solution: The plant adopted the FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal. The FKM primary sealing lip's exceptional chemical inertness and high-temperature rating proved ideal for the aggressive media and thermal conditions. The TCV design maintained stable pressure sealing, preventing vapor and liquid leakage from the agitated reactor vessel.

Results: The FKM NBR seals exhibited superior resistance to the harsh chemical environment, lasting more than four times longer than the previously used seals. This extended seal life dramatically reduced maintenance frequency, enhanced worker safety by minimizing exposure to hazardous chemicals, and ensured product purity by preventing cross-contamination. The plant achieved a 75% reduction in seal-related failures and associated repair costs.

Quality Assurance and Certifications

Commitment to quality is foundational for critical components like the FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal. Our manufacturing processes are rigorously controlled and certified to ensure that every seal meets the highest standards of performance and reliability.

Our facilities operate under a certified ISO 9001 Quality Management System, guaranteeing consistency in production, from raw material inspection to final product testing. This includes strict adherence to material specifications, precise manufacturing tolerances, and comprehensive quality control at every stage of the process flow outlined previously. Furthermore, our products are designed and tested to comply with international standards such as ISO 6194-1 and DIN 3760, which govern the dimensions, tolerances, and quality requirements for radial shaft seals.

Beyond standard certifications, specific material grades used in our FKM NBR seals may also conform to industry-specific regulations, such as those from the American Society for Testing and Materials (ASTM) for elastomer properties, or potentially FDA compliance for food-grade applications if specified. We maintain a robust in-house testing laboratory equipped for dynamic pressure testing, chemical compatibility analysis, temperature cycling, and accelerated aging tests, ensuring that our seals withstand the most challenging operational environments.

Trustworthiness: FAQ, Lead Time, Warranty, and Support

Frequently Asked Questions (FAQ)

• Q: What is the primary advantage of combining FKM and NBR in one seal?
  A: The combination leverages FKM's superior chemical and high-temperature resistance with NBR's excellent mechanical properties, oil resistance, and flexibility at lower temperatures, creating a versatile seal for demanding conditions.
• Q: How does the 'TCV type' design enhance performance?
  A: The TCV type typically features a robust primary sealing lip and an auxiliary dust lip within a sturdy metal case. This design is engineered for higher pressure applications, providing stable sealing and enhanced protection against external contaminants.
• Q: Can this seal withstand aggressive chemicals?
  A: Yes, the FKM component provides excellent resistance to a broad spectrum of chemicals, including hydrocarbons, acids, and many industrial solvents. Always refer to our chemical compatibility chart for specific media.
• Q: Is customization available for specific application requirements?
  A: Absolutely. We offer extensive customization options for dimensions, material compounds, and lip designs to meet unique operational parameters and fluid compatibility needs. Please contact our engineering team for consultation.

Lead Time and Fulfillment

Standard orders for the FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal are typically fulfilled within 2-4 weeks, depending on order volume and current stock levels. For customized solutions or large-batch productions, lead times will be provided upon detailed quotation by our sales team. We maintain efficient inventory management and production scheduling to ensure timely delivery and minimize project delays for our B2B partners.

Warranty Commitments

All our seals, including the FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal, are backed by a standard 12-month warranty against manufacturing defects and material faults from the date of purchase. This warranty is a testament to our confidence in our product quality and adherence to stringent manufacturing standards. Specific warranty terms for custom orders will be outlined in the project agreement.

Customer Support and After-Sales Service

Our commitment extends beyond product delivery. We provide comprehensive technical support, including application engineering assistance, installation guidelines, and troubleshooting. Our dedicated customer service team is available to address any inquiries, provide technical data, and assist with order management. We aim to build long-term partnerships by ensuring seamless support throughout the product lifecycle.

Conclusion

The FKM NBR Oil Shaft Seal 35557 tcv type high pressure oil seal represents a pinnacle of industrial sealing technology, meticulously engineered to perform in the most demanding environments. Its dual-elastomer material composition, coupled with the robust TCV design, delivers unparalleled resistance to high pressures, extreme temperatures, and aggressive chemicals. This not only ensures extended service life and reduced maintenance but also contributes significantly to the energy efficiency and overall reliability of industrial machinery across sectors like petrochemical, metallurgy, and heavy equipment. By investing in such high-quality sealing solutions, industries can achieve optimized operational performance, enhanced safety, and substantial cost savings over the equipment's lifespan.

References

1. ISO 6194-1: Rotary shaft lip type seals, Part 1: Nominal dimensions and tolerances. International Organization for Standardization.
2. DIN 3760: Rotary shaft lip type seals; dimensions. Deutsches Institut für Normung.
3. Parker O-Ring Handbook, ORD 5700. Parker Hannifin Corporation.
4. Freudenberg Sealing Technologies. (2023). "Radial Shaft Seals – Technical Manual."
5. ASTM D2000: Standard Classification System for Rubber Products in Automotive Applications. ASTM International.
