Field Notes on the 34.92×52×6 High pressure oil seal Tcv type

If you spend time around hydraulic power packs and travel motors, you already know a good seal is cheap insurance. This one comes out of the Development Zone, Julu County, Xingtai City, Hebei Province—an area that’s quietly become a seal-making hub. I’ve visited a couple of shops there; the know‑how is real.

What the TCV design brings

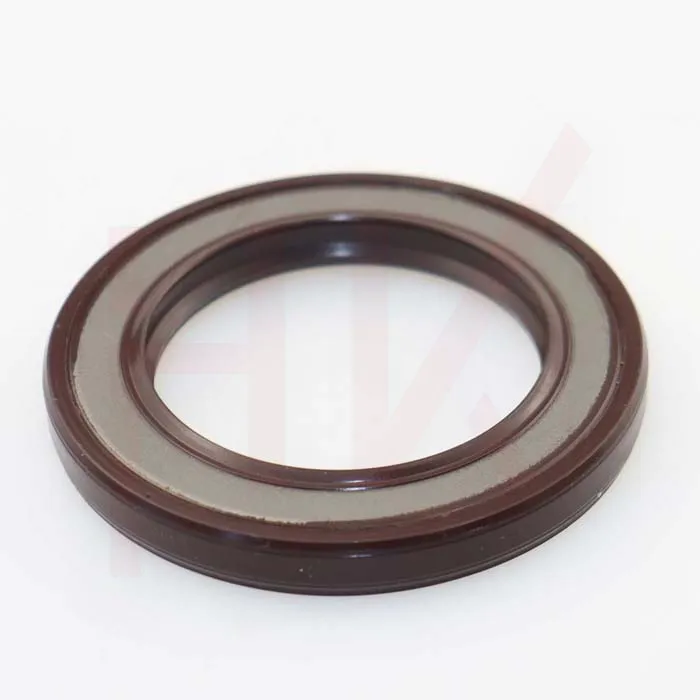

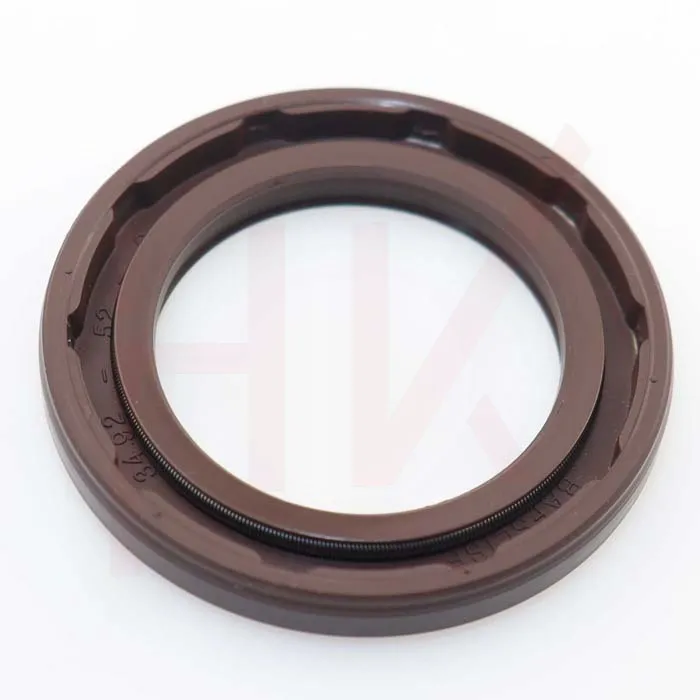

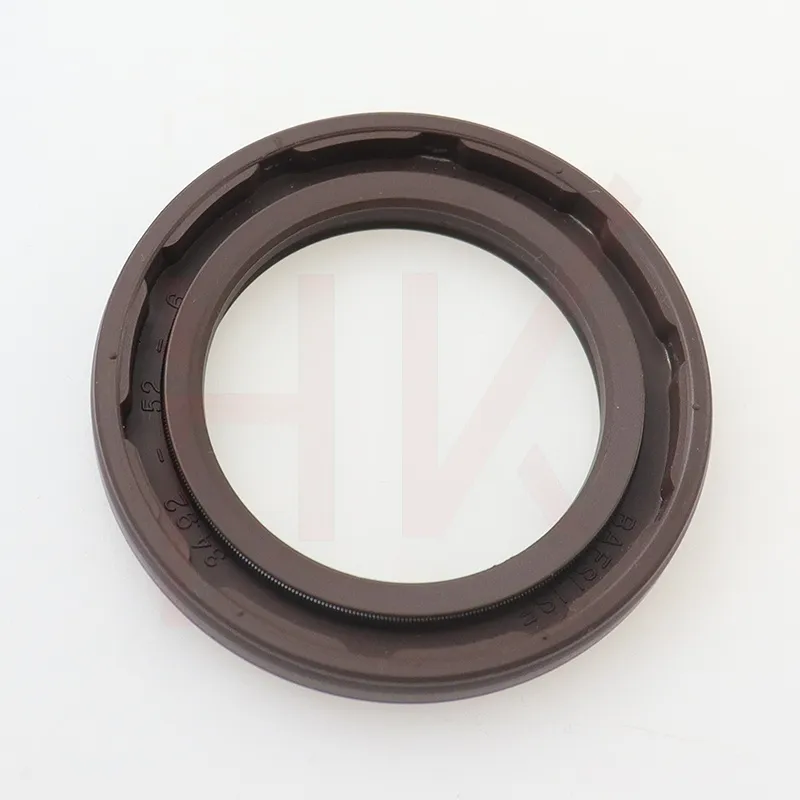

The 34.92×52×6 High pressure oil seal Tcv type is a metal‑cased, double‑lip rotary shaft seal with a garter spring and a dust lip. In plain terms: it holds pressure on the oil side and keeps mud, cement dust, and water out. It’s used across hydraulic pumps, travel pumps, rotary pumps, and vertical shafts—especially in excavators, road rollers, land scrapers, shovel loaders, self‑discharging trucks, and mixer trucks. In fact, many customers say it’s the difference between “top off weekly” and “forget it for a season.”

Quick specification snapshot

Where it’s actually used

Hydraulic pumps/motors in construction machinery are the obvious fit. I’ve also seen the 34.92×52×6 High pressure oil seal Tcv type run in mixer truck gearboxes and auxiliary rotary pumps in asphalt pavers. Surprisingly robust against slurry splashes and pressure spikes when operators goose the controls.

Process and testing (how it’s built to last)

• Compound: NBR/HNBR/FKM per ASTM D2000; tuned for oil and heat.
• Molding & vulcanization: press or transfer molding, post‑cure for FKM.
• Case: steel shell with anti-corrosion coat; precise OD interference.
• Assembly: garter spring set load checked; dust lip molded-in.
• Testing: pressure bench per ISO 6194/DIN 3760 methods (hold to ≈0.5 MPa, 30 min), leak ≤1 ml; material oil‑resistance per ISO 1817.
• Service life: ≈5,000–10,000 h in clean oil; heavy duty cycles may shorten—be honest about oil cleanliness.

Advantages I’ve noticed

Stable lip load, decent dust exclusion, and better-than-average press‑fit consistency. Customers in quarry operations report fewer “weepers” after switchovers—one foreman told me they cut pump top‑ups by around 40% on a road roller fleet.

Customization menu

Material swaps (HNBR for hot oil, FKM for high temp), stainless spring, PTFE back‑up ring for pressure spikes, and OD rubber‑coating for rough bores. Packaging for on‑site kits can be added, too.

Vendor landscape (quick comparison)

Real‑world case (short and sweet)

A concrete mixer fleet in Shandong swapped to the 34.92×52×6 High pressure oil seal Tcv type on auxiliary pumps. After three months, maintenance logged fewer drip marks and less bearing washout—oil analysis showed reduced dust ingress. Not miraculous, just solid sealing.

Certifications and standards alignment

Manufacturers typically align with ISO 9001 quality systems; design/testing follows ISO 6194 and DIN 3760 guidance, with elastomer callouts per ASTM D2000. Chemical resistance checks reference ISO 1817. To be honest, ask for the actual lab sheets—good vendors will share them.

Citations

1. ISO 6194 (all parts): Rotary shaft lip‑type seals — Performance and test methods.
2. DIN 3760/3761: Rotary shaft seals — Dimensions and requirements.
3. ASTM D2000: Standard Classification System for Rubber Products in Automotive Applications.
4. ISO 1817: Rubber — Determination of the effect of liquids.
5. ISO 9001: Quality management systems — Requirements.
