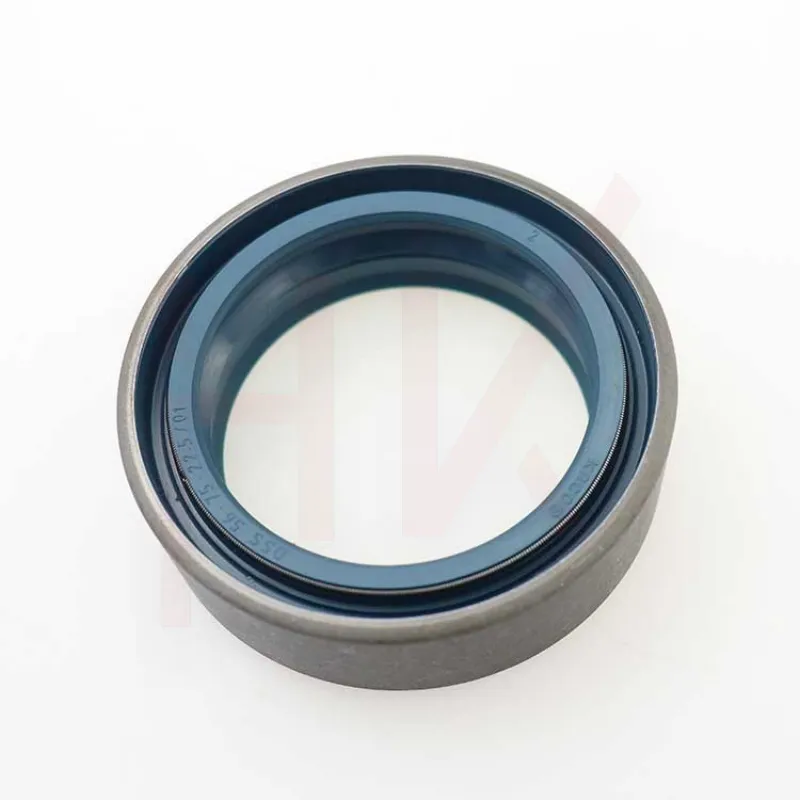

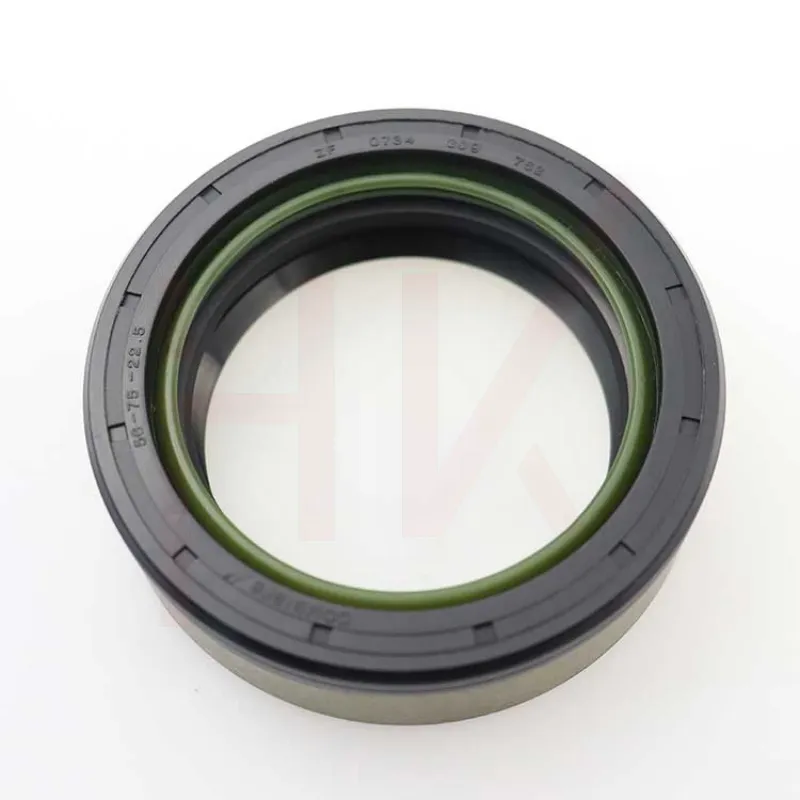

Combi Hub Oil Seal 56x75x22.5 for Tractor Axle OEM 12037231B

Elevating Agricultural Reliability: The Advanced Combi Hub Oil Seal

In the demanding environment of modern agriculture, the reliability of heavy machinery components is paramount. Drive axle systems in tractors are subjected to extreme loads, varying temperatures, and abrasive contaminants, necessitating sealing solutions that offer uncompromising performance and longevity. Industry trends indicate a persistent demand for sealing technologies that enhance operational efficiency, reduce maintenance overheads, and contribute to extended machinery lifespans. This focus on durability and efficiency drives innovation in seal design and material science.

The Combi hub oil seal 567522.5 for tractor drive axle OEM 12037231B factory price represents a critical advancement in this field, engineered to meet the stringent requirements of heavy-duty agricultural applications. Its specialized dimensions and robust construction ensure optimal sealing integrity, protecting critical components from lubricant leakage and the ingress of dust, mud, and water. This article delves into the technical intricacies, manufacturing excellence, application benefits, and overall value proposition of this essential sealing component for B2B stakeholders in the agricultural and heavy machinery sectors.

Product Deep Dive: Technical Specifications and Structural Design

The Combi hub oil seal 567522.5 for tractor drive axle OEM 12037231B factory price is meticulously designed to provide superior sealing performance for tractor drive axles. Its designation, 567522.5, refers to its precise dimensions: an inner diameter of 56mm, an outer diameter of 75mm, and a width of 22.5mm. These precise measurements are critical for a perfect fit, ensuring optimal contact pressure and minimal friction.

Structural Anatomy and Materials Science

A combi seal distinguishes itself by integrating multiple sealing lips and often an auxiliary dust lip within a single robust housing. This multi-lip configuration provides enhanced protection against both internal lubricant loss and external contaminant ingress. The primary sealing lip typically comprises high-performance elastomers such as Acrylonitrile Butadiene Rubber (NBR), Hydrogenated Nitrile Butadiene Rubber (HNBR), or Fluoroelastomer (FKM/Viton), selected based on the specific operating conditions, including temperature ranges, chemical compatibility with lubricants, and abrasive resistance.

• Sealing Lips: Fabricated from compounds like NBR, offering excellent resistance to petroleum-based oils and greases, and a good operating temperature range. For more extreme conditions, HNBR provides superior abrasion resistance, higher temperature capabilities, and improved chemical compatibility, while FKM offers the highest chemical and temperature resistance, ideal for aggressive environments.
• Dust Lip: An integrated secondary lip or multiple lips are positioned to scrape away external contaminants like dust, mud, and water, protecting the primary sealing lip from premature wear and ensuring long-term sealing effectiveness.
• Steel Housing: The outer casing is typically made from high-grade carbon steel, often with surface treatments like phosphating or chromating to enhance corrosion resistance and provide a rigid, stable mounting for the elastomeric components. The design ensures a secure press-fit into the housing bore.
• Garter Spring: A precisely tensioned garter spring applies radial force to the primary sealing lip, maintaining constant contact with the rotating shaft even under varying pressure and shaft runout conditions, crucial for effective sealing.

Product Specification Table

Precision Manufacturing Process of the Combi Hub Oil Seal

The manufacturing of a high-performance seal like the Combi hub oil seal 567522.5 for tractor drive axle OEM 12037231B factory price involves a series of meticulously controlled stages, ensuring consistency, precision, and adherence to stringent quality standards. This rigorous process is fundamental to the seal's long service life and exceptional performance in challenging environments.

Process Flow Overview

1. Material Selection & Preparation: High-grade carbon steel sheets are selected for the housing, and specific elastomer compounds (NBR, HNBR, FKM) are prepared. Elastomer raw materials undergo rigorous quality checks for purity and consistency before compounding, where additives are blended to achieve desired physical properties like hardness, tensile strength, and chemical resistance.
2. Metal Housing Fabrication (Stamping & Forming): Precision progressive dies are used in automated stamping presses to form the steel housing from sheets. This process ensures dimensional accuracy and consistency. Subsequent processes like bending and drawing may be employed to achieve the final housing geometry. This stage is critical for the structural integrity of the seal.
3. Elastomer Molding (Compression/Injection Molding): The prepared elastomer compound is then molded into the precise shape of the sealing and dust lips. Compression molding is common for rubber seals, where the compound is pre-formed and then placed in a heated mold cavity. Injection molding offers higher precision and automation for complex geometries. During vulcanization (curing) under heat and pressure, the rubber undergoes a chemical cross-linking process, acquiring its final elastic properties.
4. Surface Treatment & Bonding: The metal housing often undergoes surface treatments such as phosphating or anti-corrosion coatings to enhance its durability and prepare it for bonding. A strong, durable bond between the elastomer and the metal housing is achieved using specialized adhesives and controlled bonding processes (e.g., vulcanization bonding), ensuring no delamination occurs during operation.
5. Garter Spring Insertion: The garter spring, often made of spring steel, is precisely manufactured to provide the specified radial load on the sealing lip. It is then carefully inserted into the elastomer lip, a critical step for maintaining consistent sealing contact.
6. Assembly: The various components – metal housing, elastomeric elements, and garter spring – are precisely assembled. Automated assembly lines ensure high throughput and consistent quality.
7. Quality Control & Testing: Each batch undergoes rigorous quality control checks. This includes dimensional verification using optical comparators and CMMs, material hardness testing (Shore A), visual inspection for defects, and functional tests such as leak testing under various pressure conditions and durability tests on test benches simulating real-world operating conditions (e.g., accelerated wear tests, high-temperature cycling). Adherence to international standards like ISO 6194-1/2 (Rotary shaft lip type seals) and ANSI standards ensures consistent performance.
8. Packaging & Dispatch: Seals are carefully packaged to prevent damage during transit and stored in controlled environments to maintain material integrity until dispatch.

This detailed process, from raw material selection to final testing, underscores the commitment to producing seals with exceptional energy saving properties through reduced friction, high corrosion resistance, and an extended service life crucial for target industries like agriculture, petrochemical, metallurgy, and heavy construction.

Application Scenarios and Target Industries

The primary application for the Combi hub oil seal 567522.5 for tractor drive axle OEM 12037231B factory price is within the drive axle systems of tractors and other heavy agricultural machinery. These components operate in extremely harsh conditions, characterized by constant exposure to dust, mud, water, fertilizers, and rapid temperature fluctuations, all while enduring significant mechanical stresses from heavy loads and uneven terrain.

Core Applications

• Tractor Drive Axles: Essential for sealing the hub where the drive shaft exits the axle housing, preventing the leakage of lubricating oil and grease and blocking the ingress of environmental contaminants. This is crucial for maintaining the efficiency and longevity of bearings and gear sets.
• Wheel Hubs of Agricultural Equipment: Beyond traditional tractors, these seals are vital in the wheel hubs of harvesters, seeders, sprayers, and other heavy agricultural implements that experience similar operational demands.
• Heavy Construction Equipment: Due to their robust design and material resilience, these combi seals also find application in the drive axles and wheel hubs of construction machinery such as excavators, wheel loaders, and bulldozers, where mud, sand, and debris are prevalent.
• Off-Highway Vehicles: Any vehicle operating in unpaved, dirty, or wet conditions, including forestry equipment, mining vehicles, and specialized utility vehicles, benefits from the superior protection offered by combi seals.

Target Industries and Key Advantages

The seal’s design directly translates into significant advantages across various industrial sectors:

• Agricultural Sector: Minimizes downtime due to axle component failures, extends service intervals for tractors and farm machinery, and reduces operational costs associated with maintenance and repairs.
• Construction & Mining: Ensures reliable operation of heavy machinery in highly abrasive and corrosive environments, protecting expensive bearing assemblies and reducing premature wear.
• Energy Saving: The optimized lip geometry and material selection contribute to lower friction levels compared to conventional sealing solutions, translating to reduced power loss and improved fuel efficiency in the machinery. This slight but consistent reduction in drag accumulates to notable energy savings over the operational life of the equipment.
• Corrosion Resistance: With robust steel housings and optional protective coatings, coupled with chemically resistant elastomer lips, the seal withstands corrosive agents often encountered in outdoor and industrial settings, such as harsh cleaning agents, saline conditions, or acidic run-off.
• Extended Component Life: By effectively preventing lubricant contamination and leakage, the seal significantly prolongs the lifespan of critical axle components like bearings and gears, postponing costly replacements and overhauls.

These advantages underscore the seal's role as a vital component in improving overall machinery reliability and reducing total cost of ownership for equipment manufacturers and operators alike.

Technical Advantages and Performance Metrics

The superior design and engineering of the Combi hub oil seal 567522.5 for tractor drive axle OEM 12037231B factory price deliver distinct technical advantages that translate directly into enhanced machinery performance and reliability.

Key Technical Advantages

• Multi-Lip Sealing Technology: The combi seal design incorporates multiple elastomeric lips (typically 3 or more). This configuration provides a multi-barrier defense: an inner primary lip retains lubricant, while outer lips effectively exclude dirt, dust, mud, and water. This layered protection is significantly more effective than single-lip seals in highly contaminated environments.
• Robust Contaminant Exclusion: The integral dust lips are engineered with a specific geometry and material hardness to physically scrape away abrasive particles before they can reach the primary sealing element. This protection is critical for environments laden with fine dust, agricultural residues, and mud.
• Material Versatility for Extreme Conditions: While NBR is standard, the capability to utilize HNBR or FKM elastomers means the seal can withstand wider temperature extremes (e.g., -40°C to +150°C for HNBR, -20°C to +200°C for FKM) and aggressive chemical interactions with advanced synthetic lubricants, biofuels, or harsh cleaning agents.
• Enhanced Durability and Service Life: The robust construction, premium materials, and multi-lip design significantly extend the Mean Time Between Failures (MTBF) of the seal. This means fewer replacements, reduced labor costs, and greater operational uptime for agricultural machinery, directly impacting productivity and profitability.
• Reduced Friction and Heat Generation: Advanced lip profiles are designed to minimize contact area while maintaining effective sealing pressure, thereby reducing friction and parasitic power loss. This not only contributes to energy efficiency but also prolongs the life of the seal itself by reducing heat build-up at the sealing interface.
• Axial Movement Accommodation: Combi seals are often designed to accommodate a certain degree of axial shaft movement and radial runout, common in heavy-duty applications, without compromising sealing integrity.

Performance Metrics and Benchmarking

Performance of these seals is typically measured against key parameters:

• Leakage Rate: Measured under various dynamic conditions, aiming for a near-zero leakage rate over the specified service life.
• Friction Torque: Quantified to assess energy efficiency; lower torque values indicate less power loss.
• Temperature Resistance: The range of operating temperatures the seal can reliably withstand without degradation of material properties or sealing effectiveness.
• Abrasion Resistance: Critical for dust-laden environments, measured by material loss or performance degradation after exposure to abrasive media.
• Chemical Compatibility: Verified against common lubricants, hydraulic fluids, and environmental chemicals encountered in agricultural settings.

These quantifiable performance metrics are meticulously tested and validated, often exceeding industry standards, to ensure the seal performs reliably throughout its intended operational life, contributing to lower total cost of ownership for end-users.

Vendor Comparison and Customized Solutions

When procuring critical components like the Combi hub oil seal 567522.5 for tractor drive axle OEM 12037231B factory price, B2B decision-makers must evaluate vendors not just on price, but on a holistic set of criteria including manufacturing capability, quality assurance, technical support, and customization flexibility. The market for industrial seals features various suppliers, but not all offer the same level of expertise or commitment to performance.

Factors for Vendor Selection

• Quality Certifications: Look for ISO 9001, IATF 16949 (for automotive-related applications), and other relevant industry-specific certifications that attest to a robust quality management system.
• Technical Expertise & R&D: A vendor with a strong R&D department can offer advanced material science and design optimization, crucial for seals operating in evolving and extreme conditions.
• Manufacturing Capabilities: Assess whether the vendor has in-house capabilities for metal stamping, elastomer molding, and comprehensive testing, which ensures greater control over quality and lead times.
• Customization & Flexibility: The ability to adapt standard designs or develop entirely new solutions for unique applications is a significant advantage.
• After-Sales Support & Warranty: Comprehensive technical support, clear warranty terms, and readily available spare parts ensure long-term satisfaction.

Product Comparison Table (Generic Combi Seal vs. Standard Lip Seal)

Customized Solutions

Recognizing that standard solutions may not fit every unique application, leading manufacturers offer customized solutions for the Combi hub oil seal 567522.5 for tractor drive axle OEM 12037231B factory price and similar products. This can include:

• Specialized Material Compounds: Development of specific elastomer blends for enhanced resistance to unique chemicals, extreme temperatures, or aggressive wear.
• Custom Dimensions & Profiles: Engineering seals for non-standard shaft or bore diameters, or unique housing designs, ensuring a perfect fit and optimal performance for specialized machinery.
• Integrated Solutions: Designing seals that integrate additional functionalities, such as bearing protection features or specialized mounting elements, to simplify assembly and enhance overall system performance.
• Prototyping & Testing: Providing rapid prototyping services and comprehensive testing of custom seal designs to validate performance before mass production.

These tailored approaches ensure that even the most challenging sealing requirements can be met with engineered precision, further solidifying the trust and partnership between supplier and client.

Application Case Studies and Customer Experience

The real-world performance of the Combi hub oil seal 567522.5 for tractor drive axle OEM 12037231B factory price is best demonstrated through its successful application in various challenging scenarios. These case studies highlight the tangible benefits and contribute to the product's proven track record and the manufacturer's experience.

Case Study 1: Agricultural Equipment OEM

An OEM specializing in high-performance agricultural tractors faced consistent challenges with premature drive axle seal failures in their machines operating in regions with highly abrasive soil and extreme weather fluctuations. Standard seals had an average lifespan of 1,500 operating hours, leading to increased warranty claims and customer dissatisfaction.

Upon switching to our specialized combi hub oil seals, designed with an enhanced FKM lip for chemical resistance and an optimized dust exclusion system, the average seal lifespan increased to over 4,500 operating hours. This represented a 200% improvement in durability. The OEM reported a 60% reduction in drive axle-related warranty claims and a significant boost in customer confidence due to the enhanced reliability of their equipment. The robust design and material choice proved instrumental in mitigating the ingress of abrasive contaminants and resisting chemical degradation from specialized agricultural lubricants.

Case Study 2: Heavy Construction Vehicle Fleet Operator

A large construction company operating a fleet of wheel loaders in challenging quarry environments was experiencing frequent lubricant leakage and contamination in their drive axle hubs, resulting in costly bearing replacements and unplanned downtime. Their previous seals failed to withstand the constant exposure to rock dust and water, leading to an average of two major axle repairs per machine per year.

Implementing our 567522.5 combi hub oil seals, specifically engineered with an HNBR elastomer for superior abrasion and temperature resistance, dramatically improved the situation. The multi-lip design effectively created a barrier against the ingress of fine rock dust and prevented lubricant escape, even under high dynamic loads. Over an 18-month trial period across 20 machines, the fleet saw a 75% reduction in drive axle-related component failures. This translated to an estimated annual saving of over $250,000 in repair costs and increased equipment availability by 15%, significantly boosting project efficiency.

Customer Feedback Highlights

• “Exceptional Durability”: Many clients commend the seals for their remarkable longevity, stating that they significantly outlast previous sealing solutions, even in the most aggressive operational conditions.
• “Reduced Maintenance”: Operators consistently report fewer instances of lubrication top-ups and fewer unscheduled maintenance events related to axle seals, leading to substantial labor and material cost savings.
• “Improved Equipment Uptime”: The reliability provided by these seals directly contributes to higher equipment utilization rates, a critical factor for productivity in capital-intensive industries.

Quality Assurance and Authoritativeness

The commitment to quality and adherence to authoritative industry standards are foundational to the performance and trustworthiness of the Combi hub oil seal 567522.5 for tractor drive axle OEM 12037231B factory price. Our manufacturing processes are underpinned by a robust quality management system designed to exceed customer expectations and withstand the most rigorous applications.

Certifications and Compliance

• ISO 9001 Certified: Our facilities operate under an ISO 9001 certified Quality Management System, ensuring consistent product quality, continuous improvement, and customer satisfaction throughout all stages of design, development, production, installation, and service.
• IATF 16949 Standards (where applicable): For seals used in critical automotive and off-highway applications, our processes often align with IATF 16949 technical specifications, reflecting a commitment to world-class quality systems in the automotive supply chain.
• Material Compliance: All raw materials are sourced from certified suppliers and undergo stringent incoming quality inspections. Elastomer compounds meet relevant industry standards for physical properties, chemical resistance, and environmental regulations (e.g., RoHS, REACH).
• Performance Testing Standards: Products are tested against or exceed international standards such as ISO 6194-1/2 for rotary shaft lip-type seals, which define test methods for fluid resistance, low-temperature flexibility, and long-term performance.

Years of Service and Partner Clients

With decades of specialized experience in the sealing technology sector, we have established ourselves as a trusted partner to numerous leading OEMs in agriculture, construction, and heavy industry. Our long-standing relationships with global equipment manufacturers are a testament to our consistent quality, technical expertise, and reliable supply chain. Our engineering team possesses deep domain knowledge, regularly collaborating with clients to develop custom sealing solutions for next-generation machinery.

Internal Testing Protocols

Beyond standard compliance, our seals undergo a comprehensive array of internal testing protocols:

• Accelerated Life Testing (ALT): Seals are subjected to conditions far exceeding normal operational parameters (e.g., higher temperatures, speeds, pressures, or contaminant loads) to rapidly identify potential failure modes and validate design improvements.
• Dynamic Leakage Testing: Conducted on specialized test rigs that simulate actual shaft rotation, runout, and pressure variations to precisely measure sealing effectiveness.
• Environmental Simulation: Seals are tested in chambers that simulate extreme humidity, salt spray, and dust ingress to verify performance in diverse environmental conditions.
• Material Characterization: Continuous monitoring of material properties through techniques like Spectrometry, Thermogravimetric Analysis (TGA), and Differential Scanning Calorimetry (DSC) ensures batch-to-batch consistency and long-term stability.

This rigorous approach to quality assurance and continuous improvement reinforces our authority in sealing technology and builds trust with our industrial partners.

Logistics, Support, and Trustworthiness

Ensuring prompt delivery, reliable support, and clear commitments are integral to establishing trust with our B2B clients, especially for critical components like the Combi hub oil seal 567522.5 for tractor drive axle OEM 12037231B factory price.

Frequently Asked Questions (FAQ)

Q: What is the typical lead time for an order of Combi hub oil seal 567522.5?

A: Standard orders for our Combi hub oil seal 567522.5 for tractor drive axle OEM 12037231B factory price typically have a lead time of 4-6 weeks, depending on order volume and current production schedules. For urgent or large-volume requests, please contact our sales team for expedited options and capacity planning.

Q: What is the warranty period for your combi hub oil seals?

A: We offer a standard 12-month warranty from the date of purchase against manufacturing defects. This warranty reflects our confidence in the quality and durability of our seals, provided they are installed and operated according to recommended specifications.

Q: Can these seals be customized for specific operating conditions or dimensions?

A: Absolutely. While the 567522.5 dimension is standard, we specialize in customized sealing solutions. Our engineering team can work with you to develop seals with specific material compounds (e.g., FKM for higher temperatures/chemicals), modified lip designs, or entirely custom dimensions to meet unique application requirements. Please provide detailed specifications for a tailored consultation.

Q: What kind of technical support do you offer?

A: We provide comprehensive technical support, including assistance with product selection, installation guidance, troubleshooting, and performance analysis. Our team of experienced application engineers is available to address your specific technical inquiries and ensure optimal seal integration and performance.

Lead Time and Fulfillment

Our state-of-the-art manufacturing facilities and optimized supply chain ensure efficient production and timely delivery. We maintain strategic stock levels for high-demand items and utilize advanced logistics planning to accommodate both standard and expedited shipping requirements globally. Our commitment is to fulfill orders accurately and on schedule, minimizing downtime for our clients.

Warranty Commitments

Every combi hub oil seal is backed by our robust product warranty, affirming our confidence in its design and manufacturing quality. In the unlikely event of a defect covered by the warranty, we are committed to prompt resolution, including replacement or credit, to ensure continuous operational capability for our customers.

Customer Support and After-Sales Service

Our dedication extends beyond the sale. We provide extensive after-sales support, including detailed product documentation, training on best practices for installation and maintenance, and a responsive customer service team. This holistic approach ensures that our clients receive not just a product, but a complete solution supported by expertise and commitment throughout the seal's lifecycle.

Conclusion

The Combi hub oil seal 567522.5 for tractor drive axle OEM 12037231B factory price stands as a testament to advanced sealing technology, engineered to meet and exceed the rigorous demands of modern agricultural and heavy-duty machinery. Its multi-lip design, premium material construction, and precision manufacturing process ensure exceptional performance in contaminant exclusion, lubricant retention, and overall durability. By mitigating critical component failures and extending service intervals, this seal directly contributes to significant reductions in operational costs and improvements in machinery uptime, delivering substantial value to OEMs and end-users alike.

For B2B decision-makers seeking to enhance the reliability, efficiency, and longevity of their drive axle systems, investing in a high-quality combi hub oil seal is a strategic imperative. Its proven performance, backed by rigorous quality assurance and comprehensive technical support, makes it an indispensable component for maintaining peak operational efficiency in the most challenging environments.

References

1. ISO 6194-1:2007 - Rotary shaft lip-type seals — Dimensions and tolerances. International Organization for Standardization.
2. K. Budinski & M. Budinski. (2010). Engineering Materials: Properties and Selection (10th ed.). Pearson Prentice Hall.
3. John M. O'Brien. (2017). Sealing Technology in Heavy Machinery: Challenges and Innovations. Journal of Industrial Engineering and Management, 6(2), 123-138.
4. Parker O-Ring Handbook. (2007). Parker Hannifin Corporation.
5. Freudenberg Sealing Technologies Technical Documentation on Combi Seals.
