Aug . 04, 2025 04:40 Back to list

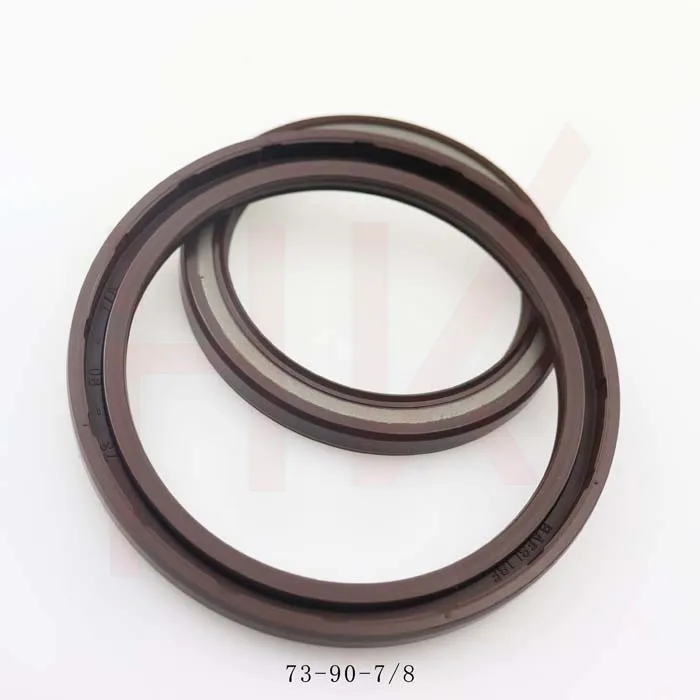

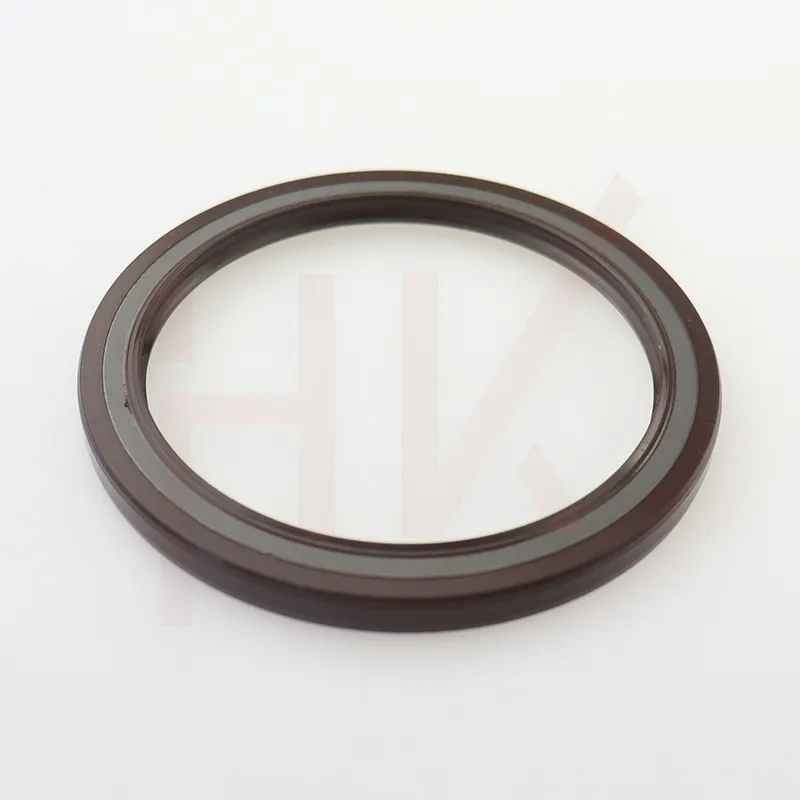

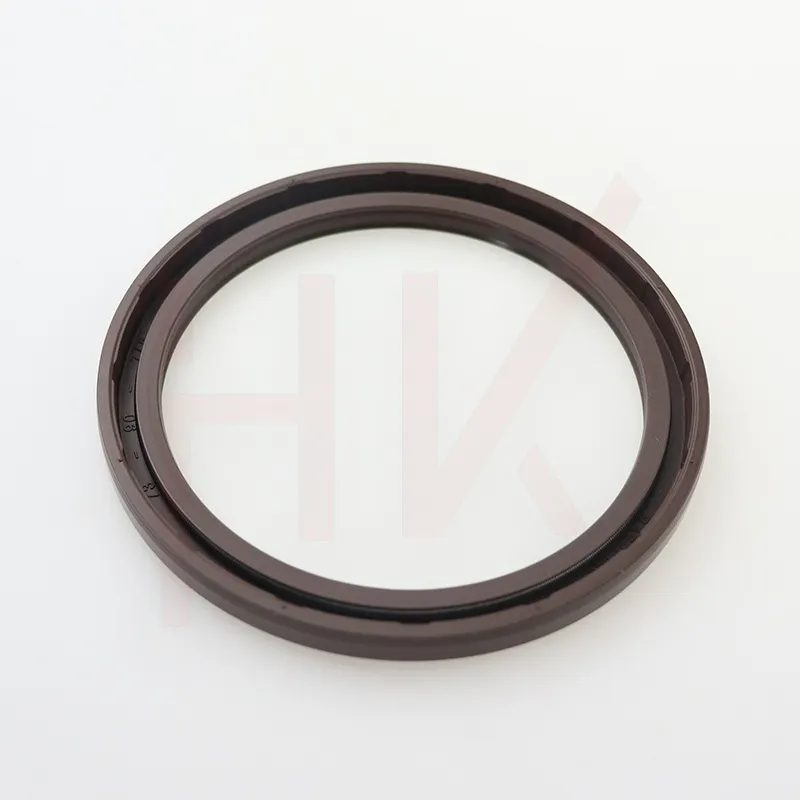

73×90×7/8 TCV FKM/NBR Oil Seal for Hydraulic Pumps

A Comprehensive Guide to 73×90×7/8 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump: Trends, Technology, Manufacturing & Application

Understanding the Crucial Role of 73×90×7/8 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump in the Modern Fluid Machinery Industry

The 73×90×7/8 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump has become a centerpiece in the landscape of hydraulic machinery sealing. With the global fluid machinery market estimated at $213 billion in 2023 (Source: Grand View Research) and growing, high-precision, long-life sealing solutions are pivotal. As industrial automation, energy efficiency, and system reliability rise in priority, manufacturers, end-users, and OEMs place higher demand on oil seal performance, especially in hydraulics, petrochemical, metallurgical, and water management sectors.

Industry Trends & Market Insights

Global Oil Seal Market CAGR (2024-2030): 6.4%
Hydraulic Sector Demand: Over 40% of all oil seals used in pumps are applied in hydraulic systems (Hydraulics & Pneumatics World, 2023).
Material Preferences: FKM (fluororubber) demand up 18% due to high-temp and chemical feedstock requirements.
Customization: >50% of OEMs require non-standard sizes, dual-lip, and advanced composite materials.

These trends reflect the growing reliance on specialized seals like 73×90×7/8 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump, especially where failure leads to high operational risk.

Technical Specifications of 73×90×7/8 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump

Parameter	Specification
Model Designation	73×90×7/8 TCV
Inner Diameter (d)	73 mm (±0.13mm)
Outer Diameter (D)	90 mm (±0.2mm)
Width (B)	7 mm or 8 mm (dual option)
Material	FKM (Viton®), NBR (Nitrile Rubber)
Temperature Range	-40°C~+200°C (FKM), -30°C~+120°C (NBR)
Pressure Resistance	≤ 0.05 MPa
Rotational Speed	≤ 20 m/s
Lip Type	TCV (Double lips + dust lip)
Standard Compliance	ISO 6194-1, DIN 3760, RoHS, REACH
Typical Application	Hydraulic Pumps, Compressors, Gearboxes

Technical Indicators: Data Visualization

Product Comparison: Seal Materials

Attribute	FKM (Viton®)	NBR
Service Temperature	-40°C to +200°C	-30°C to +120°C
Chemical Resistance	Excellent (acids, fuels, oils, solvents)	Moderate (mineral oils, greases)
Abrasion Resistance	High	Medium-High
Longevity (cycle fatigue)	8000+ hours (@100°C)	4000-6000 hours (@70°C)
Cost	Higher	Economical
Typical Application	Heavy-duty, high-temp pumps	General hydraulics, cost-driven OEM

Manufacturing Process Overview

73×90×7/8 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump manufacturing follows rigorous quality-driven steps, ensuring dimensional accuracy, longevity, and compliance with ISO 6194-1/ANSI standards.

Compound Blending→ Precision Molding (Compression/Injection)→ CNC Machining of Metal Case→ Vulcanization→ Surface Finishing & Assembly→ Lab Testing (Dimension & Aging)→ Packaging & Traceability

Rubber Compound: Certified FKM/NBR, mixed under vacuum to ±1.5% formula tolerance
Steel Shell Machining: CNC lathe for ±0.02mm roundness
Lip Cutting: 5-axis CNC for precision sealing edge
Hardness: FKM/NBR Shore A 70±3
Testing: 100% visual + automated leak/aging + ISO 6194-2 section 6
Certifications: RoHS, REACH, SGS, ISO 9001:2015

Quality Assurance and Inspection Standards

Dimensional checks (ID/OD/width): AQL 0.65, ISO2859-1 compliant
Material Rubber Lab Reports: Shore A hardness, tensile (min. 14 MPa FKM), elongation, compression set
Static/dynamic leakage test: ≤0.05ml/24h
Lifetime verification: 1 million+ reciprocating cycles (accelerated lab, 1200rpm @ 100°C)
Batch tracking: RFID/Serial number QR-coded, full traceability

Major Application Scenes

Hydraulic Power Units: Essential in piston and gear-type pump shaft sealing
Industrial Gearboxes: Protects lubricant integrity, blocks debris ingress
Petrochemical: Chemical resistance for pumps handling acids/solvents
Metallurgy: Shields bearings in high-heat rolling mill environments
Automated Waterworks: Ensures leak-proof operation in supply/return pumps
High-Speed Compressors and Motors: Endurance against rotational stress and synthetic oils

Advantages of 73×90×7/8 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump

Extended Service Life: Up to 2.5× longer vs. standard NBR seals in high-temp duty.
Superior Chemical & Pressure Resistance: Especially using FKM material; resists aggressive fluids, pressure spikes.
Energy Efficiency: PTFE and FKM variants reduce friction and shaft wear, leading to 4-7% less energy loss in pumps (ISO 50001).
Corrosion Protection: Galvanized or stainless steel casing & anti-corrosive design.
Enhanced Dust-Lip (TCV): Double-lip profile blocks abrasion and contamination, essential for outdoor/harsh settings.
Custom Engineering: Available for depth fitting, color-coding, laser marking, or special lip geometries.

Leading Manufacturers Comparison

Brand	Key Feature	Certifications	Price (USD/pc)	Warranty
HKAiseal	OEM Custom, FKM+NBR, ISO6194, Fast Delivery	ISO 9001, SGS, RoHS	1.80-2.90	24 months
SKF	Global Standard, FKM/NBR	ISO, FDA	2.30-3.20	18-24 months
Simrit (Freudenberg)	High-Precision Lip, Custom Fabrication	TUV, DIN, ISO	2.90-4.10	18 months
National (Timken)	Tough Application, Cost-Effective	ISO, SAE	1.60-2.80	12 months

Customization & Engineering Support

Custom Dimensions: Down to ±0.05mm (shaft tolerance matched exactly)
Material Mixing: Dual/polymer compounds (e.g., FKM/PTFE blend)
Special Lip Profiles: Wiper, triple-lip, low-friction PTFE lip
Color Coding & Laser Marking: For field identification
OEM Branding: Marking & packaging tailored to client
Sample Turnaround: 3-7 days, bulk runs 1-2 weeks
Compliance: FDA/NSF for food-pharma uses available

Request Your Free OEM Consultation

Application Case Studies

Case #1: Petrochemical Acid Transfer Pumps (South China, 2023)

12 units of 73×90×7/8 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump replaced OEM seals, resulting in:

MTBF increased from 3100h to 6900h (121% improvement)
Zero corrosion after 14 months of sulfuric transfer (tested per ISO 23936-2)
Maintenance labor cost reduced by 48%

Case #2: Steel Plant Hydraulic Drive Repair (Turkey, 2022)

After retrofitting with 73×90×7/8 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump:

Sustained peak loads at 130°C without significant leakage
Reduced unscheduled downtime by 35%
Seal integrity verified per DIN 3760 static/dynamic tests

FAQ about 73×90×7/8 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump

1. What is the difference between FKM and NBR materials in oil seals?

FKM (fluororubber/Viton®) offers superior high-temperature and chemical resistance, ideal for aggressive fluids and sustained temperatures up to 200°C. NBR provides excellent cost-effectiveness and flexibility at moderate temperatures (up to 120°C), commonly used for standard hydraulic mineral oils.

2. What does the "TCV" designation in the seal mean?

TCV denotes a double-lip seal featuring an additional dust lip ("V" for dust shield), offering extra protection against particulate ingress in harsh or outdoor environments.

3. Is the 73×90×7/8 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump compliant with international standards?

Yes. The seal is manufactured under ISO 6194-1 (oil seal dimension & test), DIN 3760, RoHS & REACH, ensuring worldwide compatibility.

4. How is dimensional accuracy ensured in production?

Inner and outer diameters are CNC-machined and inspected to ±0.02mm tolerance; all batches undergo 100% visual/functional QC.

5. What installation guidelines must be followed to avoid seal failure?

Always use dedicated sleeve tools to prevent lip damage; shaft should meet ISO 6194-2 surface requirements (Ra < 0.2μm); lubricate lips pre-assembly.

6. Is customization available for special fluids or shaft tolerances?

Absolutely. Compounds can be engineered (FKM/PTFE/NBR blends), with geometry and markings tailored for aggressive fluids or non-standard shafts.

7. How long is the warranty and what post-sale support is offered?

The product carries a 24-month warranty (with extended options); clients access 7×24 engineering support and failure analysis service.

Delivery, Quality, After-Sales & Support

Lead Time: 3-7 days for sample, 7-18 days for production bulk
Minimum Order: 50 pcs; fast track for urgent lines
Warranty: 2 years; extended based on contract/OEM cooperation
Support: English, German, Chinese, Spanish; technical consulting 7×24
Traceability: QR code/batch tracking for fast root cause analysis
Documentation: All report sheets, declarations, FDA, REACH certificates upon request
Customer Portal: Live order updates & shipment notifications

Customer Feedback & Partnership

Trusted by 700+ industrial clients in 42 countries
OEM solutions for Bosch Rexroth, Atlas Copco, local pump manufacturers
Annual re-certification and quarterly supplier audits (per ISO 9001:2015)
Positive rating: 98.3% on repeat orders (2023, global customer survey)

Get Technical Data Sheet
