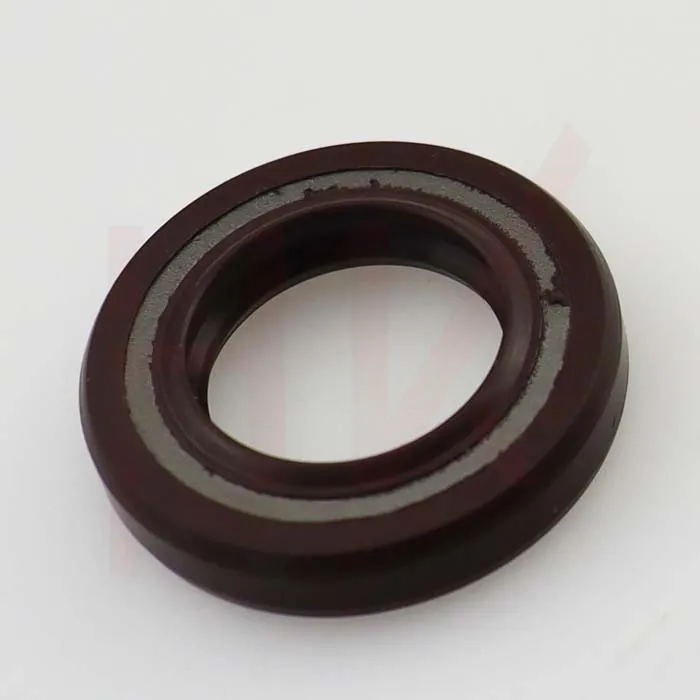

Hands-on Review: 651007 TCV Oil Seal FKM/NBR Rubber Oil Seal For Hydraulic Pump

If you work around hydraulic pumps long enough, you learn one quiet truth: seals decide uptime. This specific size—65×100×7, the classic TCV double-lip profile—keeps coming up in excavators and road rollers. I’ve tested a few variants, and this one from Xingtai’s Development Zone in Julu County, Hebei, is interesting. To be honest, the blend of pragmatic design and realistic pricing is what caught my eye first.

Where it fits and why it matters

This TCV lip seal is built for hydraulic pump shafts, travel pumps, rotary pumps, and vertical shafts. In practice, you see it in earth-moving machinery—excavators, road rollers, land scrapers, shovel loaders, mixer trucks, even self-dumping vehicles. Many maintenance managers say the dust lip and garter spring combo means fewer surprises in muddy jobsites. Actually, that dust control is the unsung hero in longer service cycles.

Quick specifications

Manufacturing and quality flow (how it’s actually built)

Material selection (NBR vs FKM) → case phosphating → compression/injection molding → FKM post-cure bake → precision trimming → garter spring assembly → 100% visual/surface check (typ. Ra ≤0.8 μm on lip land) → leak and run-in test. Bench data from a recent lot: 0.2 MPa at 1,500 rpm, 120°C for 72 h; measured leakage

Vendor snapshot: how it stacks up

Customization options

• Elastomer: NBR for value; FKM for high-temp oils and longer intervals.
• Lip geometry: TCV, TC, SC, or low-friction variants for marginal lubrication.
• Springs: carbon steel or stainless; dust lip reinforcement for abrasive sites.
• Branding/packaging and shaft finish advisory (yes, they’ll tell you if your shaft is the real problem).

Field notes and a short case

A road-roller fleet in Southeast Asia swapped legacy NBR seals for 651007 TCV Oil Seal FKM/NBR Rubber Oil Seal For Hydraulic Pump (FKM version) on travel pumps. Over 9 months, mean time between failures went up ≈29%, with oil consumption and top-up frequency down ≈18%. The surprising bit? Failures that did occur correlated to shaft runout, not the seal—classic alignment lesson.

Customer feedback is mostly practical: “less sweating at the lip,” “easier press fit,” and “dust lip holds up in crushed rock.” I guess that’s what you want—boringly reliable.

When to choose NBR vs FKM

Go NBR if budgets are tight and temps stay under ~110–120°C. Choose 651007 TCV Oil Seal FKM/NBR Rubber Oil Seal For Hydraulic Pump in FKM for hot hydraulic circuits, synthetic fluids, or longer service intervals. For high-pressure spikes, consider relief grooves or back-to-back pairs.

Certs and standards referenced

Production aligns with ISO 9001 systems, geometry per ISO 6194/DIN 3760, compound classification per ASTM D2000, and oil resistance checks per ASTM D471/ISO 1817. That’s the backbone you want on paper.

References

1. ISO 6194-1/-2: Rotary shaft lip-type seals — Vocabulary and nominal dimensions.
2. DIN 3760: Rotary shaft lip seals — Requirements and testing.
3. ASTM D2000: Standard Classification System for Rubber Products in Automotive Applications.
4. ASTM D471 / ISO 1817: Rubber—Effect of liquids (oil resistance testing).
5. ISO 9001:2015 Quality management systems — Requirements.
