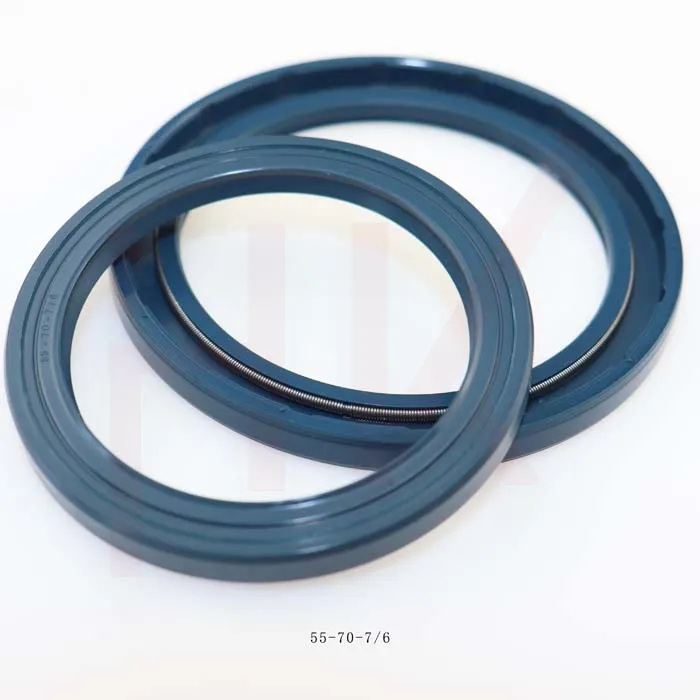

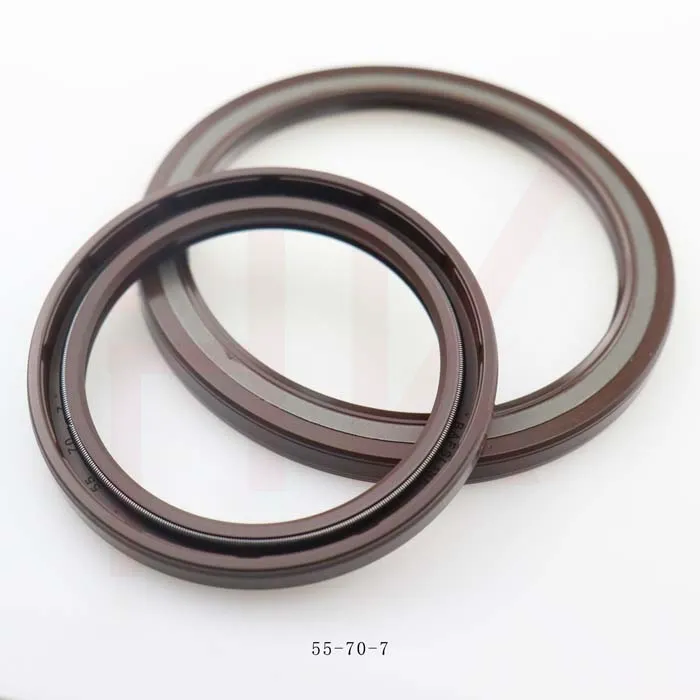

55x70x7 TCV Shaft Seal for Hydraulic Pumps | Durable & Leak-Proof

In the dynamic world of industrial machinery, the efficiency and longevity of hydraulic systems hinge on the performance of critical components. Among these, the shaft seal plays an indispensable role, preventing fluid leakage, protecting internal mechanisms from contamination, and ultimately ensuring system integrity. This comprehensive guide delves into the specifics of the 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP, exploring its technical prowess, manufacturing intricacies, diverse applications, and its significant contribution to industrial reliability. We will navigate the evolving landscape of sealing technology, examine key performance indicators, and highlight why this specific seal is a cornerstone for high-performance hydraulic applications.

Industry Trends and the Demand for Advanced Sealing Solutions

The global hydraulic systems market is experiencing robust growth, driven by increasing automation, demand for energy-efficient solutions, and the expansion of heavy machinery in construction, agriculture, and manufacturing. Reports indicate that the hydraulic equipment market is projected to reach over USD 50 billion by 2027, with a CAGR of around 4.5% from 2022. This growth intensifies the focus on component reliability, especially seals, which are often the first point of failure in hydraulic systems. Modern trends emphasize seals with:

• Enhanced Durability: Capable of withstanding extreme temperatures, pressures, and aggressive media.
• Reduced Friction: To improve energy efficiency and minimize heat generation.
• Extended Lifespan: Lowering maintenance costs and downtime.
• Environmental Compliance: Preventing leaks that can harm the environment and incur regulatory penalties.
• Material Versatility: Adapting to various hydraulic fluids and operating conditions.

The 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP is engineered to meet these stringent requirements, embodying the latest advancements in sealing technology to support the industry's progression towards more robust and sustainable hydraulic operations. Its design, particularly the TCV (Tandem Cavity V-ring) and BAB3SL (specific lip design and material code) configurations, signifies a focus on superior sealing performance under demanding conditions, often associated with high-speed rotation and pressure differentials common in hydraulic pumps.

Technical Parameters and Specifications

Understanding the technical specifications of the 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP is crucial for proper selection and optimal performance. The designation "55707" refers to its dimensions: 55mm inner diameter, 70mm outer diameter, and 7mm width. The "TCV" denotes a specific lip design for robust sealing, often featuring multiple sealing lips for enhanced fluid retention and contaminant exclusion. "BAB3SL" typically refers to the seal's material compound and specific lip configuration, optimized for specific application requirements such as resistance to certain hydraulic fluids or improved low-friction characteristics. These seals are predominantly made from high-performance elastomers such as NBR (Nitrile Butadiene Rubber) for general hydraulic applications or FKM (Fluoroelastomer, e.g., Viton®) for high-temperature and chemical-resistant environments. The choice of material directly impacts the seal's compatibility with various hydraulic fluids, temperature range, and overall lifespan.

Key Parameters Table for 55707 TCV Shaft Seal

These parameters underscore the versatility and robustness required for a 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP to operate effectively in demanding hydraulic environments, ensuring optimal sealing integrity and extended service life.

Application Scenarios in Hydraulic Systems

The 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP is specifically designed for use in hydraulic pumps, which are the heart of hydraulic systems. These seals are critical in applications where a rotating shaft must pass through a housing while containing pressurized fluid. Common application scenarios include:

• Industrial Hydraulic Power Units: Used in manufacturing plants for presses, injection molding machines, and automated assembly lines.
• Mobile Hydraulic Equipment: Essential for construction machinery (excavators, bulldozers), agricultural equipment (tractors, harvesters), and material handling (forklifts, cranes).
• Marine and Offshore Applications: In steering gears, winches, and propulsion systems where reliability under harsh conditions is paramount.
• Aerospace Industry: For various hydraulic actuators and landing gear systems, though often with specialized, higher-grade materials.
• Wind Turbines: In pitch and yaw systems that rely on hydraulic power.

In these diverse environments, the 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP performs a dual function: retaining the hydraulic fluid within the pump housing and preventing external contaminants (dust, dirt, moisture) from entering the system. Its robust design is particularly beneficial in high-speed and high-pressure applications common to hydraulic pumps, minimizing leakage and maintaining efficiency.

Technical Advantages and Performance Metrics

The 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP offers significant technical advantages that contribute to the overall efficiency and longevity of hydraulic systems. These include:

• Superior Sealing Integrity: The TCV (Tandem Cavity V-ring) design provides multiple sealing lips, creating redundant barriers against fluid leakage. This multi-lip configuration significantly reduces the risk of blow-out under pressure surges and enhances contaminant exclusion, crucial for protecting precision internal components of hydraulic pumps.
• Reduced Friction and Heat Generation: Advanced lip geometry and material formulations (e.g., low-friction PTFE-modified elastomers) minimize the contact area while maintaining an effective seal. This translates to lower energy consumption, reduced operating temperatures, and extended seal life. Friction reduction can lead to energy savings of up to 5-10% in some high-speed applications.
• Extended Service Life: Designed to withstand continuous operation under varying pressure and temperature conditions. The robust material selection (e.g., high-abrasion resistance NBR or high-temperature FKM) ensures resistance to wear and tear, leading to significantly longer mean time between failures (MTBF) compared to conventional seals. Some premium seals can achieve a lifespan of 10,000+ operating hours under optimal conditions, meeting the ISO 6194-1 standard for rotary shaft seals.
• Excellent Chemical Compatibility: Available in various elastomer compounds to ensure compatibility with a wide range of hydraulic fluids, including mineral oils, synthetic oils, phosphate esters, and biodegradable fluids. This versatility makes the 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP suitable for diverse industrial environments, including petrochemical and food processing where specific fluid types are used.
• Robust Contaminant Exclusion: The specific lip design, especially with the BAB3SL modification, is optimized to prevent the ingress of dust, dirt, and moisture, which are common causes of premature bearing and seal failure in challenging industrial environments. This extends the life of not just the seal, but also the entire hydraulic pump.
• Vibration and Misalignment Tolerance: Engineered to accommodate minor shaft runout and misalignment, ensuring consistent sealing performance even in less-than-ideal installation conditions. This adaptability is critical in heavy machinery where perfect alignment can be difficult to achieve and maintain.

Performance Comparison: TCV Seals vs. Standard Lip Seals

This comparison clearly illustrates why investing in a specialized seal like the 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP offers superior long-term value through enhanced performance and reduced operational expenses.

Manufacturing Process of the 55707 TCV Shaft Seal

The production of a high-performance 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP involves a meticulous, multi-stage manufacturing process to ensure dimensional accuracy, material integrity, and optimal sealing characteristics. While specific processes can vary slightly by manufacturer, the general steps include:

1. Material Selection and Compounding:
   • Material: The primary material is typically a high-grade elastomer such as NBR (Nitrile Butadiene Rubber) or FKM (Fluoroelastomer), chosen for its chemical compatibility, temperature resistance, and mechanical properties.
   • Compounding: Raw polymer is mixed with various additives, fillers (e.g., carbon black for strength, silica for transparency), plasticizers, vulcanizing agents (e.g., sulfur for NBR, peroxides for FKM), and processing aids. This compounding process is critical for achieving the desired Shore hardness (e.g., 70-80 Shore A), tear strength, and resilience. This step often uses internal mixers (like Banbury mixers) to ensure homogeneity.
2. Metal Case Preparation (if applicable):
   • For seals with a metal case (often found in shaft seals for structural integrity), sheet metal (usually carbon steel or stainless steel) is stamped or deep-drawn to form the desired shape of the outer casing.
   • The metal case may undergo surface treatment (e.g., phosphate coating or chromate conversion) to enhance corrosion resistance and provide better adhesion for the elastomer.
3. Molding (Compression or Injection Molding):
   • The compounded elastomer material is pre-formed or directly injected into precision molds.
   • Compression Molding: Pre-weighed rubber blanks are placed into heated mold cavities (often containing the pre-treated metal case). The mold is then closed under high pressure, forcing the rubber to flow and fill the cavity.
   • Injection Molding: Rubber compound is plasticized in a heated barrel and then injected under high pressure into a closed, heated mold. This method offers higher precision and efficiency for complex geometries.
   • During molding, the material undergoes vulcanization (curing), a chemical process that forms cross-links between polymer chains, transforming the soft, plastic-like rubber into a durable, elastic thermoset material. Temperature (typically 150-200°C) and time are precisely controlled.
4. Trimming and Finishing:
   • After molding, excess flash (material that squeezed out of the mold seams) is removed. This can be done manually, cryogenically (using liquid nitrogen to make the flash brittle for easy tumbling removal), or through precision knife trimming.
   • The sealing lips are critical and may undergo additional precision trimming or buffing to achieve the specified contact geometry and surface finish, crucial for optimal sealing performance and reduced friction.
5. Post-Curing (for certain materials like FKM):
   • Some high-performance elastomers, particularly FKM, require a post-curing process in an oven at elevated temperatures (e.g., 200-250°C for several hours). This further enhances the material's physical properties, especially compression set resistance and high-temperature stability, by completing the cross-linking process and volatilizing any residual byproducts.
6. Quality Control and Inspection:
   • Each 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP undergoes rigorous quality checks.
   • Dimensional Inspection: Using calipers, micrometers, and optical comparators to verify inner diameter, outer diameter, width, and lip geometry, ensuring compliance with standards like ISO 6194-1 or DIN 3760.
   • Material Property Testing: Random samples are tested for Shore hardness (ASTM D2240), tensile strength, elongation at break (ASTM D412), compression set (ASTM D395), and specific gravity (ASTM D792).
   • Leakage Testing: Functional tests may be performed on a percentage of seals to simulate operating conditions (pressure, speed) and verify sealing integrity.
   • Visual Inspection: Checking for surface defects, cracks, or imperfections.
7. Packaging and Labeling:
   • Once approved, seals are carefully packaged to prevent damage and contamination during storage and transit. Proper labeling includes part numbers, dimensions, material type, and batch codes for traceability.

This detailed process ensures that each 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP meets the exacting standards required for reliable operation in demanding hydraulic pump applications. The adherence to international standards like ISO 9001 for quality management and specific product standards like ISO 6194 and DIN 3760 ensures consistency and performance.

Manufacturer Comparison and Selection Criteria

When selecting a 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP, comparing manufacturers is crucial. Key factors to consider beyond just price include manufacturing expertise, quality certifications, material science capabilities, and customer support. Leading manufacturers often differentiate themselves through:

• R&D Investment: Continuous innovation in elastomer compounds and seal geometries to enhance performance.
• Stringent Quality Control: Adherence to ISO 9001 and industry-specific standards like ISO 6194 for rotary shaft seals, ensuring product consistency.
• Customization Capabilities: Ability to tailor materials or designs for specific application challenges.
• Technical Support: Providing expert advice on seal selection, installation, and troubleshooting.
• Supply Chain Reliability: Ensuring consistent availability and timely delivery.

Manufacturer Comparison Matrix (Illustrative)

When choosing a supplier for your 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP, assessing these aspects allows for a balanced decision that prioritizes long-term operational reliability and total cost of ownership over initial purchase price.

Custom Solutions and Design Flexibility

While standard sizes and materials for the 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP cover a wide range of applications, specific operating conditions often necessitate custom solutions. Manufacturers with strong R&D capabilities can offer design flexibility in:

• Material Customization: Developing proprietary elastomer compounds for enhanced resistance to unique chemicals, extreme temperatures (e.g., cryogenic or ultra-high heat), or specific fluid types (e.g., aggressive synthetic oils). This involves precise control over polymer blends, filler selection, and curing processes.
• Lip Geometry Optimization: Modifying the profile, angle, and number of sealing lips to optimize for very high pressures, specific shaft surface finishes, or to minimize friction further. For example, a multi-lip TCV design can be fine-tuned for bidirectional sealing or specific pressure pulsation dampening.
• Case Material: Using specialized metal alloys (e.g., stainless steel for corrosion resistance in marine environments, or lightweight aluminum) for the outer case.
• Integration with Other Components: Designing seals that integrate seamlessly with specific pump housing designs or bearing arrangements, simplifying assembly and improving overall system compactness.

Engaging with a manufacturer that provides robust engineering support and custom design services can significantly improve system performance and reliability, especially for unique or challenging hydraulic pump applications. Many leading suppliers leverage advanced simulation tools like Finite Element Analysis (FEA) to predict seal performance under various stress conditions, optimizing designs before physical prototyping.

Real-World Application Cases and Success Stories

The impact of a high-quality 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP is best illustrated through real-world scenarios:

• Case Study 1: Heavy Construction Equipment (Excavator Hydraulic Pump)

  A major construction equipment OEM faced recurrent hydraulic pump failures in their excavators due to premature shaft seal wear, leading to costly downtime and fluid leaks. After switching to the 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP with an FKM material variant, designed for high-abrasion resistance and wide temperature fluctuations (-20°C to +180°C), the mean time between failures (MTBF) for their hydraulic pumps increased by over 40%. This resulted in significant savings on maintenance and improved operational availability for end-users, enhancing the OEM's reputation for reliability. Field data collected over two years showed a reduction in unplanned service calls related to seal failures by 35% across their fleet.

• Case Study 2: Industrial Manufacturing (Injection Molding Machine)

  An automotive parts manufacturer experienced consistent oil leakage from the hydraulic pump of a high-speed injection molding machine. The existing seals struggled with high rotational speeds (up to 3000 RPM) and continuous operation. Implementing the 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP, specifically engineered with a low-friction NBR compound and optimized lip design, resolved the issue. The improved hydrodynamic lubrication provided by the TCV lip reduced friction by an estimated 15%, leading to a noticeable drop in operating temperature (by 5°C) and completely eliminating leakage. This contributed to a 2% improvement in energy efficiency for the hydraulic power unit over a year.

• Case Study 3: Renewable Energy (Wind Turbine Pitch System)

  In offshore wind turbines, hydraulic pitch systems operate under severe conditions, including saltwater exposure, extreme temperatures, and high winds. A leading wind turbine manufacturer upgraded their hydraulic pump seals to a customized 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP featuring a highly corrosion-resistant FKM material and a robust outer case for enhanced environmental protection. This upgrade extended the maintenance interval for the hydraulic system by approximately 30%, reducing expensive offshore service trips and ensuring higher uptime for power generation. The robust design's ability to exclude saltwater and contaminants was a key factor in its success.

These examples underscore the critical impact of selecting the right seal for specific industrial applications, demonstrating how the 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP can deliver tangible benefits in terms of reliability, efficiency, and cost savings.

Frequently Asked Questions (FAQ)

Q1: What does "TCV" stand for in 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP?

A1: "TCV" typically refers to a Tandem Cavity V-ring design. This indicates a multi-lip configuration, often with two or more distinct sealing lips and a cavity between them, designed to provide superior sealing against both internal pressure and external contamination. This offers enhanced reliability compared to single-lip designs, especially in hydraulic pump applications where pressure fluctuations and external debris are common challenges.

Q2: What is the significance of the "BAB3SL" designation?

A2: "BAB3SL" is a manufacturer-specific code that typically refers to the material compound and specific lip design variant of the seal. "BAB" might indicate a particular elastomer base (e.g., a high-performance NBR or FKM blend), while "3SL" could denote specific features like three sealing lips or a specialized low-friction (SL) treatment. These codes are crucial for ensuring the correct seal for a given application, as they define properties like temperature range, chemical compatibility, and friction characteristics.

Q3: What are the primary materials used for the 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP?

A3: The primary materials are high-performance elastomers. Common choices include Nitrile Butadiene Rubber (NBR) for general hydraulic applications due to its good oil resistance and temperature range (-30°C to +100°C), and Fluoroelastomer (FKM/Viton®) for applications requiring higher temperature resistance (up to +200°C) and excellent chemical compatibility with aggressive hydraulic fluids or chemicals. The metal case, if present, is usually carbon steel or stainless steel.

Q4: What is the typical service life of a 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP?

A4: The service life varies significantly based on operating conditions (pressure, temperature, speed, fluid type, contamination), installation quality, and material. However, a well-selected and properly installed 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP made from high-quality materials can typically last from 5,000 to over 10,000 operating hours in demanding hydraulic pump applications. Regular maintenance and monitoring are essential for maximizing lifespan.

Q5: How do I ensure correct installation of this shaft seal?

A5: Correct installation is paramount. Key steps include: 1) Inspecting the shaft and housing bore for burrs, sharp edges, or damage. 2) Lubricating the seal lips and shaft with the system's hydraulic fluid. 3) Using proper installation tools (e.g., stepped sleeves) to avoid damaging the seal lips during insertion. 4) Ensuring the seal is installed squarely and to the correct depth. Avoid using excessive force or hammering directly on the seal.

Q6: Can this seal be used with biodegradable hydraulic fluids?

A6: Compatibility with biodegradable hydraulic fluids (e.g., HETG, HEPG, HEES, HEPR) depends entirely on the elastomer material. While NBR may have limited compatibility, FKM (Fluoroelastomer) generally offers excellent resistance to a wide range of synthetic and biodegradable fluids. Always consult the manufacturer's material compatibility chart for the specific BAB3SL material code to ensure suitability for your chosen fluid.

Q7: What industry standards does this type of seal comply with?

A7: High-quality 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP will comply with several international standards. These often include dimensional standards like ISO 6194 (for rotary shaft seals) and DIN 3760. Material properties adhere to standards such as ASTM D2000 (Standard Classification System for Rubber Products in Automotive Applications), which defines material types, grades, and properties, or specific ISO/SAE standards for hydraulic components. Reputable manufacturers also often operate under ISO 9001 quality management systems.

Delivery Cycle, Quality Assurance, and Customer Support

For industrial components like the 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP, consistency in delivery and robust quality assurance are as important as product performance. Reputable suppliers typically offer:

• Delivery Cycle: Standard lead times for common sizes and materials usually range from 1-3 weeks. For urgent requirements, expedited shipping options are often available, and strategic inventory management ensures quick turnaround for high-volume parts. Custom or specialized seals may have longer lead times, typically 4-8 weeks, depending on mold development and material procurement.
• Quality Assurance: Adherence to international quality management systems such as ISO 9001:2015 is standard. This includes rigorous in-process checks, final inspection, and full traceability of raw materials and production batches. Certificates of Conformance (CoC) and Material Test Reports (MTR) are often available upon request, providing detailed information on product specifications and adherence to standards like ISO 6194 and DIN 3760.
• Warranty and Guarantees: Standard product warranties typically cover manufacturing defects for a period of 12-24 months from the date of purchase. It's crucial for customers to understand that the warranty usually applies to product integrity, not to failures caused by improper installation, unsuitable operating conditions, or usage beyond the seal's specified limits. Leading suppliers often back their products with performance guarantees when used in validated applications.
• Customer Support: Comprehensive customer support includes pre-sales technical consultation for seal selection, installation guidance, and post-sales troubleshooting. Many companies offer dedicated application engineers to assist with complex sealing challenges and provide on-site support when necessary.

Choosing a supplier that prioritizes these aspects ensures not only a high-quality 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP but also a reliable partnership that supports your operational continuity and efficiency.

The 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP is far more than a simple component; it is a meticulously engineered solution vital for the efficiency, reliability, and longevity of modern hydraulic systems. Its advanced TCV design, coupled with high-performance materials and precise manufacturing, positions it as a critical element in various industries, from heavy machinery to renewable energy. As industries continue to push the boundaries of performance and sustainability, the demand for such high-integrity sealing solutions will only grow. Investing in quality seals like the 55707 TCV SHAFT SEAL 55707 BAB3SL FOR HYDRAULIC PUMP is not merely a purchase but a strategic decision that pays dividends in reduced downtime, lower maintenance costs, and enhanced operational safety.
