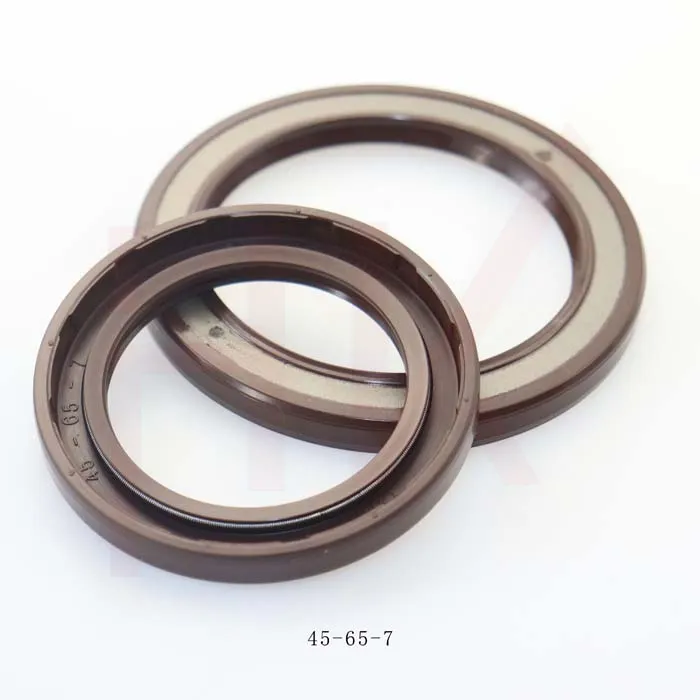

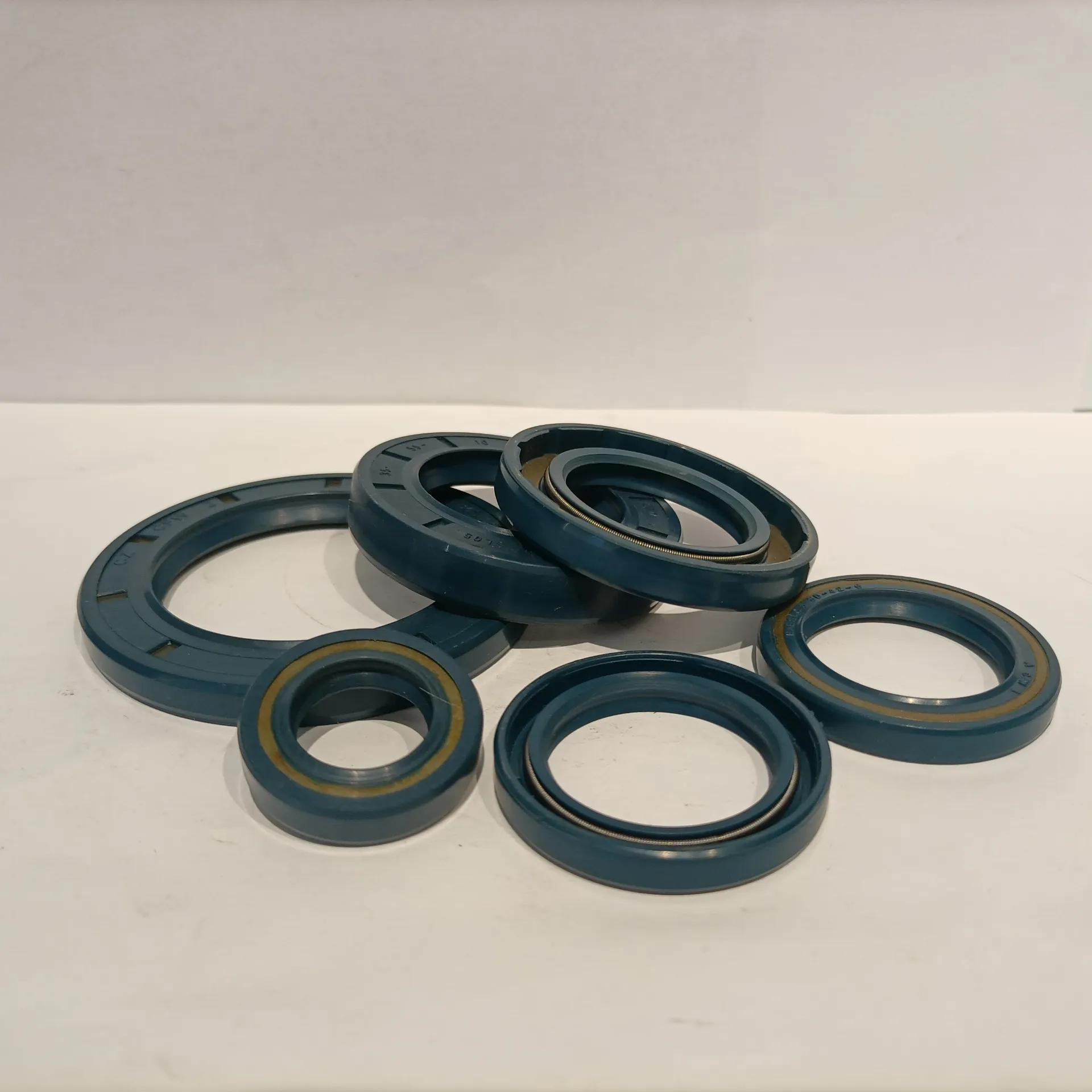

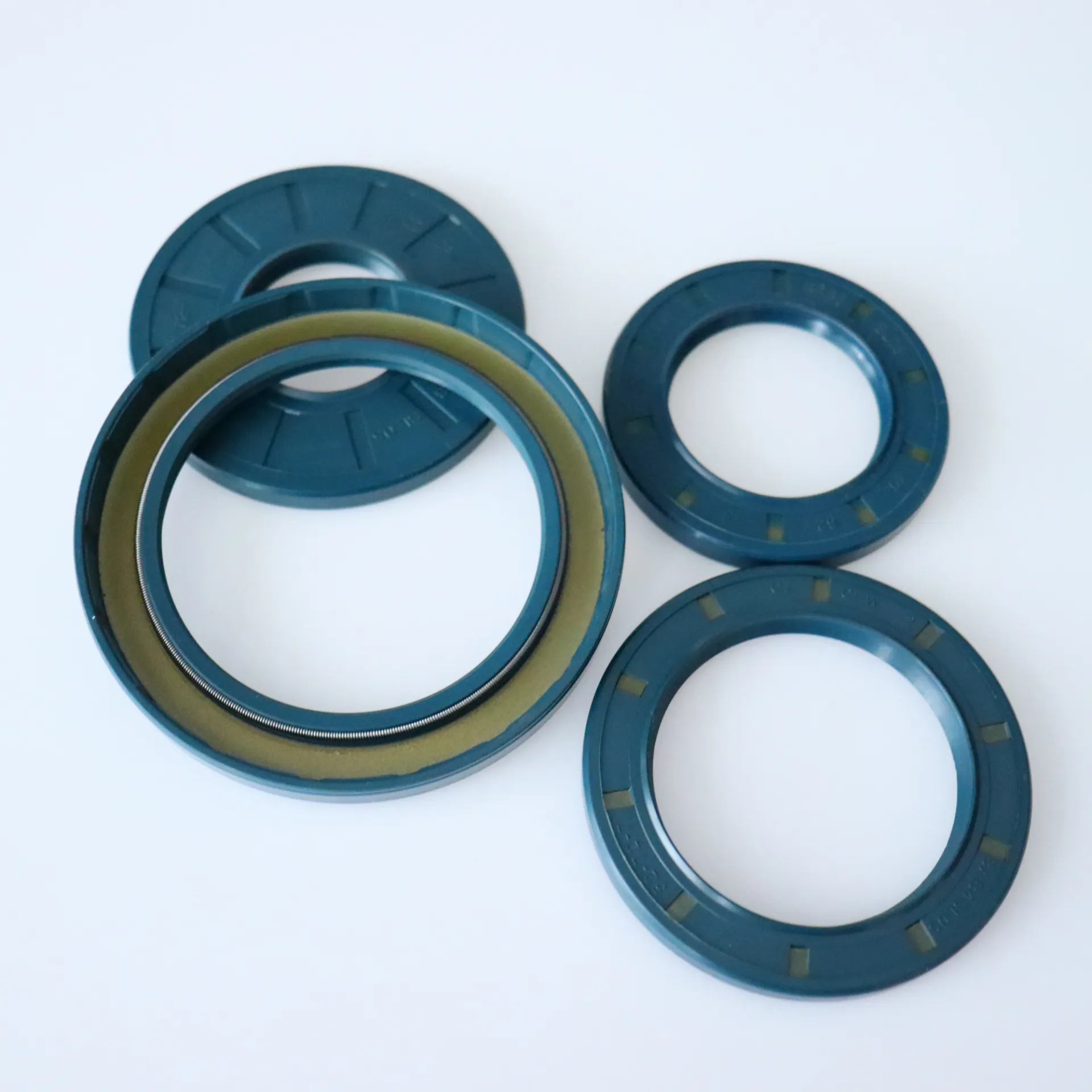

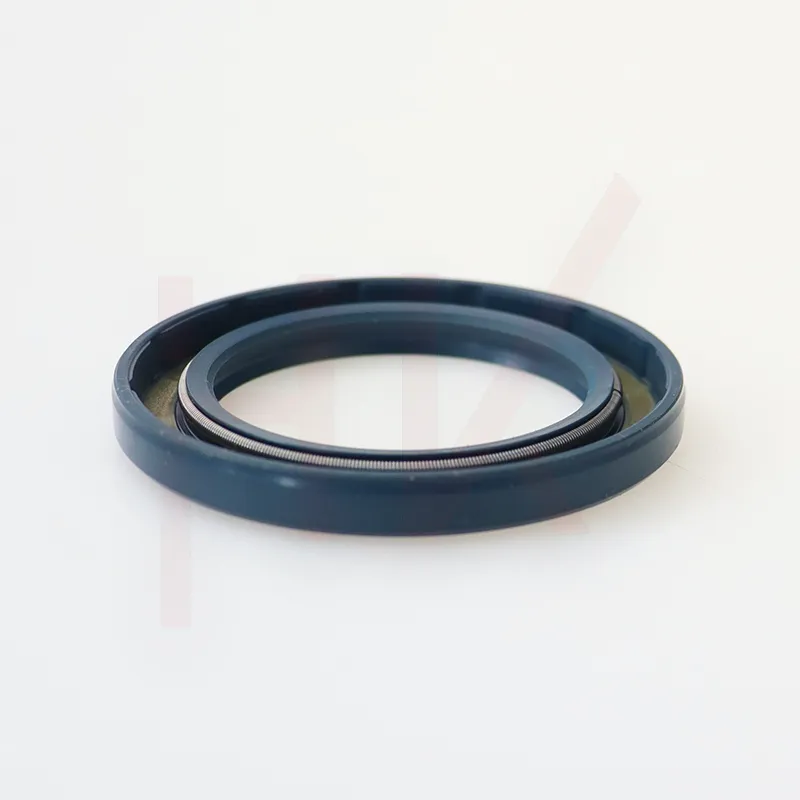

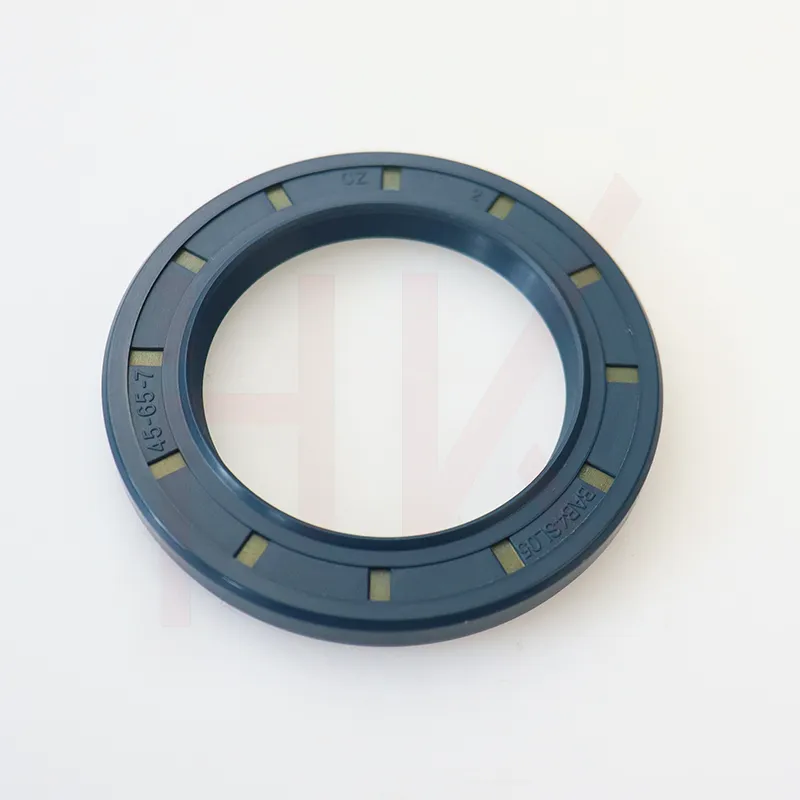

45×65×7 TCV FKM/NBR Rubber Oil Seal for Hydraulic Pump | OEM

45×65×7 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump

If you wrench on hydraulic systems for a living, you learn quickly: a tiny seal can make or break a million‑dollar machine. This one—made in the Development Zone, Julu County, Xingtai City, Hebei Province—keeps showing up on my desk and, frankly, in customer success stories. It’s a double‑lip TCV profile, rubber‑encased OD, garter spring, and it’s built for travel pumps, rotary pumps, vertical shafts—especially the hard‑working hydraulic pumps on excavators, road rollers, loaders, scrapers, dumpers, and mixer trucks.

Why the TCV build still matters

The industry is nudging toward higher pressures, hotter fluids, and longer service intervals. In fact, many fleets now expect 4,000–8,000 hours between major overhauls. A TCV profile with FKM or NBR gives a practical balance: robust dust exclusion, stable lip contact, and forgiving installation. To be honest, that last bit—install tolerance—saves more field time than people admit.

Key specifications (real‑world oriented)

Nominal size	45 × 65 × 7 mm
Profile	TCV: rubber‑covered OD, double lip with dust lip, spring‑energized
Compounds	NBR (≈70–75 Shore A), FKM (≈72–78 Shore A)
Temp range	NBR: −30 to +100 °C; FKM: −20 to +200 °C (spikes may vary)
Surface speed	Up to ≈12 m/s (shaft finish Ra 0.2–0.8 µm recommended)
Pressure	Continuous ≈0.05 bar; intermittent up to ≈0.3 bar
Media	Hydraulic oils (mineral/synthetic), diesel splash, grease
Standards	DIN 3760, ISO 6194 series, ASTM D2000 material callouts

Process flow and quality checkpoints

Compounding → compression/injection molding → vulcanization → spring assembly → post‑cure (FKM) → cryo or blade trimming → 100% visual → dynamic leak & torque testing → clean‑pack. Test refs: ISO 6194 leakage/torque checks; compound validation to ASTM D2000; oil resistance per ISO 1817. Typical service life in clean ISO 4406 17/15/12 oil: 5,000 h; dusty earthmoving: ≈3,000–6,000 h, depending on shaft hardness and runout.

Where it’s used (and what users say)

Hydraulic/travel pumps on excavators, road rollers, loaders, scrapers, dumpers, mixer trucks.
Rotary pumps, vertical shaft gearboxes, general mobile hydraulics.
Feedback: “Leak‑free after 1,800 h,” says a Hebei rental fleet; another customer noted quieter startup torque after switching to FKM in summer.

Advantages you can feel in the field

Rubber‑encased OD beds nicely into minor housing imperfections; the dust lip buys you time in muddy sites; and FKM holds line in hot synthetic oils. Actually, many customers say the installation forgiveness alone is worth it. The 45×65×7 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump balances price, durability, and availability—rare combo lately.

Vendor snapshot (what buyers compare)

Criteria	This Hebei Maker	Generic Import	EU Premium Brand
Certifications	ISO 9001; lot traceability	Varies	IATF 16949
Lead time	7–15 days	15–30 days	20–40 days
Price index	1.0 (baseline)	0.9	1.7
Customization	Lip geometry, FKM/NBR, spring metal	Limited	Extensive
QC transparency	Test sheets; photos	Seldom	Full

Quick case notes

A road‑building contractor swapped to 45×65×7 TCV oil seal FKM/NBR rubber oil seal for hydraulic pump on two mixer truck pumps mid‑season. After 2,200 hours, leak logs dropped to zero, and oil consumption fell ≈6%. Another fleet moved to FKM for a hot‑weather excavator line; the seals survived repeated 160 °C spikes without lip glazing.

Buying and customizing tips

For hot synthetics or biodiesel splash, pick FKM; for general mineral oils, NBR is fine (and cost‑friendly).
Specify shaft hardness ≥55 HRC and Ra 0.2–0.4 µm for best life.
Ask for ISO 6194 torque/leak data and ASTM D2000 line callouts on the cert sheet.
