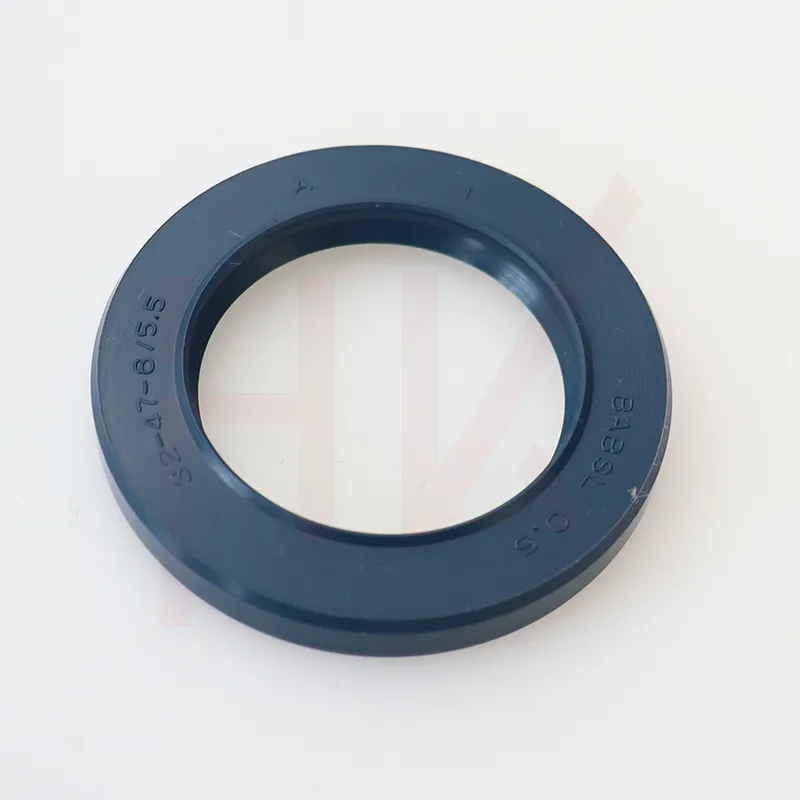

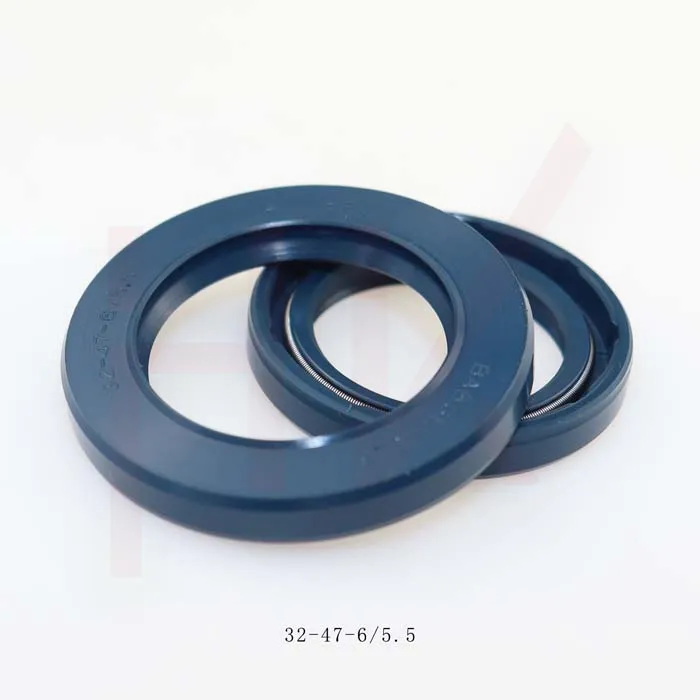

32x47x6 TCV High-Pressure Oil Seal for Hydraulic Systems

The Critical Role of High-Performance Hydraulic Oil Seals

In the demanding landscape of modern industrial hydraulics, the integrity and longevity of sealing solutions are paramount. Components must withstand extreme pressures, fluctuating temperatures, and aggressive media to ensure operational efficiency and prevent costly downtime. At the forefront of these crucial components is the 32×47×6 TCV High Pressure Oil Seal for Hydraulic Oil Seals, engineered for unparalleled performance and reliability in the most challenging applications. This article delves into the technical intricacies, application benefits, and strategic importance of such advanced sealing technology for B2B stakeholders.

Industry Trends and the Evolution of Hydraulic Sealing

The hydraulic industry is continuously evolving, driven by the demand for higher power density, increased efficiency, and extended service intervals. This necessitates sealing solutions that can handle escalating system pressures, faster operating speeds, and more aggressive hydraulic fluids. Key trends include:

• Miniaturization & Higher Power Density: Smaller hydraulic systems demand seals that perform optimally within tighter spaces, often under increased loads.
• Enhanced Material Science: Development of advanced elastomers and PTFE compounds offers superior chemical resistance, wider temperature ranges, and reduced friction.
• Sustainability & Efficiency: Seals that reduce energy consumption through lower friction and prevent leakage, thereby minimizing fluid waste, are gaining prominence.
• Smart Systems Integration: Future trends involve seals with embedded sensors for real-time condition monitoring, predictive maintenance, and operational optimization.

The demand for robust, long-lasting seals like the 32×47×6 TCV High Pressure Oil Seal for Hydraulic Oil Seals directly addresses these industry challenges, providing the reliability required for continuous operation and reducing total cost of ownership.

Technical Specifications: Deconstructing the 32×47×6 TCV Seal

The designation 32×47×6 TCV High Pressure Oil Seal for Hydraulic Oil Seals provides critical technical insights into its design and application.

• Dimensions (32×47×6):
  • 32mm: Inner Diameter (ID) – corresponds to the shaft diameter.
  • 47mm: Outer Diameter (OD) – fits into the housing bore.
  • 6mm: Axial Width – the thickness of the seal.
• TCV Profile: TCV refers to a specific type of radial shaft seal. 'TC' typically denotes a metal case with a primary sealing lip and an auxiliary dust lip, while 'V' often signifies the presence of a garter spring and a specific housing fit for high-pressure applications. This design is engineered for superior retention and enhanced sealing efficiency, particularly under dynamic high-pressure conditions, preventing both fluid egress and ingress of contaminants.
• High Pressure: This indicates the seal’s capability to withstand significantly elevated operating pressures, a critical requirement for modern hydraulic systems.
• Materials: Typically manufactured from high-performance elastomers like NBR (Nitrile Butadiene Rubber) for general hydraulic oils, FKM (Fluoroelastomer/Viton®) for aggressive fluids and higher temperatures, or HNBR (Hydrogenated Nitrile Butadiene Rubber) for enhanced wear resistance and broader chemical compatibility. The choice of material is crucial for resisting hydraulic fluids, extreme temperatures, and mechanical stress.

Key Product Specifications Table

Manufacturing Process Flow: Precision Engineering for Reliability

The production of a 32×47×6 TCV High Pressure Oil Seal for Hydraulic Oil Seals is a multi-stage, precision-driven process, critical for achieving its high-performance characteristics. Adherence to strict international standards like ISO 9001 for quality management is integral throughout.

Key Stages:

1. Material Selection & Preparation:

   Selection of high-grade elastomer compounds (e.g., NBR, FKM, HNBR) based on application requirements for chemical resistance, temperature range, and mechanical properties. Metal components for the casing are chosen for corrosion resistance and strength, typically carbon steel or stainless steel, undergoing stamping or forming.

2. Compound Mixing & Pre-forming:

   Elastomer raw materials are precisely mixed with additives (vulcanizing agents, fillers) to achieve desired characteristics. This compound is then pre-formed into specific shapes suitable for the molding process.

3. Molding & Vulcanization:

   The elastomer compound and metal case are placed into precision molds. Under controlled heat and pressure, typically via compression or injection molding, the elastomer takes its final shape, and vulcanization (curing) occurs, cross-linking the polymer chains to create a durable, elastic material. This step is critical for dimensional stability and mechanical strength.

4. Trimming & Finishing:

   Excess material (flash) is carefully removed from the molded seals. Precision trimming ensures clean sealing lips and accurate dimensions, vital for optimal performance and preventing premature wear.

5. Garter Spring Insertion:

   A precisely tensioned garter spring is inserted into the main sealing lip, providing consistent radial force on the shaft, which is essential for maintaining sealing integrity, especially under dynamic conditions and slight shaft eccentricities.

6. Post-Curing (if applicable):

   For certain high-performance elastomers (e.g., FKM), a post-curing process at elevated temperatures is performed to further stabilize material properties and enhance resistance to heat and chemicals, optimizing service life.

7. Quality Control & Testing:

   Each batch undergoes rigorous testing to comply with international standards such as ISO 6194 and DIN 3760. This includes dimensional checks, material hardness (durometer) testing, visual inspection for defects, and functional tests for sealing integrity under specified pressure and temperature. Longevity (service life) is often simulated or evaluated based on material fatigue properties and wear characteristics.

8. Packaging:

   Seals are carefully packaged to prevent damage during transit and storage, maintaining their pristine condition until installation.

Technical Advantages in Application Scenarios

The advanced design and robust manufacturing of the 32×47×6 TCV High Pressure Oil Seal for Hydraulic Oil Seals translate into significant technical advantages across various demanding industries:

• Petrochemical Industry:

  In pumps, mixers, and actuators handling various hydrocarbons and aggressive chemicals, the seal's high chemical compatibility (especially with FKM variants) and corrosion resistance ensure reliable operation, preventing hazardous leaks and extending Mean Time Between Failures (MTBF).

• Metallurgy & Heavy Machinery:

  Operating under extreme loads, high temperatures from molten metal processes, and abrasive environments, the TCV seal provides exceptional wear resistance and dynamic sealing performance for hydraulic cylinders and gearboxes in rolling mills, forging presses, and continuous casting machines. Its robust construction minimizes the risk of sudden failures, which can be catastrophic in such environments.

• Water Supply & Drainage:

  For large-scale pumps and valve actuation systems, the seal’s superior sealing integrity prevents ingress of water and abrasives while maintaining internal pressure. Its resistance to varied water chemistries and extended service life contribute to energy saving by reducing friction and preventing pressure drops, crucial for large public utilities.

• Construction & Agricultural Equipment:

  In excavators, loaders, tractors, and harvesters, these seals are vital for hydraulic cylinders, motors, and axles. They withstand severe shock loads, pervasive dirt, dust, and temperature extremes, offering excellent abrasion resistance and sealing performance to ensure consistent power transmission and extended equipment longevity.

• Energy Efficiency & Reduced Downtime:

  The precision-engineered lip design and high-quality materials contribute to a lower coefficient of friction, reducing energy losses in dynamic sealing applications. This directly translates to energy saving and reduced heat generation, prolonging not only the seal's life but also that of the hydraulic fluid and adjacent components. Enhanced reliability also significantly reduces unscheduled maintenance and associated downtime, leading to substantial operational cost savings.

Vendor Comparison and Selection Criteria

Choosing the right supplier for critical components like the 32×47×6 TCV High Pressure Oil Seal for Hydraulic Oil Seals is as important as the product itself. B2B decision-makers should evaluate vendors based on:

• Certifications: Look for ISO 9001, IATF 16949 (automotive quality), REACH, and RoHS compliance to ensure adherence to international quality and environmental standards.
• Material Expertise: A vendor's ability to provide a range of elastomer compounds tailored to specific application chemistries and temperatures.
• R&D Capabilities: Evidence of continuous innovation in seal design and material science to address evolving industry demands.
• Customization: The capacity to offer bespoke sealing solutions for unique or highly specialized applications.
• Technical Support: Availability of expert engineering support, application guidance, and troubleshooting assistance.
• Supply Chain & Logistics: Reliable lead times, efficient fulfillment processes, and global distribution capabilities.
• Track Record & Client References: Years of experience and a portfolio of successful partnerships with reputable industrial clients.

Comparison: TCV vs. Standard Radial Shaft Seals

Customized Solutions for Unique Challenges

While standard 32×47×6 TCV High Pressure Oil Seal for Hydraulic Oil Seals address a broad range of applications, many industrial scenarios present unique demands that require tailored solutions. Leading manufacturers offer extensive customization options, collaborating closely with clients to optimize seal performance. This can include:

• Alternative Elastomer Compounds: Specific formulations of NBR, FKM, HNBR, or even PTFE variants for extreme chemical resistance, high temperatures (e.g., above 200°C), or cryogenic conditions.
• Modified Lip Geometries: Custom designs to optimize contact pressure, reduce friction, or enhance exclusion capabilities for specific shaft surface finishes or dynamic movements.
• Special Garter Spring Materials: Stainless steel or other alloys for corrosive environments.
• Integrated Features: Combining sealing and bearing functions or incorporating wear bands for enhanced longevity in abrasive conditions.
• Unique Dimensions: While 32x47x6 is standard, customized ID/OD/width combinations are available to fit non-standard housings or shafts.

This collaborative engineering approach ensures that the sealing solution is perfectly matched to the operational parameters, maximizing efficiency and minimizing the risk of failure.

Application Case Studies

Case Study 1: Mitigating Leakage in High-Performance Hydraulic Presses

Industry: Metal Forming / Automotive Manufacturing
Challenge: A leading automotive parts manufacturer experienced persistent leakage and premature failure of standard hydraulic rod seals in their high-tonnage forming presses. Operating pressures frequently peaked at 25 MPa (3600 psi), and the rapid cycling caused significant heat buildup, leading to elastomer degradation and extrusion of the seal material into the extrusion gap. This resulted in frequent unscheduled maintenance, fluid loss, and production bottlenecks.

Solution: Engineers collaborated with our sealing specialists to replace the failing seals with a customized 32×47×6 TCV High Pressure Oil Seal for Hydraulic Oil Seals. The selected TCV seal featured an HNBR elastomer compound, specifically formulated for high-temperature resistance and enhanced extrusion resistance under dynamic load, combined with a robust metal casing designed for secure housing retention even during pressure spikes.

Outcome:

• Zero Leakage: Complete elimination of fluid leakage, ensuring a cleaner, safer work environment and significantly reducing hydraulic oil consumption.
• Extended Service Life: The seal's lifespan increased by over 300%, extending maintenance intervals from 3 months to over 1 year.
• Reduced Downtime: Unscheduled maintenance related to seal failure was virtually eliminated, boosting overall equipment effectiveness (OEE) by 15%.
• Cost Savings: Annual operational savings in fluid replacement, labor, and avoided production losses exceeded $50,000 per press.

Case Study 2: Enhancing Reliability in Offshore Drilling Equipment

Industry: Oil & Gas / Offshore Drilling
Challenge: A major offshore drilling contractor faced critical sealing challenges in their subsea hydraulic power units, which operate in highly corrosive saltwater environments and endure fluctuating pressures up to 20 MPa (2900 psi). Traditional seals were susceptible to rapid corrosion of metal components and degradation of elastomer materials due to hydrogen sulfide (H2S) exposure and saltwater ingress, leading to frequent failures in critical steering and lifting mechanisms.

Solution: A specialized 32×47×6 TCV High Pressure Oil Seal for Hydraulic Oil Seals was engineered with an FKM (Fluoroelastomer) compound for superior chemical resistance to H2S and hydrocarbons, and a stainless steel (SS316) casing for exceptional corrosion resistance against saltwater. The robust TCV design provided improved sealing integrity against aggressive media and prevented contamination from the external environment.

Outcome:

• Enhanced Durability: The new seals demonstrated excellent resistance to corrosion and chemical degradation, maintaining performance in harsh subsea conditions.
• Improved Operational Safety: Reduced risk of catastrophic failures in critical subsea components, improving safety protocols.
• Significant Cost Reduction: Dramatically reduced the frequency of expensive subsea equipment retrieval and repair operations, leading to substantial savings in operational expenditure.
• Extended Maintenance Cycles: Allowed for planned maintenance schedules, optimizing vessel utilization and reducing non-productive time.

Trust and Reliability: Our Commitment to Excellence (EEAT)

Our unwavering commitment to quality, expertise, and customer satisfaction forms the bedrock of our operations. We adhere strictly to global standards and rigorous testing protocols to ensure every 32×47×6 TCV High Pressure Oil Seal for Hydraulic Oil Seals meets and exceeds industry expectations.

• Certifications: Our manufacturing facilities are ISO 9001:2015 certified, guaranteeing robust quality management systems. Our products are also compliant with REACH and RoHS directives, underscoring our commitment to environmental responsibility and safety.
• Decades of Expertise: With decades of specialized experience in sealing technology, our engineering teams possess profound knowledge of material science, fluid dynamics, and application engineering. This expertise translates into highly reliable and innovative sealing solutions.
• Authoritative Testing: All seals undergo extensive internal and third-party testing according to international standards such as ISO 6194, DIN 3760, and SAE J110b. This includes endurance testing, pressure cycling, temperature resistance tests, and material compatibility assessments to validate performance data.
• Trusted Partnerships: We serve a diverse portfolio of leading B2B clients across heavy industry, aerospace, automotive, and energy sectors, who rely on our consistent quality and technical support for their most critical applications.

Frequently Asked Questions (FAQ)

Lead Time, Warranty, and Customer Support

Lead Time: For standard dimensions and materials, typical lead times range from 2-4 weeks, depending on order volume. Custom orders or specialized material requirements may extend lead times, which will be provided with a detailed quote. Expedited services are available upon request.

Warranty: We stand behind the quality and performance of our products. All seals are covered by a [insert specific warranty period, e.g., 12-month] warranty against manufacturing defects and material failures under specified operating conditions. Full warranty terms and conditions are available upon request.

After-Sales Support: Our dedicated customer support and technical assistance teams are available to provide comprehensive post-purchase support, including installation guidance, troubleshooting, and application engineering consultation. We are committed to ensuring the long-term success of your operations.

Conclusion

The 32×47×6 TCV High Pressure Oil Seal for Hydraulic Oil Seals represents a pinnacle in advanced sealing technology, meticulously engineered to meet the rigorous demands of modern hydraulic systems. Its robust design, premium material construction, and adherence to stringent manufacturing and testing standards deliver unparalleled reliability, extended service life, and significant operational efficiencies. For B2B decision-makers and engineers seeking to optimize hydraulic system performance, reduce maintenance costs, and ensure uninterrupted operation, this high-performance seal offers a strategic advantage. Partnering with a specialist vendor who emphasizes quality, customization, and comprehensive support ensures that your investment in sealing technology translates into superior performance and long-term value.

References:

1. ISO 6194-1: Rotary shaft lip type seals, Dimensions and tolerances. International Organization for Standardization.
2. DIN 3760: Radial shaft seals for rotating shafts. Deutsches Institut für Normung.
3. SAE J110b: Radial Lip Type Oil Seals for Rotating Shafts. Society of Automotive Engineers.
4. Parker O-Ring Handbook, O-Ring & Engineered Seals Division.
5. Freudenberg Sealing Technologies, "Sealing Handbook".
