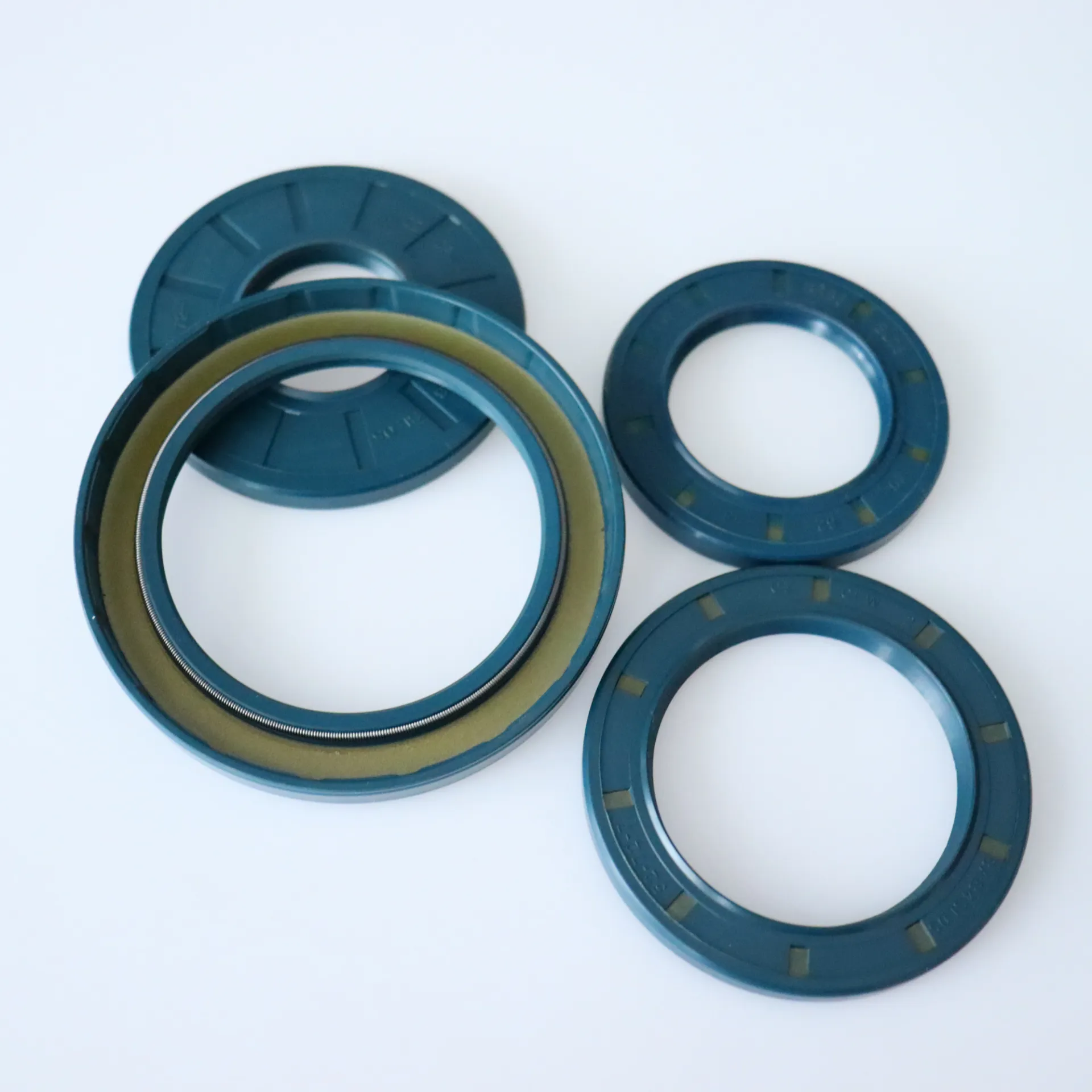

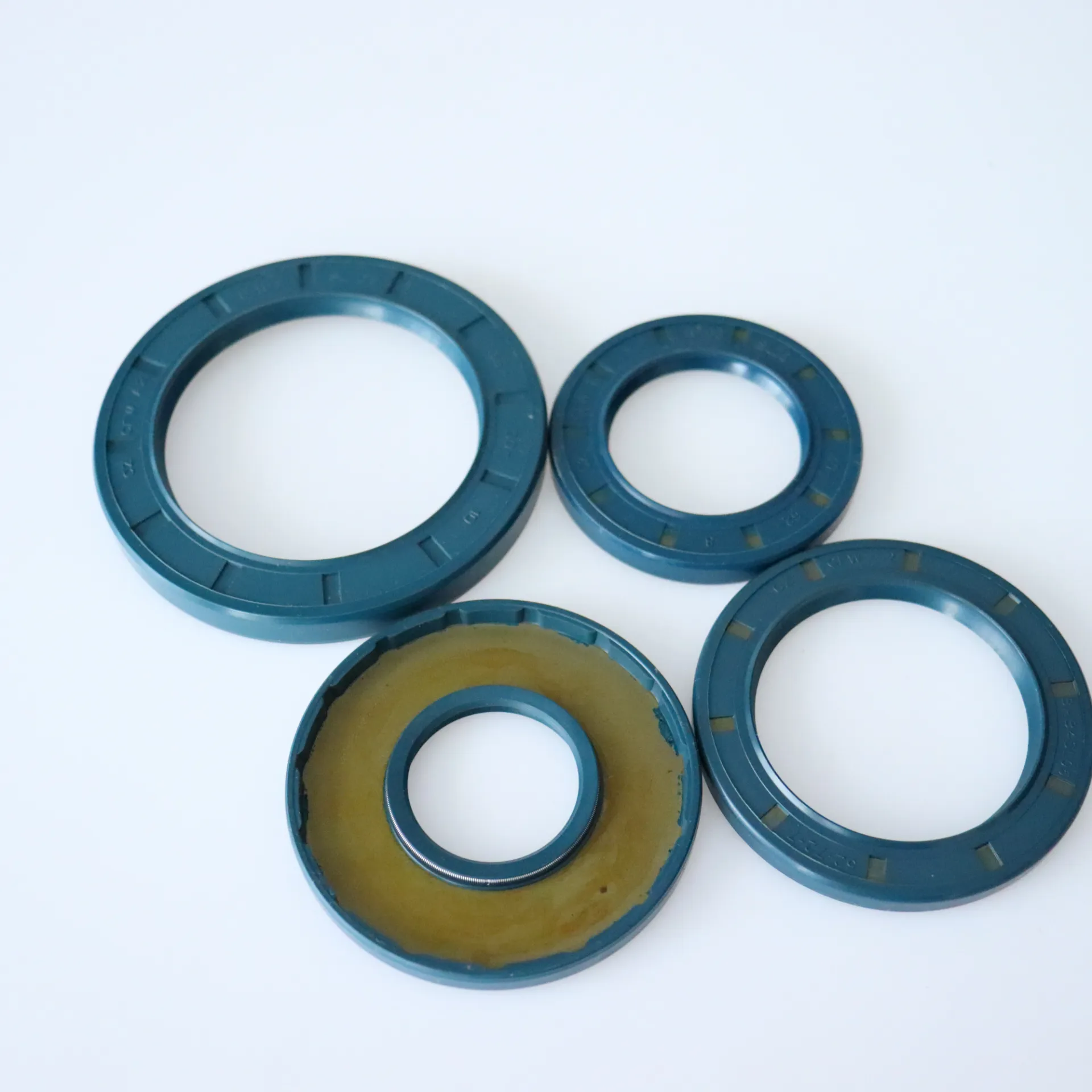

A field-tested look at the 27.7×40×6 Tcv Oil Seal High Pressure Oil Seal

If you spend time around hydraulic repair shops, you hear the same refrain: “Don’t skimp on the seal.” I agree. This size—27.7×40×6—shows up in compact, high-load pump assemblies, and when it fails, downtime bites. I recently spoke with a maintenance lead who swore that a well-made TCV lip profile was the difference between weekly top-ups and a clean shop floor. That’s why the 27.7×40×6 Tcv Oil Seal High Pressure Oil Seal, made in the Development Zone, Julu County, Xingtai City, Hebei Province, caught my eye.

Where it fits in the real world

This TCV oil seal is aimed at hydraulic, travel, and rotary pumps—often vertical shafts—in earth-moving machinery: excavators, road rollers, land scrapers, shovel loaders, self-discharging trucks, mixer trucks. In practice, we see it used to control oil migration under pressure spikes, dust ingress on muddy sites, and shaft runout that isn’t perfect (is it ever?). Many customers say they swapped similar TC profiles for TCV on travel motors and immediately cut weeping at the seal lip.

Product specifications (key data)

Why teams pick this seal

• Reinforced TCV lip resists pulsation in hydraulic pumps.
• Dust lip keeps abrasive fines out—surprisingly effective on vertical shafts.
• Material flexibility: NBR for value; FKM for heat and oil resistance; HNBR as a middle ground.
• Reported service life: 2,000–4,000 hours in construction duty, depending on alignment and oil cleanliness.

Manufacturing flow and testing

Materials are compound-mixed (per ASTM D2000 callouts), compression/injection molded, post-cured, and case-crimped. Springs are stainless or carbon steel, shot-peened. Each batch gets 100% visual inspection, lip concentricity checks, and bench leakage tests against ISO 6194-4 methods. Internal test snapshot: 0.6 MPa at 120 °C for 72 h, leakage <1.5 ml/h; shaft 60 HRC, Ra 0.15 μm. To be honest, results do vary with shaft runout and oil type.

Case notes from the field

A rental fleet of 12-ton excavators had travel motor seepage after rebuilds. Swapping to 27.7×40×6 Tcv Oil Seal High Pressure Oil Seal in FKM, plus a quick polish to Ra ≈0.2 μm, cut oil loss by ~70% over 1,000 hours. The site manager’s words, not mine: “Finally stopped the mess under the tracks.”

Industry trend check

We’re seeing more high-pressure lip geometries paired with low-friction compounds, and a quiet shift to FKM/HNBR as standard on heavy duty pumps. Predictive maintenance is nudging shops to spec seals by pressure spike tolerance, not just temperature.

Vendor snapshot (rough guide)

Customization tips

Ask for FKM + PTFE scarf-cut backup ring if pressure spikes are chronic. Consider phosphated case for corrosion, and pre-lube the lip for first start. For misalignment-prone shafts, a slightly stiffer spring rate can help—though, I guess, it raises heat a bit.

Bottom line: the 27.7×40×6 Tcv Oil Seal High Pressure Oil Seal is a pragmatic upgrade for compact hydraulic pumps that see dirt, heat, and pulsation. Spec it properly and it just quietly does the job.

Authoritative citations

1. ISO 6194 (Parts 1–4): Rotary shaft lip-type seals – Dimensions and performance requirements. https://www.iso.org
2. DIN 3760/3761: Rotary shaft seals – General, dimensions, materials. https://www.din.de
3. ASTM D2000: Standard Classification System for Rubber Products in Automotive Applications. https://www.astm.org
4. ISO 9001:2015 Quality management systems – Requirements. https://www.iso.org
