wiper seal types

Understanding Wiper Seal Types A Comprehensive Guide

Wiper seals are essential components used in various industries, particularly in machinery and automotive applications. They play a crucial role in preventing the ingress of dirt and moisture while retaining lubrication, thereby enhancing the longevity and efficiency of moving parts. Understanding the different types of wiper seals is vital for selecting the right one for specific applications.

1. Types of Wiper Seals

Wiper seals can be categorized into several types based on their design and application. The most common types include lip seals, scraper seals, and U-cup seals.

- Lip Seals These seals feature a rubber lip that makes contact with the rod or piston surface. The design allows for effective sealing against fluids and contaminants. Lip seals are widely used in hydraulic cylinders and pneumatic applications due to their versatility and ability to handle various pressures.

- Scraper Seals As the name suggests, scraper seals are designed to remove dirt, debris, and other contaminants from the surface of rods or pistons. They are typically installed in environments where there is a high likelihood of foreign particles entering the sealing area. Scraper seals are often used in construction and agricultural machinery.

- U-Cup Seals U-cup seals are shaped like the letter U and provide excellent sealing capabilities. They are commonly used in hydraulic applications due to their ability to withstand higher pressures. The design allows them to accommodate both dynamic and static sealing, making them highly versatile.

2. Materials Used in Wiper Seals

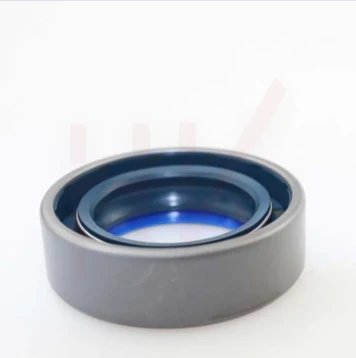

wiper seal types

The performance and durability of wiper seals largely depend on the materials used in their construction. Common materials include polyurethane, nitrile rubber, and silicone.

- Polyurethane Known for its excellent wear resistance and flexibility, polyurethane is ideal for dynamic applications.

- Nitrile Rubber (NBR) This material is commonly used for its oil resistance and durability, making it suitable for various industrial applications.

- Silicone While not as wear-resistant as other materials, silicone seals can withstand extreme temperatures, making them suitable for specialized applications.

3. Applications of Wiper Seals

Wiper seals are utilized in a wide range of applications, including hydraulic cylinders, pneumatic tools, and conveyor systems. Their primary function is to protect the internal components from contaminants while ensuring the smooth operation of machinery.

In conclusion, selecting the right wiper seal type is essential for ensuring efficiency and longevity in machinery. By understanding the different types, materials, and applications, engineers and technicians can make informed choices that enhance performance and reliability in their respective fields.
