Innovative Solutions for Enhanced Performance of Radial Oil Seals in Industrial Applications

Understanding Radial Oil Seals An Essential Component in Mechanical Systems

Radial oil seals, often referred to as radial lip seals, are critical components in various mechanical systems, particularly in automotive and industrial applications. These seals are designed to retain oil within a system while preventing contaminants such as dirt and moisture from entering. The effectiveness of radial oil seals plays a crucial role in ensuring the longevity and optimal performance of machinery.

Structure and Design

A radial oil seal consists of several key components a flexible elastomeric sealing lip, a steel or plastic outer casing, and sometimes a spring that exerts pressure on the sealing lip. The sealing lip is the primary part of the seal that makes contact with the shaft. It is designed to deform slightly as it encircles the shaft, creating a tight seal that minimizes leakage. The outer casing is typically press-fitted into a housing, ensuring stability and resistance to the potential forces in play.

The design of radial oil seals can vary depending on their application. Some seals have additional features, such as lip configurations or enhanced materials, to cater to specific operating conditions. For instance, seals used in high-temperature environments may be manufactured from specialized polymers capable of withstanding extreme conditions without degrading.

Working Principle

The working principle of a radial oil seal revolves around the formation of a barrier that separates lubricating oil from the outside environment. As the shaft spins, the sealing lip makes contact with its surface. The pressure created by the rotation and the inherent flexibility of the seal allows it to maintain contact, thus creating a dynamic seal. At the same time, the design of the seal helps to channel any oil that might attempt to escape back into the main oil reservoir.

One of the remarkable features of radial oil seals is their ability to handle slight misalignments and shaft movement. This flexibility helps reduce wear on both the seal and the shaft, leading to improved durability and performance.

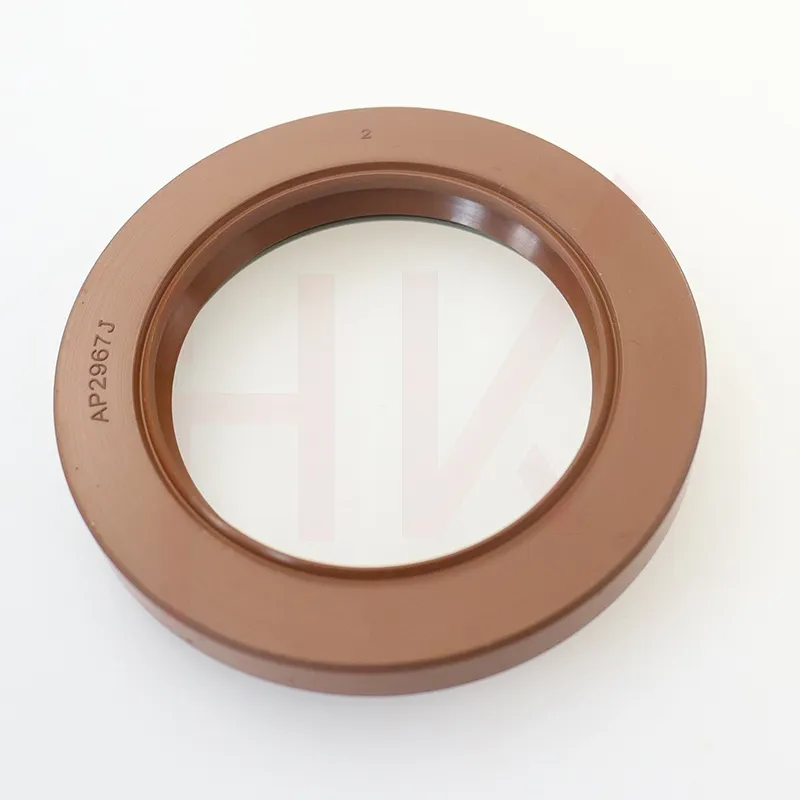

radial oil seal

Applications

Radial oil seals are extensively used in various industries, including automotive, aerospace, manufacturing, and even household appliances. In automotive applications, they are commonly found in engines, transmissions, and differentials, ensuring that lubricants remain within the required components while preventing dirt and debris from contaminating the oil.

In industrial settings, these seals are used in gearboxes, motors, and pumps, where they help maintain the necessary lubrication for smooth operation. Additionally, their versatility makes them suitable for a range of environments, from high-speed machinery to heavy-duty equipment.

Maintenance and Replacement

While radial oil seals are designed for durability, they are not immune to wear and tear. Factors such as operating temperature, exposure to chemicals, and mechanical stresses can lead to seal degradation over time. Signs of a failing oil seal may include oil leakage, increased noise from machinery, or contamination of lubricants.

Regular inspection and maintenance of radial oil seals are essential to ensure the reliability of the systems they protect. In cases where a seal is found to be compromised, timely replacement is crucial to prevent further damage to the equipment.

Conclusion

Radial oil seals are vital components that ensure the efficient operation of numerous mechanical systems. Their unique design and functional properties provide an effective barrier against oil leakage and contamination. Understanding their role, applications, and maintenance can help in optimizing machinery performance and extending operational life. As industries continue to advance, the importance of oil seals will only grow, underscoring the need for continued innovation in their design and materials.
