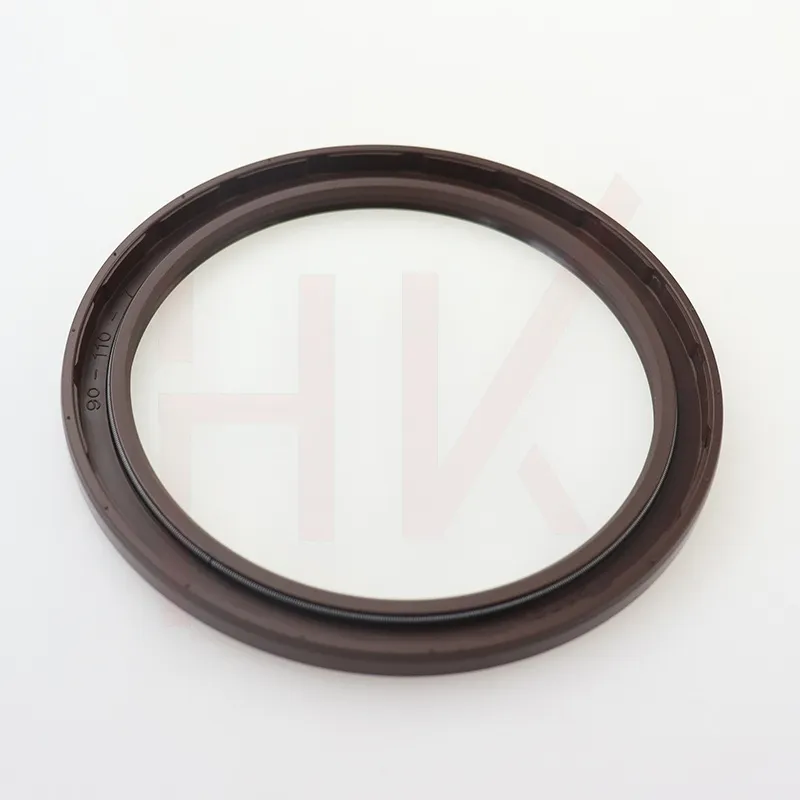

Durable Dual Lip Oil Wiper Seal for Enhanced Performance and Longevity

Understanding Double Lip Wiper Seals A Comprehensive Guide

In various mechanical applications, ensuring efficient sealing solutions is critical for maintaining operational integrity and prolonging the lifespan of equipment. One such effective sealing innovation is the double lip wiper seal. This article delves into the structure, function, applications, advantages, and considerations for using double lip wiper seals.

Structure and Function

A double lip wiper seal consists of two flexible lips crafted from elastomeric materials, usually rubber or thermoplastic. These two lips are strategically designed to operate together to provide superior sealing against contaminants while allowing for the movement of rods, pistons, or shafts. The design not only enhances the seal's capability to wipe away dirt and debris but also maintains lubrication within the machinery.

The primary function of the double lip wiper seal is to prevent external contaminants—such as dust, dirt, and moisture—from entering sensitive areas of machinery, such as hydraulic cylinders and pneumatic systems. By wiping away potential contaminants as the moving parts traverse the seal, the double lip design minimizes wear and tear, thereby maximizing efficiency.

Applications

Double lip wiper seals are versatile and find application across various industries, including

1. Automotive These seals are used in shock absorbers, steering gear, and suspension systems, where they prevent dirt ingress while ensuring proper lubrication.

2. Hydraulics In hydraulic cylinders, double lip wiper seals are essential for protecting internal components from abrasive particles and fluids.

3. Pneumatics In pneumatic systems, sealing air and preventing the entry of dust is crucial, making double lip wiper seals integral to performance.

4. Industrial Equipment They are employed in a range of machinery, conveyors, and equipment where minimizing downtime due to contamination is vital.

5. Aerospace In aerospace applications, where reliability and safety are paramount, these seals help sustain optimal performance in extreme environments.

Advantages of Double Lip Wiper Seals

1. Enhanced Protection The dual lip design enhances the sealing effect, providing better protection against contaminants than single lip seals.

2. Extended Service Life By keeping impurities out and ensuring proper lubrication, double lip wiper seals can significantly extend the service life of machinery components.

3. Reduced Maintenance With lower susceptibility to contamination, machinery that utilizes double lip wiper seals often experiences reduced maintenance needs and costs.

4. Material Versatility The seals can be constructed from various materials suited for different environments, making them adaptable to numerous applications.

5. Cost-Effectiveness Although they may be slightly more expensive than single lip seals, the long-term savings from reduced downtime and maintenance often outweigh the initial investment.

Considerations When Using Double Lip Wiper Seals

While double lip wiper seals offer numerous benefits, several considerations must be taken into account for optimal performance

1. Selection of Material The choice of elastomeric materials is crucial, as different materials exhibit varying degrees of resistance to temperature, chemical exposure, and wear.

2. Proper Installation Ensuring accurate installation is vital to prevent misalignment, which can lead to seal failure. Operators should follow manufacturer guidelines when installing these seals.

3. Operational Environment Understanding the operational environment, including temperature extremes and exposure to chemicals, will aid in selecting the appropriate seal for specific applications.

4. Regular Inspection Even with advanced sealing solutions, regular inspection and maintenance are necessary to detect any signs of wear and ensure the continued efficacy of the seals.

5. Compatibility with Fluids It is imperative to ensure that the seal material is compatible with the fluids it will encounter to avoid premature degradation.

Conclusion

In summary, double lip wiper seals are a significant advancement in sealing technology, offering extensive protection and performance improvement across various industries. Their unique design enables them to effectively combat contaminants while enabling the smooth operation of machinery. By understanding the advantages and considerations associated with these seals, engineers and maintenance professionals can select the most appropriate sealing solutions to enhance machinery reliability and efficiency. Whether in automotive, aerospace, or industrial applications, double lip wiper seals prove to be a vital component in safeguarding equipment and enhancing operational effectiveness.
