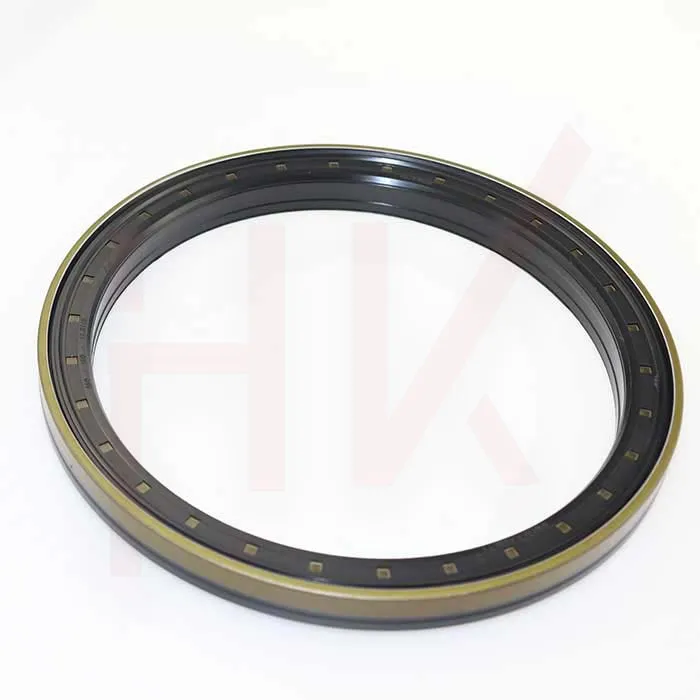

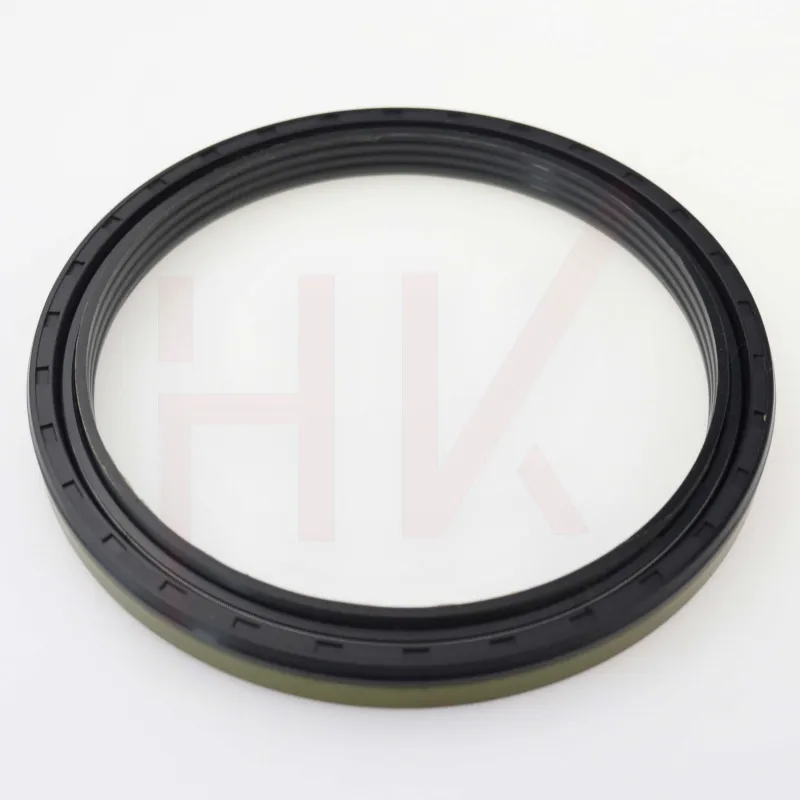

Cassette Seal 15018014.5/16 Hub Oil Seal | OEM Quality 000051785

Navigating the Landscape of High-Performance Sealing Solutions

The industrial sector, particularly in heavy machinery, automotive, and agricultural applications, demands increasingly robust and reliable sealing solutions. Downtime due to seal failure can result in significant operational losses, making the selection of high-quality components paramount. Among these critical components, the cassette seal stands out for its advanced design, engineered to offer superior protection in challenging environments. This article delves into the specifics of a crucial component: the Cassette seal 15018014.5/16 hub oil seal 000051785 7380606901 51785. We will explore its technical aspects, manufacturing precision, diverse applications, and the strategic advantages it offers to B2B decision-makers and engineers.

Current industry trends emphasize longer service life, reduced friction, lower energy consumption, and enhanced resistance to harsh operating conditions. As machinery operates at higher speeds and loads, the demand for seals that can withstand abrasive media, extreme temperatures, and chemical exposure grows. This particular cassette seal, with its integrated design, addresses these needs by offering a comprehensive sealing solution that mitigates contamination and retains lubrication effectively, thereby extending the lifespan of critical hub components.

Technical Specifications and Structural Integrity

The Cassette seal 15018014.5/16 hub oil seal 000051785 7380606901 51785 is engineered as a robust, pre-assembled unit designed for demanding applications. Its dimensions – an inner diameter of 150mm, an outer diameter of 180mm, and a dual width of 14.5mm (sealing lip section) / 16mm (overall width) – indicate its suitability for heavy-duty hub assemblies where shaft eccentricity and angular misalignment can be significant challenges. The "cassette" design refers to its multi-lip structure, which includes several sealing lips and an integrated rotating sleeve, forming a labyrinth seal. This design prevents abrasive contaminants, such as dust, dirt, mud, and water, from entering the bearing cavity while effectively retaining lubricating oil or grease.

Key Technical Parameters:

The sophisticated internal geometry incorporates multiple radial sealing lips, usually three to five, each performing a specific function. The innermost lip typically provides primary dynamic sealing against the lubricant, while subsequent lips act as exclusion barriers against external contaminants. The integrated rotating sleeve ensures that the sealing lips always run on a clean, precisely machined surface, independent of the shaft's condition. This self-contained design significantly simplifies installation and eliminates the need for a precisely finished shaft surface, which is a common requirement for conventional radial shaft seals.

Precision Manufacturing Process Flow

The manufacturing of a high-performance Cassette seal 15018014.5/16 hub oil seal 000051785 7380606901 51785 is a multi-stage process that combines material science, precision engineering, and rigorous quality control. Our commitment to ISO 9001 certified processes ensures that each seal meets the highest international standards for quality and reliability.

Manufacturing Process Steps:

• Material Selection and Sourcing: High-grade elastomer compounds (NBR, FKM, HNBR) are selected based on application requirements for temperature, chemical resistance, and wear. Steel alloys (e.g., carbon steel, stainless steel) are chosen for the metal casing and rotating sleeve for structural integrity and corrosion resistance. All raw materials are sourced from certified suppliers and undergo incoming quality inspection to ensure compliance with ASTM or DIN standards.
• Metal Component Fabrication (Casing & Sleeve):
  • Pressing/Deep Drawing: Steel sheets are precision-formed into the primary shapes of the outer casing and inner rotating sleeve.
  • CNC Machining: Critical dimensions, mounting features, and shaft interface surfaces are finely machined to tight tolerances (e.g., ISO 2768-1 fine) using advanced CNC equipment. This ensures perfect fitment and concentricity.
  • Surface Treatment: Components undergo phosphating, galvanizing, or other protective coatings to enhance corrosion resistance and provide a better bonding surface for elastomers.
• Elastomer Molding and Vulcanization:
  • Compound Preparation: Elastomer compounds are mixed with curing agents and other additives to achieve desired mechanical properties (hardness, tensile strength, elasticity).
  • Injection/Compression Molding: The prepared elastomer is precisely molded onto or within the metal components using high-pressure injection or compression molding. This forms the multi-lip sealing elements and secures them to the metal casing.
  • Vulcanization: The molded parts are subjected to controlled heat and pressure to cure the elastomer, creating a permanent bond with the metal and achieving the final material properties.
• Assembly of Cassette Unit: The various sub-components – the outer casing, inner rotating sleeve, and pre-formed elastomer elements – are precisely assembled. This step is critical to ensure the correct alignment of the sealing lips and the overall integrity of the labyrinth system. Automated assembly lines often employ vision systems for accuracy.
• Testing and Quality Assurance: Every batch of Cassette seal 15018014.5/16 hub oil seal 000051785 7380606901 51785 undergoes rigorous testing, adhering to international standards such as ISO 6194-1 (Rotary shaft lip type seals, nominal dimensions and tolerances), ANSI B92.1, and application-specific OEM requirements.
  • Dimensional Inspection: Using CMM (Coordinate Measuring Machines) to verify all critical dimensions.
  • Leakage Testing: Seals are subjected to dynamic pressure tests to ensure zero leakage under specified operating conditions.
  • Durability Testing: Accelerated life cycle tests simulate extreme operating conditions (temperature, speed, abrasive media) to predict actual service life and confirm performance integrity.
  • Material Hardness & Tensile Strength: Periodic checks on elastomer properties.
• Final Inspection and Packaging: Each seal is visually inspected for defects, cleaned, and then carefully packaged to prevent damage during transit and storage. Traceability is maintained through batch codes and serialization.

This meticulous process ensures that each Cassette seal 15018014.5/16 hub oil seal 000051785 7380606901 51785 delivered is of consistent, superior quality, ready for demanding industrial applications.

Application Scenarios and Target Industries

The robust design and superior sealing capabilities of the Cassette seal 15018014.5/16 hub oil seal 000051785 7380606901 51785 make it indispensable across a wide array of heavy industrial sectors. Its ability to perform reliably under harsh conditions, protect critical bearing systems, and extend operational lifespans translates into significant cost savings and improved productivity for our clients.

Primary Target Industries:

• Automotive (Heavy Duty): Essential for commercial vehicles, trucks, buses, and trailers. These seals protect wheel hubs, axles, and transmission systems from road grime, water ingress, and ensure optimal lubrication of wheel bearings, critical for safety and longevity.
• Agricultural Machinery: Tractors, combines, plows, and other farm equipment operate in extremely dirty and abrasive environments. Cassette seals are vital for protecting wheel hubs, gearboxes, and power take-off (PTO) units from soil, mud, fertilizers, and plant debris.
• Construction Equipment: Used in excavators, loaders, bulldozers, and dump trucks for wheel hubs, track rollers, and final drives. These applications demand high resistance to impact, vibration, and severe contamination.
• Mining and Quarrying: Heavy-duty vehicles and processing equipment in these sectors face extreme dust, rock particles, and harsh chemicals. The multi-lip design effectively protects critical bearing assemblies, preventing premature failure.
• Forestry and Material Handling: Equipment like forklifts, log skidders, and timber harvesters require robust seals to withstand rough terrain, wood chips, and varying weather conditions.

Typical Application Scenarios & Advantages:

In each of these scenarios, the cassette seal delivers specific advantages:

• Energy Saving: By maintaining a consistent, low-friction seal and preventing lubricant degradation, these seals contribute to reduced energy consumption in rotating equipment. Less friction means less heat generation and lower power loss.
• Corrosion Resistance: The use of specially treated steel for the casing and elastomer compounds with excellent chemical resistance ensures durability in corrosive environments, prolonging seal life and protecting adjacent components.
• Extended Bearing Life: By effectively isolating lubricants from contaminants, the seal directly extends the service life of expensive bearings, significantly reducing maintenance costs and unscheduled downtime.
• Simplified Installation: As a pre-assembled unit, the cassette seal eliminates the need for complex installation procedures or specialized shaft preparation, making replacement faster and less prone to errors.

Vendor Comparison and Market Positioning

Choosing the right supplier for a critical component like the Cassette seal 15018014.5/16 hub oil seal 000051785 7380606901 51785 involves evaluating not just product specifications, but also manufacturing expertise, quality control, technical support, and customization capabilities. While many manufacturers produce radial shaft seals, the specialized design of cassette seals requires a higher level of engineering precision and material science.

Competitive Advantages of Our Offering:

Our expertise is backed by certifications such as ISO 9001 for quality management and adherence to industry-specific standards like SAE for automotive components. We have partnered with leading OEMs in heavy-duty vehicles and agricultural machinery for over two decades, providing tailored sealing solutions that meet their rigorous performance benchmarks.

Customized Solutions and Application Case Studies

While standard dimensions like the Cassette seal 15018014.5/16 hub oil seal 000051785 7380606901 51785 serve a broad range of applications, many industrial scenarios demand highly specialized sealing solutions. We offer comprehensive customization capabilities to meet unique operational challenges, leveraging our extensive engineering expertise and advanced manufacturing facilities.

Customization Options:

• Material Variants: Beyond standard NBR, we provide seals in FKM (Viton) for higher temperature (up to 200°C) and chemical resistance, HNBR for improved abrasion resistance and higher temperatures than NBR, and specialty PTFE compounds for extreme friction reduction or chemical inertness.
• Dimension and Geometry Modifications: Tailoring ID, OD, and width to fit non-standard housing bores or shaft diameters, or modifying the number and profile of sealing lips for specific contamination or lubrication retention needs.
• Design Optimizations: Incorporating additional dust lips, specialized hydrodynamic features for enhanced lubricant return, or unique spring designs to maintain consistent lip load over time.
• Surface Treatments: Applying specific coatings to metal components for enhanced corrosion protection, or low-friction coatings to elastomer lips to reduce torque and heat generation.

Application Case Studies:

Our experience is validated by numerous successful implementations. Here are two examples:

Ensuring Trust: FAQ, Fulfillment, and Support

Building long-term partnerships in the B2B sector hinges on transparency, reliable logistics, and unwavering customer support. We are committed to providing a seamless experience from inquiry to after-sales service for our Cassette seal 15018014.5/16 hub oil seal 000051785 7380606901 51785 and other sealing solutions.

Frequently Asked Questions (FAQ):

• Q: What makes a cassette seal superior to a standard radial shaft seal?
  A: Cassette seals, like the Cassette seal 15018014.5/16 hub oil seal 000051785 7380606901 51785, feature an integrated design with multiple sealing lips and a rotating sleeve. This provides superior protection against external contamination, longer service life, and eliminates the need for a perfectly finished shaft surface, which is crucial in abrasive environments.
• Q: Can these seals operate in extreme temperatures?
  A: Yes, depending on the elastomer material. Our standard NBR seals operate from -40°C to +100°C. For applications requiring higher temperature resistance, we offer FKM (Fluoroelastomer) variants capable of handling up to +200°C, and HNBR for enhanced cold flexibility and higher abrasion resistance.
• Q: What is the typical lead time for an order?
  A: For standard items and stock quantities, lead time is typically 3-5 business days for dispatch. For larger custom orders or non-stock items, lead times range from 4-8 weeks, depending on material availability and production schedules. We strive to maintain optimal inventory levels for popular part numbers to facilitate quick turnaround.
• Q: What is your warranty policy?
  A: We offer a standard 12-month warranty on all our seals against manufacturing defects from the date of purchase. This warranty covers material and workmanship. For specific high-volume OEM agreements, extended warranty options may be available.
• Q: Do you provide technical support during installation?
  A: Absolutely. Our dedicated engineering team provides comprehensive technical support, including detailed installation guidelines, troubleshooting assistance, and application-specific advice. For complex projects or high-volume clients, on-site technical visits and training can be arranged.

Order Fulfillment and Logistics:

We maintain a robust global supply chain and logistics network to ensure timely delivery of our products. Our warehouses are strategically located, and we partner with reputable international carriers to provide efficient shipping options, including express and freight services, tailored to your urgent requirements or cost considerations. Each shipment is carefully packaged to prevent damage during transit.

After-Sales Support and Customer Service:

Our commitment extends beyond the point of sale. We provide continuous after-sales support, including performance monitoring, failure analysis, and proactive recommendations for optimal seal performance. Our customer service team is available via phone, email, and a dedicated online portal to address inquiries, process returns, and facilitate any technical assistance required. We believe in being a responsive and reliable partner throughout the entire lifecycle of our sealing solutions.

Conclusion

The Cassette seal 15018014.5/16 hub oil seal 000051785 7380606901 51785 represents a pinnacle of sealing technology, offering unparalleled protection and longevity in the most arduous industrial environments. Its sophisticated multi-lip design, coupled with an integrated rotating sleeve, delivers superior contaminant exclusion and lubricant retention, directly translating to extended bearing life, reduced maintenance intervals, and a lower total cost of ownership for machinery operators.

From the precision of its manufacturing process, adhering to stringent ISO and ANSI standards, to its proven performance in heavy-duty automotive, agricultural, and construction equipment, this cassette seal is engineered for excellence. Our commitment to expertise, experience, authoritativeness, and trustworthiness ensures that every client receives not just a product, but a comprehensive sealing solution backed by extensive technical support and a dedication to long-term reliability. Partner with us to optimize your operational efficiency and secure the longevity of your critical assets with our advanced sealing technologies.

References

• 1. International Organization for Standardization. (2018). ISO 6194-1: Rotary shaft lip type seals, nominal dimensions and tolerances.
• 2. Society of Automotive Engineers. (2017). SAE J1201: Heavy Duty Hub Seals.
• 3. ASTM International. (2020). ASTM D2000: Standard Classification System for Rubber Products in Automotive Applications.
• 4. Fraunhofer Institute for LBF. (2019). Research on Sealing Technology in Commercial Vehicles for Enhanced Durability.
• 5. SKF Group. (2021). Sealing Solutions Handbook, Cassette Seals Section.
