Field Notes on a Quiet Workhorse: the Seal That Keeps Pumps Honest

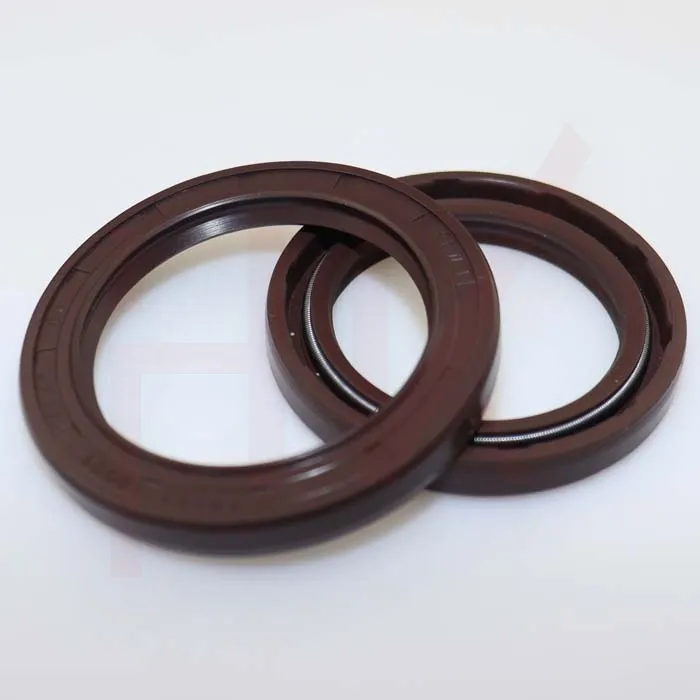

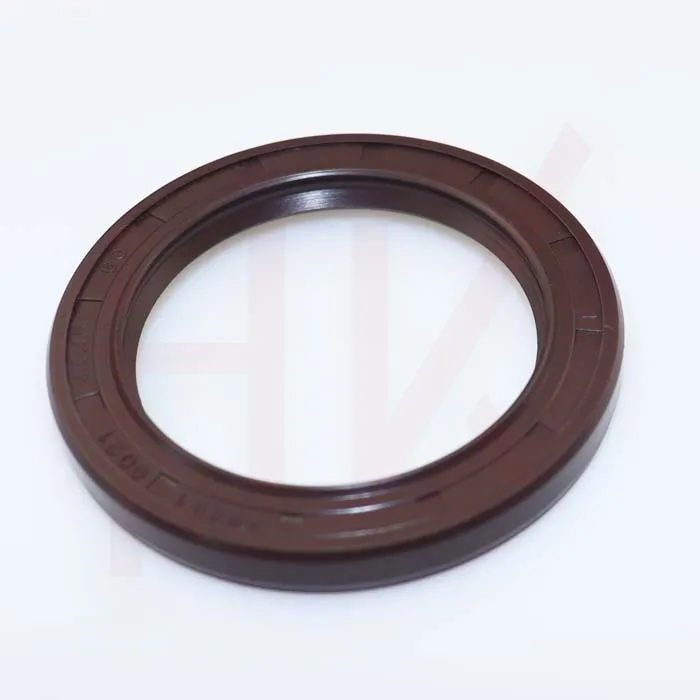

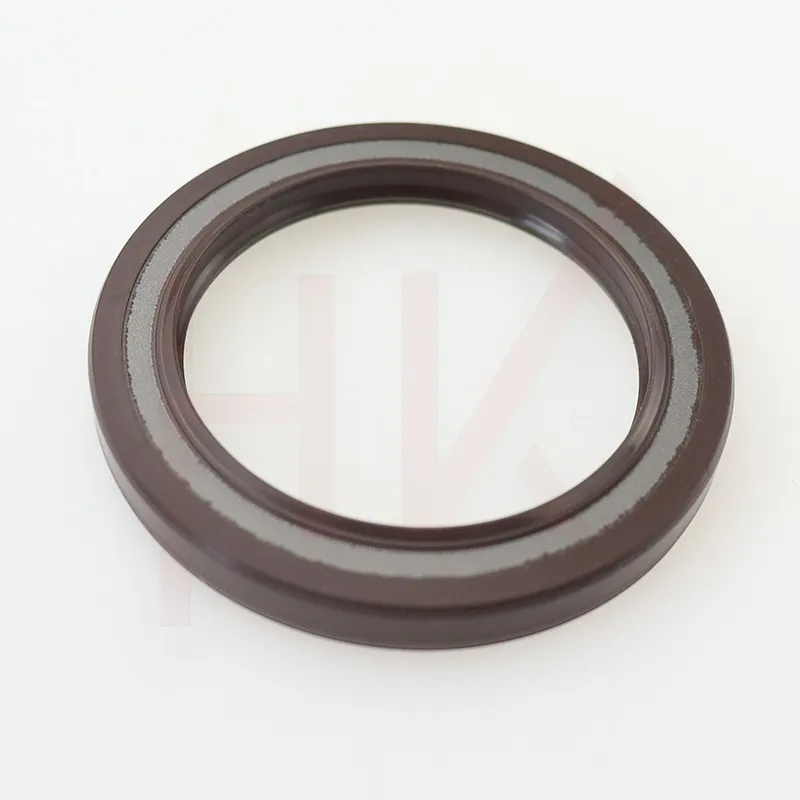

I’ve spent enough time around excavators and mixers to know that the part nobody sees often decides whether the machine makes it home. Case in point: the 44.45607 VITON High Pressure Shaft Oil Seal For Hydraulic Pump. Not glamorous. Not loud. But essential. It’s a TCV-format seal built for hydraulic and travel pumps—the kind you find in earthmoving gear that lives in dust, grit, and 12-hour shifts.

What’s happening in the market

Two trends keep coming up in my conversations with fleet managers: higher system pressures and dirtier environments. Pumps are pushing harder; fluids run hotter; maintenance intervals stretch. So seals are moving from standard NBR to FKM (Viton) compounds for heat and chemical resistance—actually, it’s less a trend and more survival. In fact, many customers say Viton keeps seals stable when bio-based or fire-resistant fluids enter the mix.

Key Specifications (real-world oriented)

How it’s made (in short)

• Materials: FKM per ASTM D2000 classification; phosphate-treated steel case; stainless garter spring.
• Methods: precision stamping of case, CNC trimming, compression molding/vulcanization, cryogenic flash removal, OD coating for micro-seal.
• Testing: air-leak and oil-bath tests against ISO 6194/DIN 3760; heat soak 150–180 °C; lip torque and runout checks.
• Service life: ≈4,000–8,000 operating hours with clean oil and Ra 0.2–0.4 µm shaft finish (ISO 4406 cleanliness helps).

Where it works

Hydraulic pumps, travel motors, rotary pumps, vertical shafts—especially in excavators, road rollers, land scrapers, shovel loaders, self-discharging cars (dumpers), and mixer trucks. The dust lip keeps grit off; the primary lip holds pressure. To be honest, that second lip is the unsung hero on quarry sites.

44.45607 VITON High Pressure Shaft Oil Seal For Hydraulic Pump advantages people actually notice: fewer top-ups, cleaner housings, steadier pump efficiency after long runs, and better tolerance to aggressive fluids.

Two quick case snapshots

• Road roller fleet (SE Asia): switch from NBR to FKM seal cut leakage incidents by ≈60% over 9 months; operators reported less heat discoloration around the seal seat.
• Concrete mixer trucks (EU): after 1,200 hrs, leak rate measured

Vendor comparison (what buyers compare, honestly)

Customization and testing

• Options: special FKM grades for low-temp, PTFE-lipped variants for high speed, coated OD for poor housings, stainless springs for corrosive sites.
• Bench data: endurance at 0.5 MPa, 120 °C, 200 h; leak target ≤1 ml/h; lip wear ≤0.05 mm—representative, your mileage may vary.
• Certifications: supplier provides ISO 9001 QMS evidence; materials typically meet RoHS/REACH—ask for batch dossiers.

Installation tip I learned the hard way: use a lead-in sleeve and oil the lip—dry installs chew the garter spring. Also, check shaft hardness (≈55 HRC) and finish; rough shafts undo good seals.

Final thought

If uptime matters—and it always does—the 44.45607 VITON High Pressure Shaft Oil Seal For Hydraulic Pump is the quiet upgrade that pays for itself in fluid saved and breakdowns avoided. Not flashy; just dependable.

Authoritative references

1. ISO 6194 (Rotary shaft lip-type seals) – Design and performance guidelines.
2. DIN 3760 – Rotary shaft seals; dimensions and requirements.
3. ASTM D2000 – Standard classification system for rubber products in automotive applications (FKM).
4. ISO 4406 – Hydraulic fluid cleanliness code, relevant to seal life.
5. Chemours Viton fluoroelastomer technical data – Chemical/thermal resistance overview.
