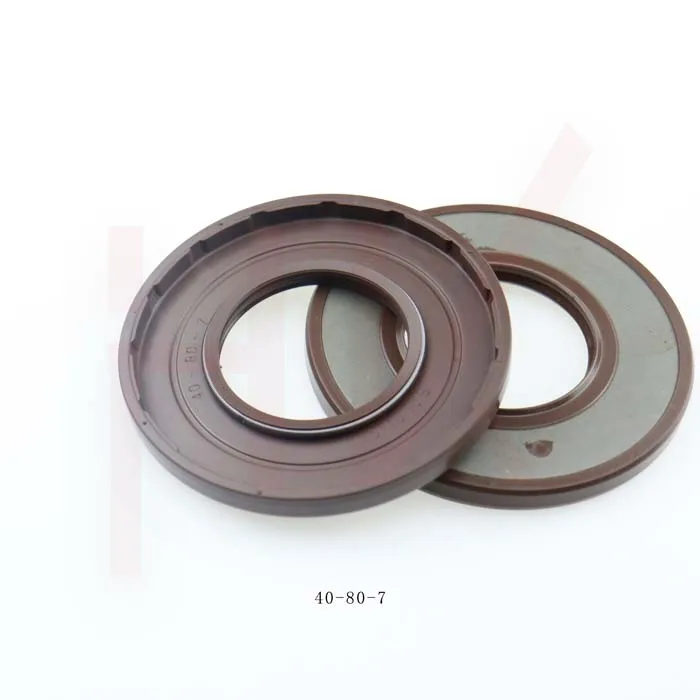

40×80×7 Tcv Oil Seal High Pressure Oil Seal Cfw Babsl 40807 for Hydraulic Pump Seal

Short Description:

TCV oil seal application to sealing for hydraulic pump, travel pump, rotary pump, vertical shaft. especially is hydraulic pump / motors, those pumps usually are used in earth moving machinery like: excavator、road roller、land scraper, shovel loader, self-discharging car, mixer truck other.

Send email to us Download as PDF

Product Detail

Product Tags

PRODUCT DETAILS

Product Name	High Pressure TCV Oil Seal
Material	NBR, FKM/FPM, Rubber(Has Metal Ring)
Application	Pressure Resistance
Color	Blue / Brown
Place Of Origin	Hebei
Feature	High Pressure Resistance(0.98MPa)
Type	High Pressure Oil Seal
Standard or Nonstandard	Standard or Customized
MOQ	20pcs

SIZE CATALOG

No	Size	No.	Size
1	13X26X7	63	42X62X7
2	15X32X7	64	45X62X7
3	18X30X6	65	48X62X7
4	18X30X10	66	45X65X7
5	18X32X6	67	45X65X8
6	18X32X7	68	50X65X7
7	19X32X8	69	52X68X10
8	20X32X6	70	50X68.5X9
9	25X33X6	71	45X70X7
10	17X35X8	72	50X70X7
11	18X35X6	73	50X70X10
12	18X35X8	74	55X70X7
13	19X35X8	75	32X72X7
14	22X35X6	76	50X72X7
15	24X35X6	77	52X72X7
16	25X35X6	78	55X72X7
17	25X35X7	79	38X73X9
18	22X36X7	80	55X75X7
19	22X36X10	81	60X75X8
20	25X37X6	82	55X78X8
21	25X38X7	83	45X80X7
22	20X40X7	84	45X80X8
23	25X40X6	85	50X80X8
24	25X40X10	86	55X80X8
25	28X40X6	87	55X80X10
26	30X40X7	88	60X80X7
27	22X42X10	89	65X80X7
28	25X42X6	90	65X80X10
29	25X42X10	91	60X82X7
30	28X42X6	92	60X85X8
31	30X42X6	93	62X85X7
32	32X42X6	94	65X85X7
33	35X45X6	95	65X85X10
34	25X47X6	96	65X90X7
35	25X47X7	97	65X90X10
36	32X47X6	98	70X90X7
37	35X47X6	99	75X95X7
38	30X50X7	100	70X90X10
39	30X50X10	101	75X95X 10
40	35X50X7	102	80X95X6
41	38X50X6	103	90X110X7.5
42	30X52X7	104	95X115X12
43	30X52X10	105	100X115X9
44	32X52X6	106	85X120X12
45	32X52X7	107	100X120X12
46	35X52X6	108	110X120X12
47	35X52X7	109	95X140X7
48	35X52X10	110	115X140X12
49	40X52X7	111	120X140X12
50	32X53X7	112	120X150X12/8
51	35X55X7	113	125X150X12
52	35X55X10	114	130X160X12
53	40X55X6	115	140X160X12
54	40X55X7	116	140X160X8
55	40X55X10	117	150X164X8
56	45X58X7	118	140X165X13/16
57	35X60X10	119	148X170X10/14
58	45X60X7	120	145X175X13
59	40X62X6	121	165X190X13
60	40X62X7	122	170X190X13
61	40X62X8	123	170X200X15
62	42X62X6	124	185X205X10/8.5
*Other* *sizes* *can be customized*
